Canon imagePROGRAF IPF720 User Manual

Handling rolls

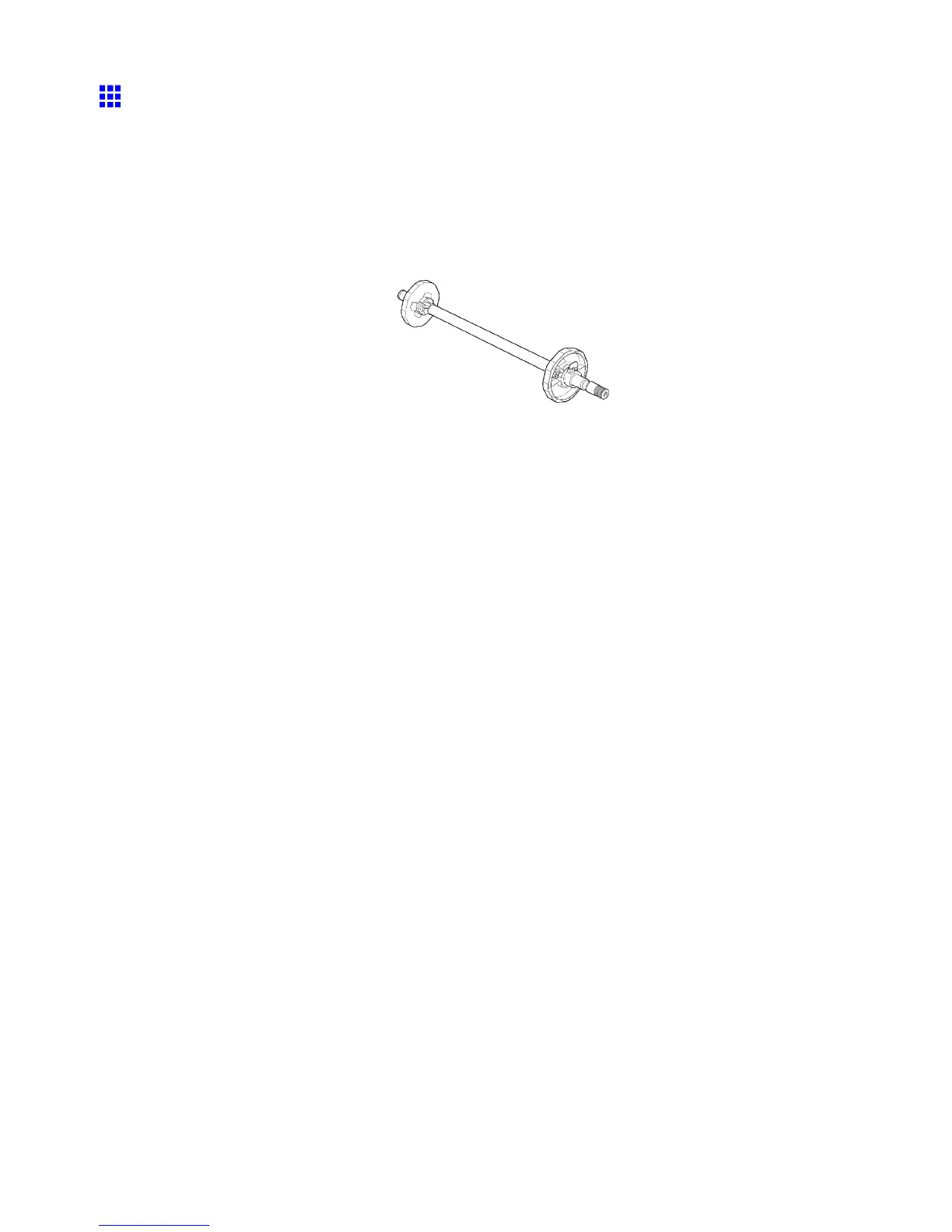

Roll Holder Set
A set of parts comprising the Roll Holder , Holder Stopper , 2-Inch Paper Core Attachment , and 3-Inch Paper
Core Attachment .
T o load a roll with a 3-inch paper core, remove the 2-Inch Paper Core Attachment from the Holder Stopper
and then attach the 3-Inch Paper Core Attachment on both the Roll Holder and Holder Stopper .
T o load a roll with a 2-inch paper core, remove the 3-Inch Paper Core Attachment from both the Roll Holder
and Holder Stopper and then attach the 2-Inch Paper Core Attachment on the Holder Stopper . ( → P .129)
• Roll Holder Set RH4-32 (for 2- and 3-inch paper cores)
128 Handling Paper

Canon imagePROGRAF IPF720 Specifications

Operating Environment

temperature range	59 – 86 F° (15 – 30 C°)
relative humidity	10 – 80% (No Condensation)
acoustic noise operation	52dB (A) or Less

Print Specifications

print resolution max	2400 x 1200 dpi
line accuracy	±0.1% or Less
minimum line weight	0.02mm

Ink and Print-Head

number of nozzles matte black	5, 120 Nozzles
number of nozzles other colors	2, 560 Nozzles per Color
droplet size	4 Picoliter

Media Handling

media width roll feed	10" – 36" (254mm – 914.4mm)
cut sheet width	8" – 36" (203.2mm – 914.4mm)
maximum print length roll feed	59' (18m)

Power

power supply	AC 100–240V (50-60Hz)
power consumption maximum	140W or Less
power off consumption	1W or Less

Weight and Dimensions

printer dimensions	43.1" x 59.3" x 34.3"
dimensions in mm	1507mm x 871mm x 1094mm
weight with stand	Approx. 141 lb (64kg)
