Handling rolls

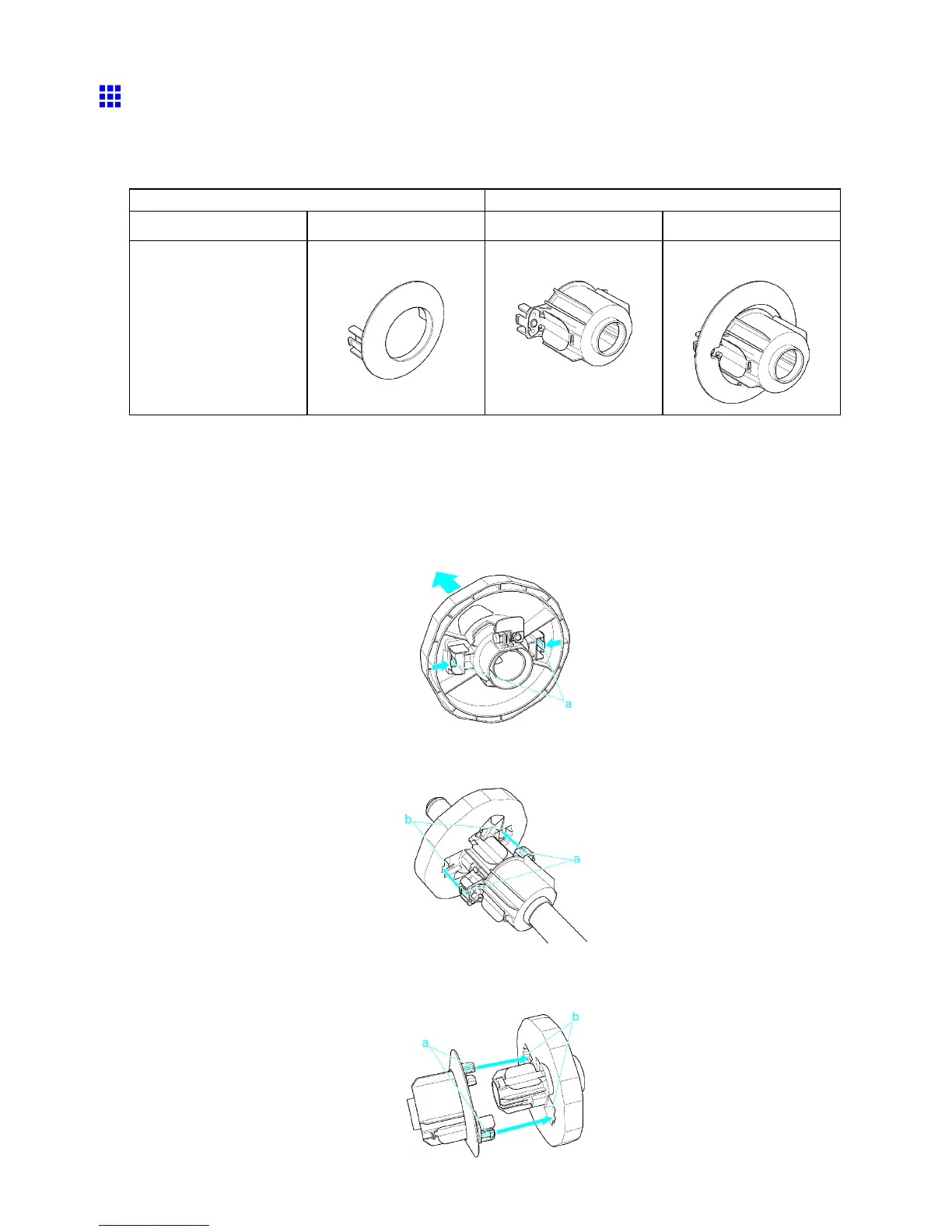

Attaching Accessories to the Roll Holder
The following attachments are provided with the Roll Holder . Use the attachment that matches the size of
the paper core of the roll you will use. The printer is delivered with the 2-Inch Paper Core Attachment on
the Roll Holder .
Using the 2-Inch Paper Core Attachment Using the 3-Inch Paper Core Attachment
Roll Holder Side Holder Stopper Side Roll Holder Side Holder Stopper Side
No Attachment Needed 2-Inch Paper Core
Attachment
3-Inch Paper Core
Attachment #1
3-Inch Paper Core
Attachment #2
Installing the 3-Inch Paper Core Attachment
When loading a roll with a 3-inch paper core, remove the 2-Inch Paper Core Attachment from the Holder
Stopper and then attach the 3-Inch Paper Core Attachment on both the Roll Holder and Holder Stopper .
1. Push the tips (a) of the 2-Inch Paper Core Attachment in and remove the 2-Inch Paper Core
Attachment from the Holder Stopper .
2. Align the tips (a) of 3-Inch Paper Core Attachment #1 with the holes (b) of the Roll Holder and
insert it rmly .
3. Align the tips (a) of 3-Inch Paper Core Attachment #2 with the holes (b) of the Holder Stopper
and insert it rmly .
Handling Paper 129
