Canon imagePROGRAF IPF720 User Manual

Hard Disk

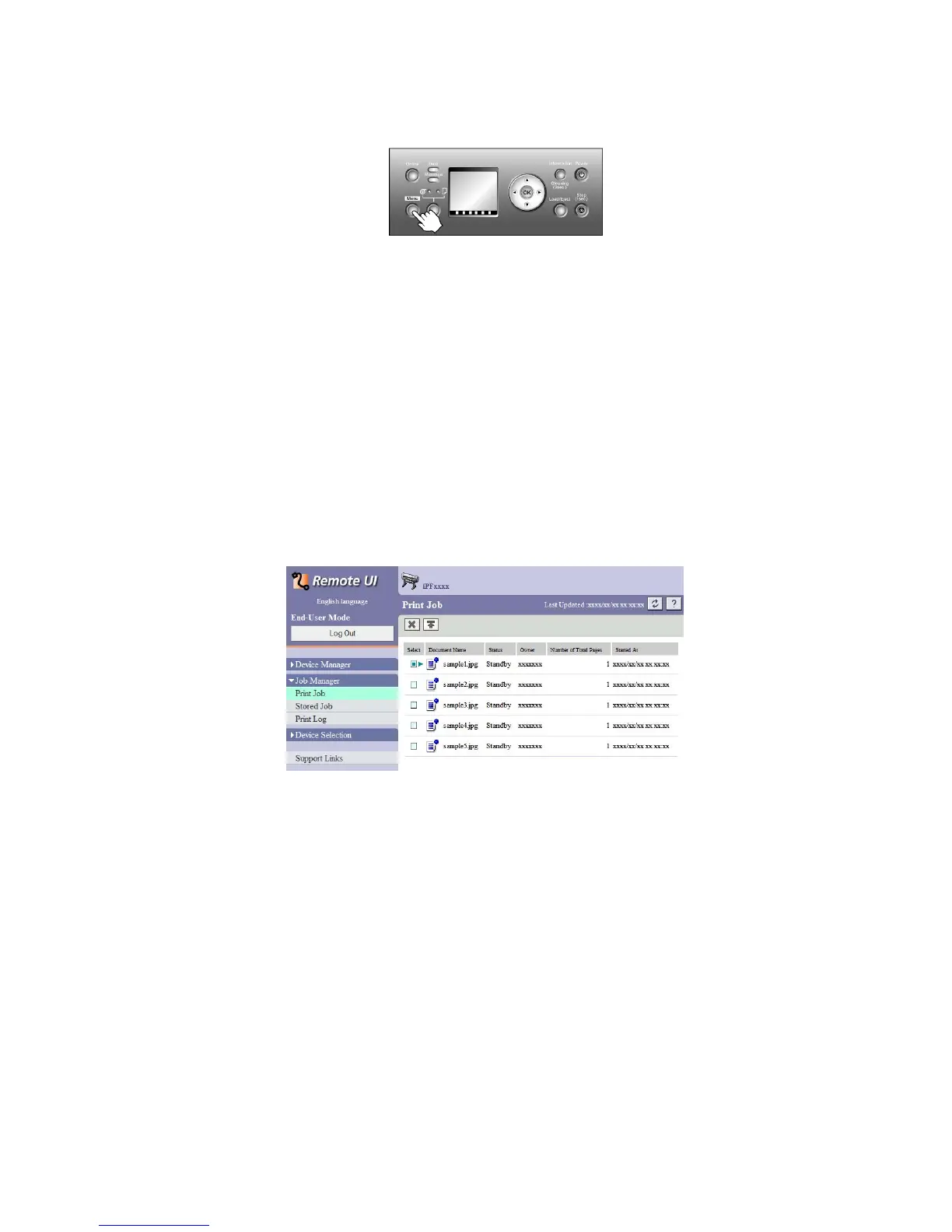

Using the Control Panel
1. Press the Menu button to display Menu Durng Prtng .
2. Y ou can manage queued jobs as follows.
• Deleting queued jobs
1. Press ▲ or ▼ to select Job Mgmt Menu , and then press the OK button.
2. Press ▲ or ▼ to select Job Queue Ope. , and then press the ► button.
3. Press ▲ or ▼ to select the print job to delete, and then press the ► button.
4. Press ▲ or ▼ to select Delete , and then press the OK button.
• Changing the order of printing
1. Press ▲ or ▼ to select Job Mgmt Menu , and then press the OK button.
2. Press ▲ or ▼ to select Job Queue Ope. , and then press the ► button.
3. Press ▲ or ▼ to select the job to print rst, and then press the ► button.
4. Press ▲ or ▼ to select Priority , and then press the OK button.
Using RemoteUI
On the Print Job page, select the job to manage and how to manage it. For details, refer to the RemoteUI help.
450 Hard Disk

Canon imagePROGRAF IPF720 Specifications

Operating Environment

temperature range	59 – 86 F° (15 – 30 C°)
relative humidity	10 – 80% (No Condensation)
acoustic noise operation	52dB (A) or Less

Print Specifications

print resolution max	2400 x 1200 dpi
line accuracy	±0.1% or Less
minimum line weight	0.02mm

Ink and Print-Head

number of nozzles matte black	5, 120 Nozzles
number of nozzles other colors	2, 560 Nozzles per Color
droplet size	4 Picoliter

Media Handling

media width roll feed	10" – 36" (254mm – 914.4mm)
cut sheet width	8" – 36" (203.2mm – 914.4mm)
maximum print length roll feed	59' (18m)

Power

power supply	AC 100–240V (50-60Hz)
power consumption maximum	140W or Less
power off consumption	1W or Less

Weight and Dimensions

printer dimensions	43.1" x 59.3" x 34.3"
dimensions in mm	1507mm x 871mm x 1094mm
weight with stand	Approx. 141 lb (64kg)
