Canon imagePROGRAF IPF720 User Manual

Printer parts
Printer Parts
Printer parts

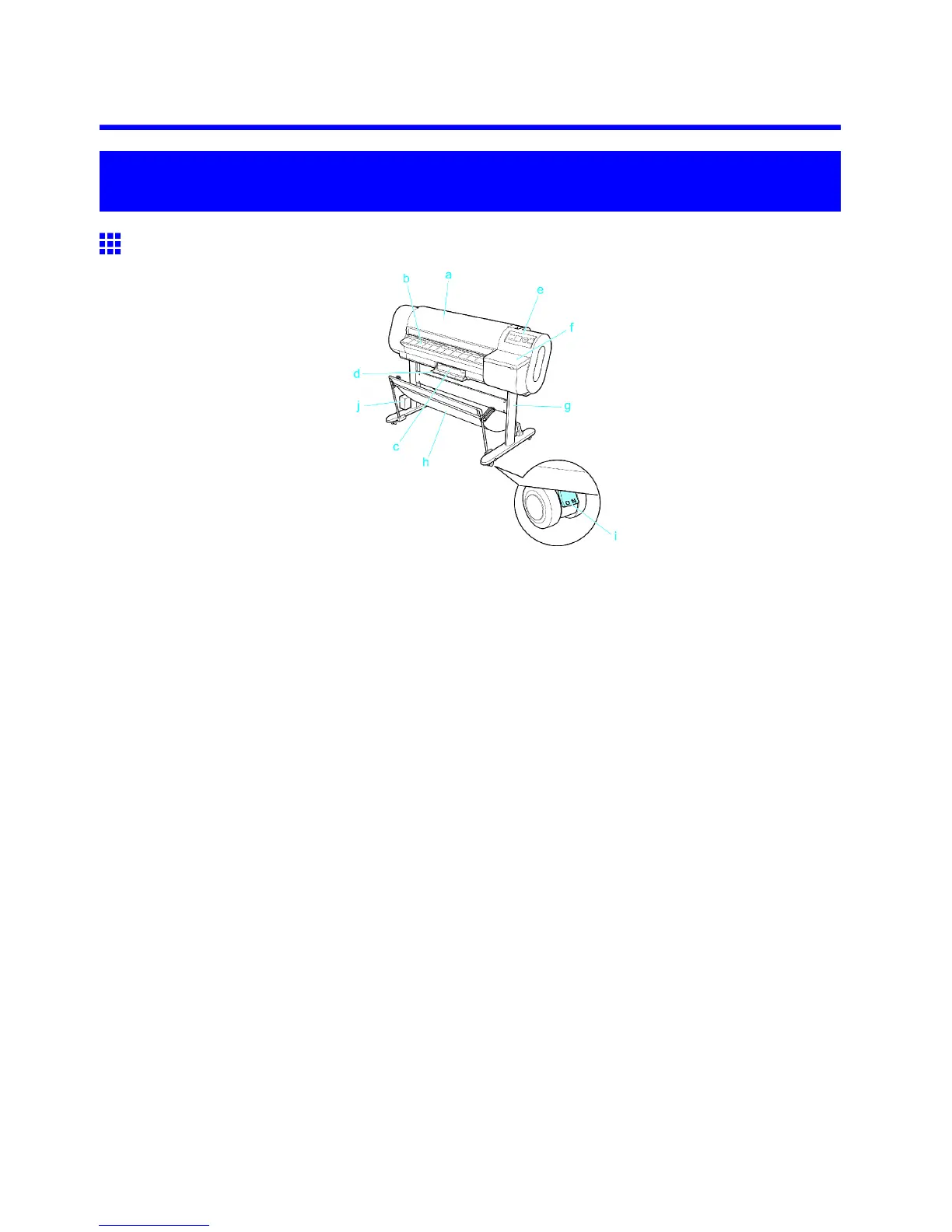

Front
a. T op Cover
Open this cover to install the Printhead , load paper , and remove any jammed paper from inside the
printer as needed. ( → P .15)
b. Ejection Guide
Supports paper as it is ejected to prevent it from rising.
c. Maintenance Cartridge
Ink used for maintenance purposes such as head cleaning is absorbed. (Replace the cartridge
when it is full.)
d. Maintenance Cartridge Cover
Open this cover to replace the Maintenance Cartridge .
e. Control Panel
Use this panel to operate the printer and check the printer status. ( → P .18)
f. Ink T ank Cover
Open this cover to replace an Ink T ank . ( → P .17)
g. Stand
A stand that holds the printer . Equipped with casters to facilitate moving the printer .
h. Output Stacker
A cloth tray that catches ejected documents.
i. Stopper
Locks the Stand casters.
Always release the Stopper before moving the printer . Moving the printer while the Stopper is locked
may scratch the casters or the oor .
j. Accessory Box
For storing printer accessories.
Printer Parts 13

Canon imagePROGRAF IPF720 Specifications

Operating Environment

temperature range	59 – 86 F° (15 – 30 C°)
relative humidity	10 – 80% (No Condensation)
acoustic noise operation	52dB (A) or Less

Print Specifications

print resolution max	2400 x 1200 dpi
line accuracy	±0.1% or Less
minimum line weight	0.02mm

Ink and Print-Head

number of nozzles matte black	5, 120 Nozzles
number of nozzles other colors	2, 560 Nozzles per Color
droplet size	4 Picoliter

Media Handling

media width roll feed	10" – 36" (254mm – 914.4mm)
cut sheet width	8" – 36" (203.2mm – 914.4mm)
maximum print length roll feed	59' (18m)

Power

power supply	AC 100–240V (50-60Hz)
power consumption maximum	140W or Less
power off consumption	1W or Less

Weight and Dimensions

printer dimensions	43.1" x 59.3" x 34.3"
dimensions in mm	1507mm x 871mm x 1094mm
weight with stand	Approx. 141 lb (64kg)
