Canon imagePROGRAF IPF720 User Manual

Hard Disk
Using the printer driver (Mac OS X)

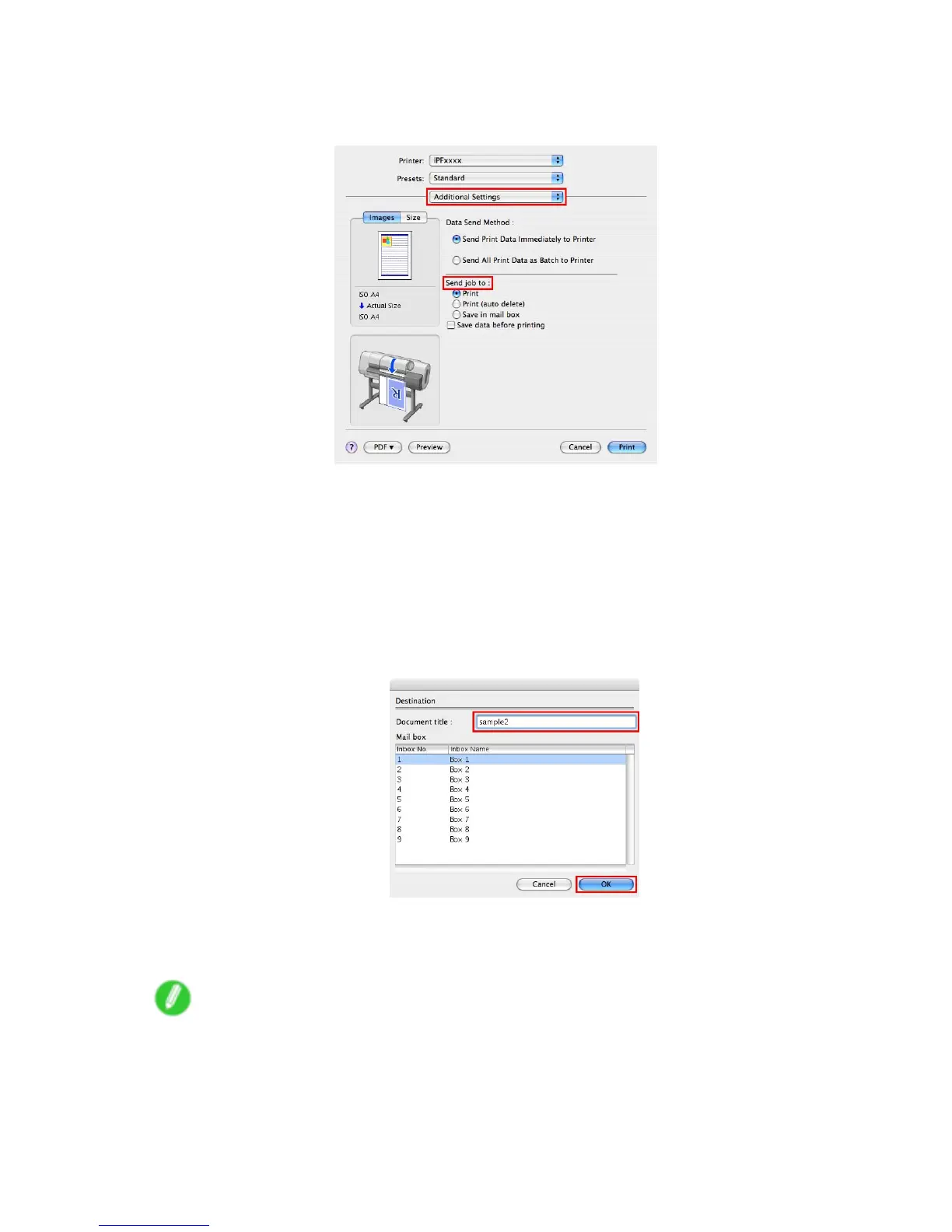

1. Access the Additional Settings pane.
2. Choose an Send job to .
• Print
Save print jobs automatically at the same time they are printed.
• Print (auto delete)
Save print jobs temporarily at the same time they are printed and delete them after printing.
• Save in mail box
Save print jobs on the printer without printing them.
The Destination dialog box is displayed if you select Save in mail box . Here, specify the name
and Personal Box number for saved print jobs.
1. In Document title , enter a name to identify saved print jobs.
2. Select the Personal Box number in the Mail box list.
3. Click OK to close the Destination dialog box.
Note
• Save data before printing
This option is available in combination with Print , Print (auto delete) , and Save in mail box . Print
jobs are saved on the hard disk and then printed.
Hard Disk 447

Canon imagePROGRAF IPF720 Specifications

Operating Environment

temperature range	59 – 86 F° (15 – 30 C°)
relative humidity	10 – 80% (No Condensation)
acoustic noise operation	52dB (A) or Less

Print Specifications

print resolution max	2400 x 1200 dpi
line accuracy	±0.1% or Less
minimum line weight	0.02mm

Ink and Print-Head

number of nozzles matte black	5, 120 Nozzles
number of nozzles other colors	2, 560 Nozzles per Color
droplet size	4 Picoliter

Media Handling

media width roll feed	10" – 36" (254mm – 914.4mm)
cut sheet width	8" – 36" (203.2mm – 914.4mm)
maximum print length roll feed	59' (18m)

Power

power supply	AC 100–240V (50-60Hz)
power consumption maximum	140W or Less
power off consumption	1W or Less

Weight and Dimensions

printer dimensions	43.1" x 59.3" x 34.3"
dimensions in mm	1507mm x 871mm x 1094mm
weight with stand	Approx. 141 lb (64kg)
