Canon imagePROGRAF IPF720 User Manual

Printing CAD Drawings
Specifying Colors and Printing CAD Drawings (W indows)
Y ou can complete color settings when Color (CAD) is selected in Color Mode .
Note
• Color (CAD) is displayed when you select Advanced Settings on the Main sheet and set Print
Priority to Line Drawing/T ext .

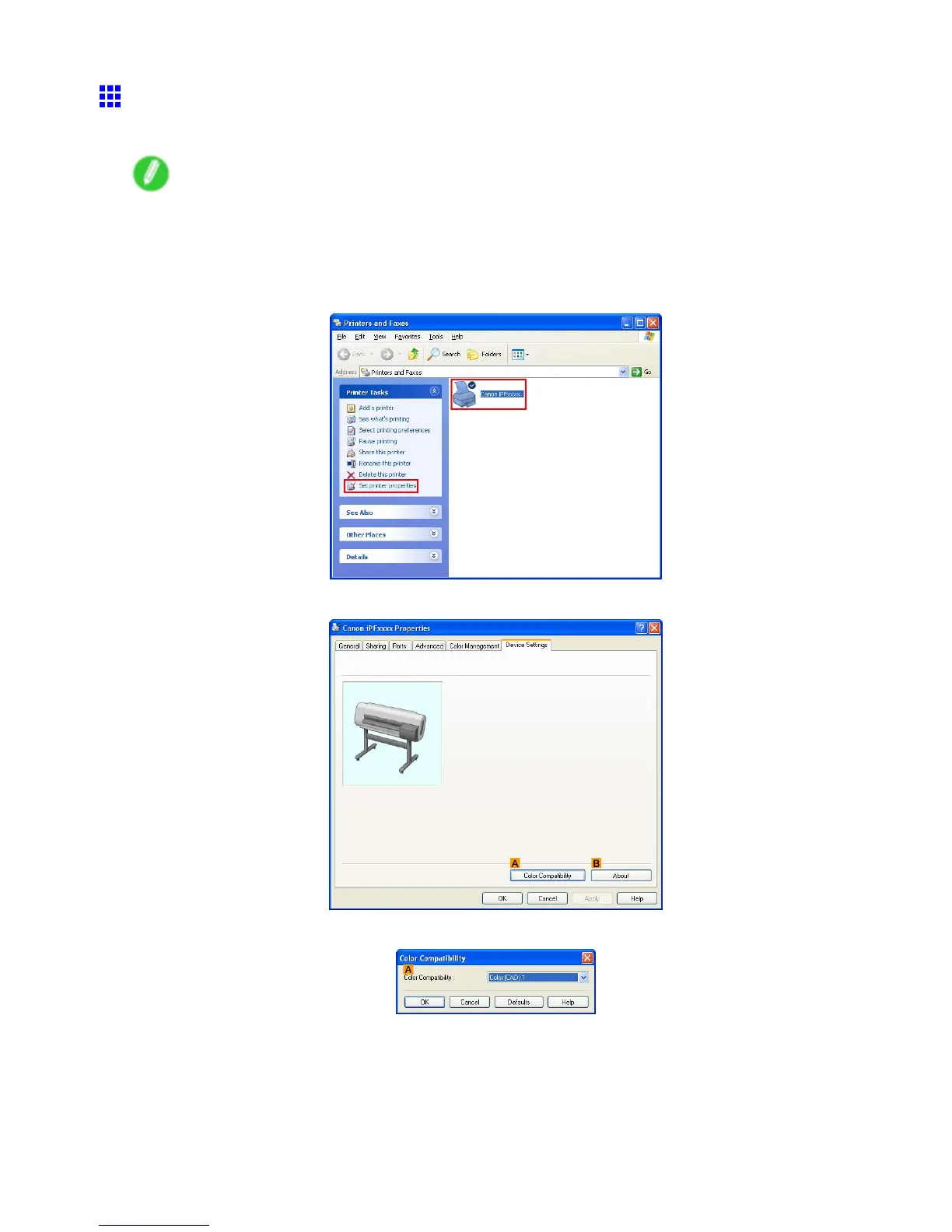

1. Click start > Printers and Faxes (or Printers ).
2. Select the printer , and then display the printer properties dialog box.
3. Click the Device Settings tab to display the Device Settings sheet.
4. Click A Color Compatibility to display the Color Compatibility dialog box.
160 W orking With V arious Print Jobs

Canon imagePROGRAF IPF720 Specifications

Operating Environment

temperature range	59 – 86 F° (15 – 30 C°)
relative humidity	10 – 80% (No Condensation)
acoustic noise operation	52dB (A) or Less

Print Specifications

print resolution max	2400 x 1200 dpi
line accuracy	±0.1% or Less
minimum line weight	0.02mm

Ink and Print-Head

number of nozzles matte black	5, 120 Nozzles
number of nozzles other colors	2, 560 Nozzles per Color
droplet size	4 Picoliter

Media Handling

media width roll feed	10" – 36" (254mm – 914.4mm)
cut sheet width	8" – 36" (203.2mm – 914.4mm)
maximum print length roll feed	59' (18m)

Power

power supply	AC 100–240V (50-60Hz)
power consumption maximum	140W or Less
power off consumption	1W or Less

Weight and Dimensions

printer dimensions	43.1" x 59.3" x 34.3"
dimensions in mm	1507mm x 871mm x 1094mm
weight with stand	Approx. 141 lb (64kg)
