Canon imagePROGRAF IPF720 User Manual

Ink T anks
When to Replace Ink T anks
Replace or prepare to replace Ink T ank in the following situations.

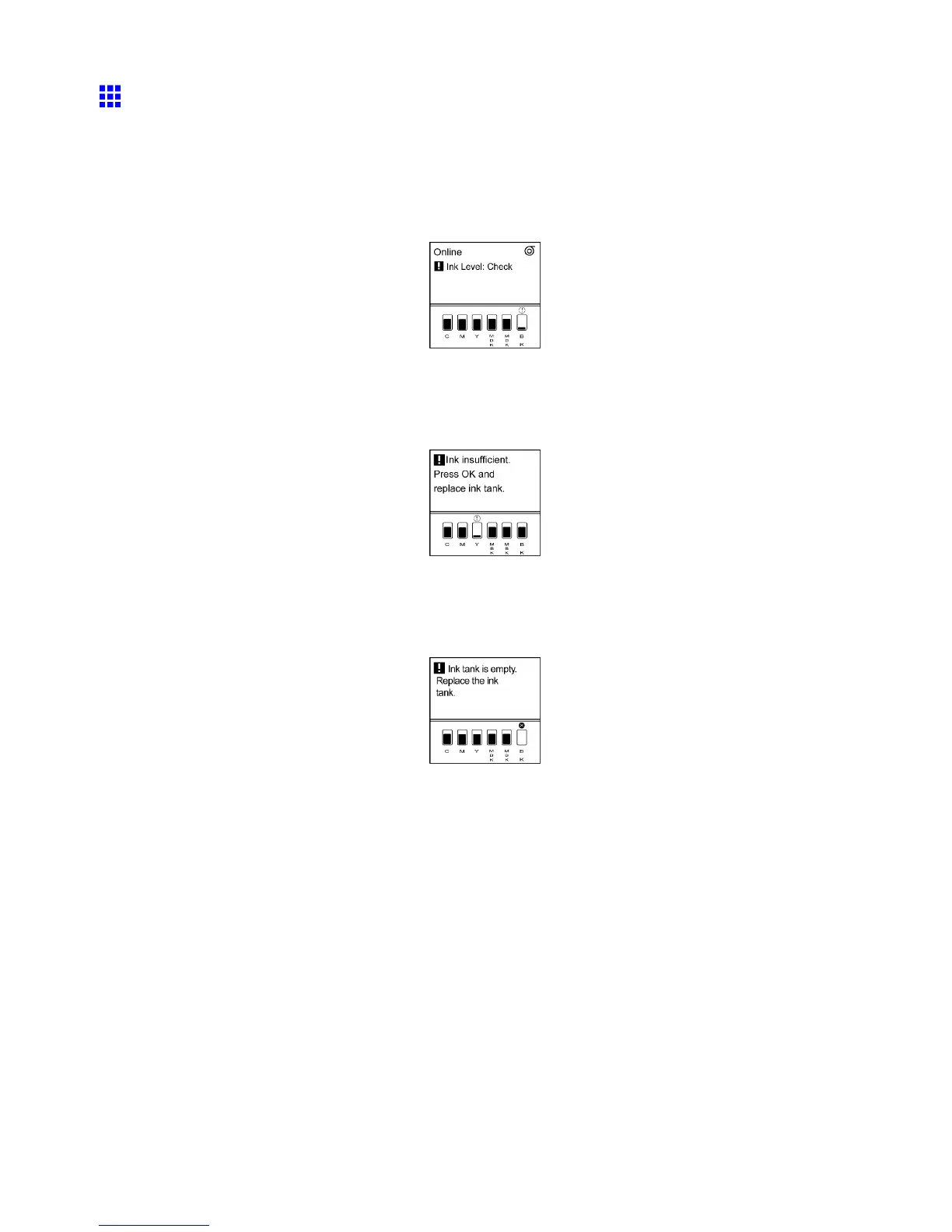

If a message for checking the ink is shown on the Display Screen
When there is little ink left, the Message lamp is lit and Ink Level: Check is shown on the Display Screen .
Y ou can continue to print, but prepare to replace the Ink T ank . ( → P .513)
Before print jobs and maintenance that consume a lot of ink
If little ink is left, there may not be enough for large-format printing, head cleaning, and maintenance, which
require a lot of ink. In this case, replace or prepare to replace the Ink T ank before maintenance.
If a message for ink replacement is shown on the Display Screen
When ink runs out, the Message lamp ashes, a message regarding Ink T ank replacement is shown on the
Display Screen , and printing is disabled. Replace the Ink T ank at this point.
514 Maintenance

Canon imagePROGRAF IPF720 Specifications

Operating Environment

temperature range	59 – 86 F° (15 – 30 C°)
relative humidity	10 – 80% (No Condensation)
acoustic noise operation	52dB (A) or Less

Print Specifications

print resolution max	2400 x 1200 dpi
line accuracy	±0.1% or Less
minimum line weight	0.02mm

Ink and Print-Head

number of nozzles matte black	5, 120 Nozzles
number of nozzles other colors	2, 560 Nozzles per Color
droplet size	4 Picoliter

Media Handling

media width roll feed	10" – 36" (254mm – 914.4mm)
cut sheet width	8" – 36" (203.2mm – 914.4mm)
maximum print length roll feed	59' (18m)

Power

power supply	AC 100–240V (50-60Hz)
power consumption maximum	140W or Less
power off consumption	1W or Less

Weight and Dimensions

printer dimensions	43.1" x 59.3" x 34.3"
dimensions in mm	1507mm x 871mm x 1094mm
weight with stand	Approx. 141 lb (64kg)
