Canon imagePROGRAF IPF720 User Manual

Printing CAD Drawings
Printing Line Drawings and T ext (W indows)
Printing is easy when you simply choose the type of original to print.
Easy Settings
Simply choose the printing application in the list for optimal printing results.
Print T arget
Choose presets that match the type of document to be printed.

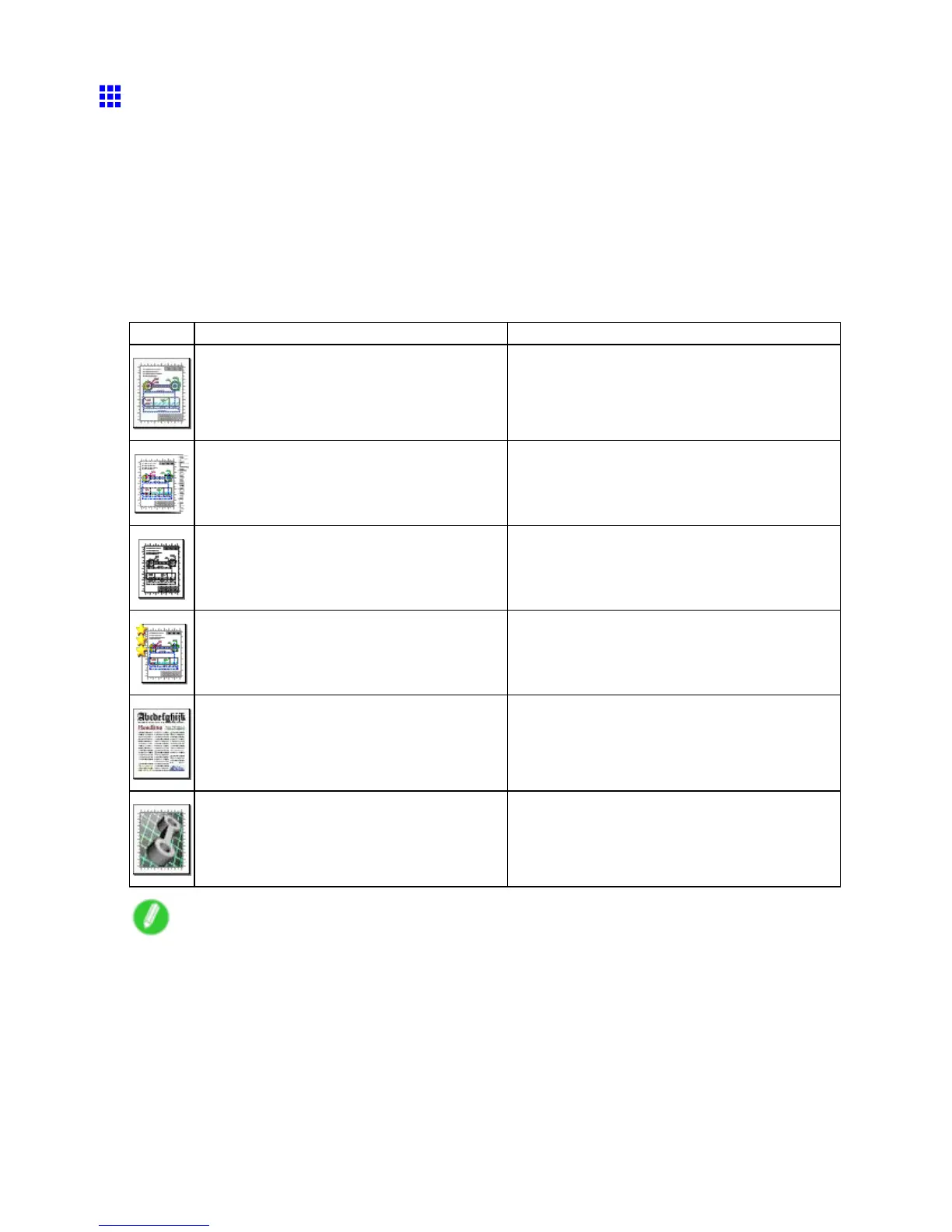

Print targets for line drawings and text
Print T arget
Description
CAD (Line Drawing) Settings optimized to print intricate lines in CAD
drawings clearly .
CAD (Fast) Settings optimized for fast printing of CAD
drawings.
CAD (Monochrome Line Drawing )
(Windows)
CAD (B/W Line Drawing) (Mac OS 9)
Settings optimized to print black lines in CAD
drawings clearly .
CAD (High Accuracy) Settings optimized for attractive printing of highly
precise documents such as CAD drawings with
smooth lines and small text.
Poster (Notice Announcement) Settings optimized for printing announcements
such as wall newspapers and other notices with
a large amount of text.
3D/GIS Map Settings optimized for printing 3D CAD drawings,
perspective drawings, and maps, including GIS
maps.
Note
• Y ou can check the settings values for each print target by clicking V iew Settings .
• Y ou can also ne-tune these values as needed. ( Advanced Settings )
For details on Advanced Settings , see “Giving Priority to Particular Graphic Elements and Colors
for Printing”. (→P .180)
For instructions on printing line drawings and text, refer to the following topics, as appropriate for your
computer and operating system.
• Printing Line Drawings and T ext (Windows) (→P .154)
152 W orking With V arious Print Jobs

Canon imagePROGRAF IPF720 Specifications

Operating Environment

temperature range	59 – 86 F° (15 – 30 C°)
relative humidity	10 – 80% (No Condensation)
acoustic noise operation	52dB (A) or Less

Print Specifications

print resolution max	2400 x 1200 dpi
line accuracy	±0.1% or Less
minimum line weight	0.02mm

Ink and Print-Head

number of nozzles matte black	5, 120 Nozzles
number of nozzles other colors	2, 560 Nozzles per Color
droplet size	4 Picoliter

Media Handling

media width roll feed	10" – 36" (254mm – 914.4mm)
cut sheet width	8" – 36" (203.2mm – 914.4mm)
maximum print length roll feed	59' (18m)

Power

power supply	AC 100–240V (50-60Hz)
power consumption maximum	140W or Less
power off consumption	1W or Less

Weight and Dimensions

printer dimensions	43.1" x 59.3" x 34.3"
dimensions in mm	1507mm x 871mm x 1094mm
weight with stand	Approx. 141 lb (64kg)
