Canon imagePROGRAF IPF720 User Manual

Maintenance Cartridge
Checking the Remaining Maintenance Cartridge Capacity
The Maintenance Cartridge absorbs excess ink from borderless printing, printhead cleaning, and other
processes. Y ou can conrm the remaining capacity of the Maintenance Cartridge by checking the
Maintenance Cartridge capacity shown on the Display Screen .

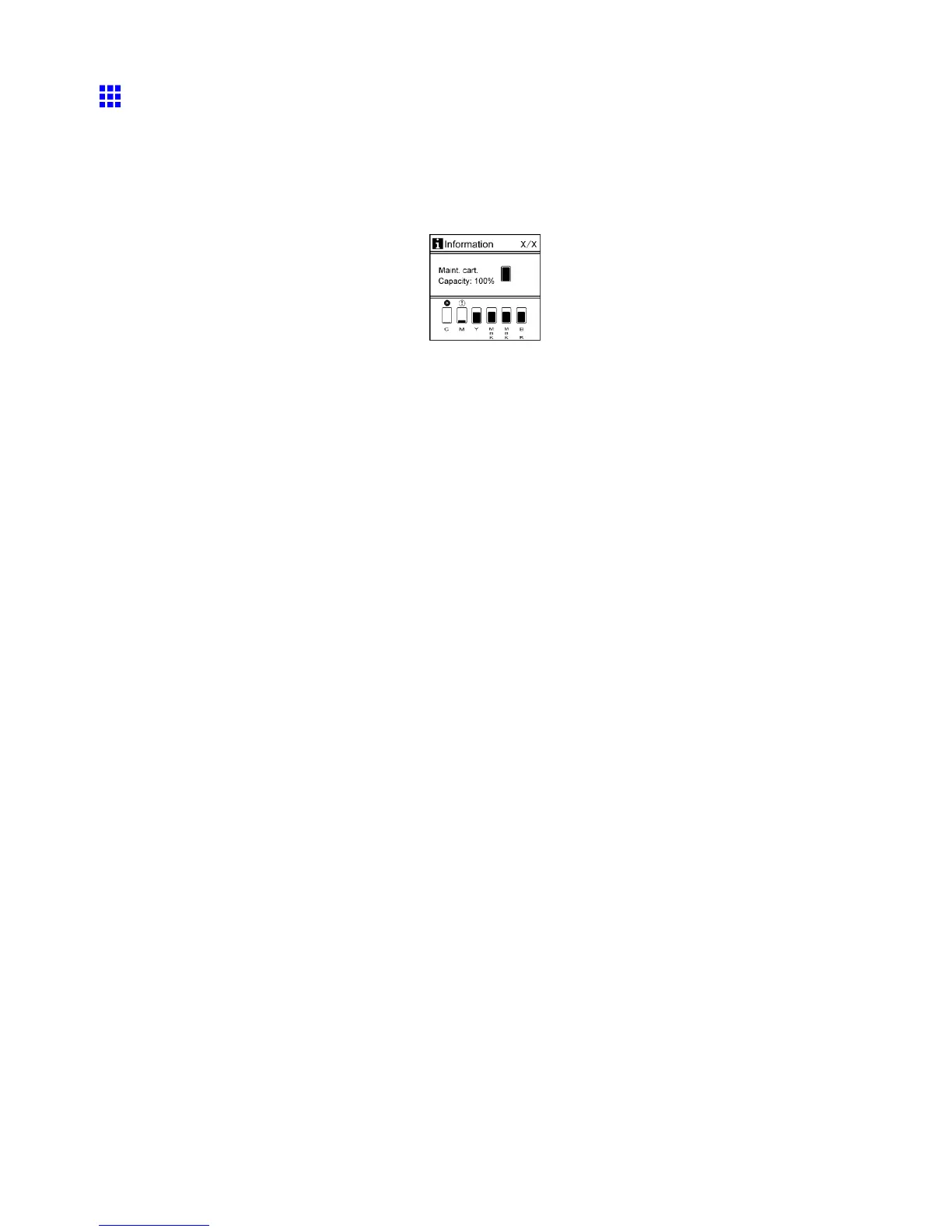

Press the Information button to display the remaining capacity of the Maintenance Cartridge on the Display
Screen .
If the Display Screen indicates to replace the Maintenance Cartridge , replace the Maintenance Cartridge . If a
message is displayed indicating to check the remaining capacity of the Maintenance Cartridge , or before
tasks that deplete much of the capacity such as head cleaning or preparations to move the printer , check the
remaining Maintenance Cartridge capacity and replace the Maintenance Cartridge as needed. ( → P .528 )
Maintenance 535

Canon imagePROGRAF IPF720 Specifications

Operating Environment

temperature range	59 – 86 F° (15 – 30 C°)
relative humidity	10 – 80% (No Condensation)
acoustic noise operation	52dB (A) or Less

Print Specifications

print resolution max	2400 x 1200 dpi
line accuracy	±0.1% or Less
minimum line weight	0.02mm

Ink and Print-Head

number of nozzles matte black	5, 120 Nozzles
number of nozzles other colors	2, 560 Nozzles per Color
droplet size	4 Picoliter

Media Handling

media width roll feed	10" – 36" (254mm – 914.4mm)
cut sheet width	8" – 36" (203.2mm – 914.4mm)
maximum print length roll feed	59' (18m)

Power

power supply	AC 100–240V (50-60Hz)
power consumption maximum	140W or Less
power off consumption	1W or Less

Weight and Dimensions

printer dimensions	43.1" x 59.3" x 34.3"
dimensions in mm	1507mm x 871mm x 1094mm
weight with stand	Approx. 141 lb (64kg)
