Canon imagePROGRAF IPF720 User Manual

Hard Disk
Printing a List of Saved Jobs
Y ou can print a list of saved print jobs in the common box and each personal box.
Y ou can also print a list of print jobs by using the Control Panel .

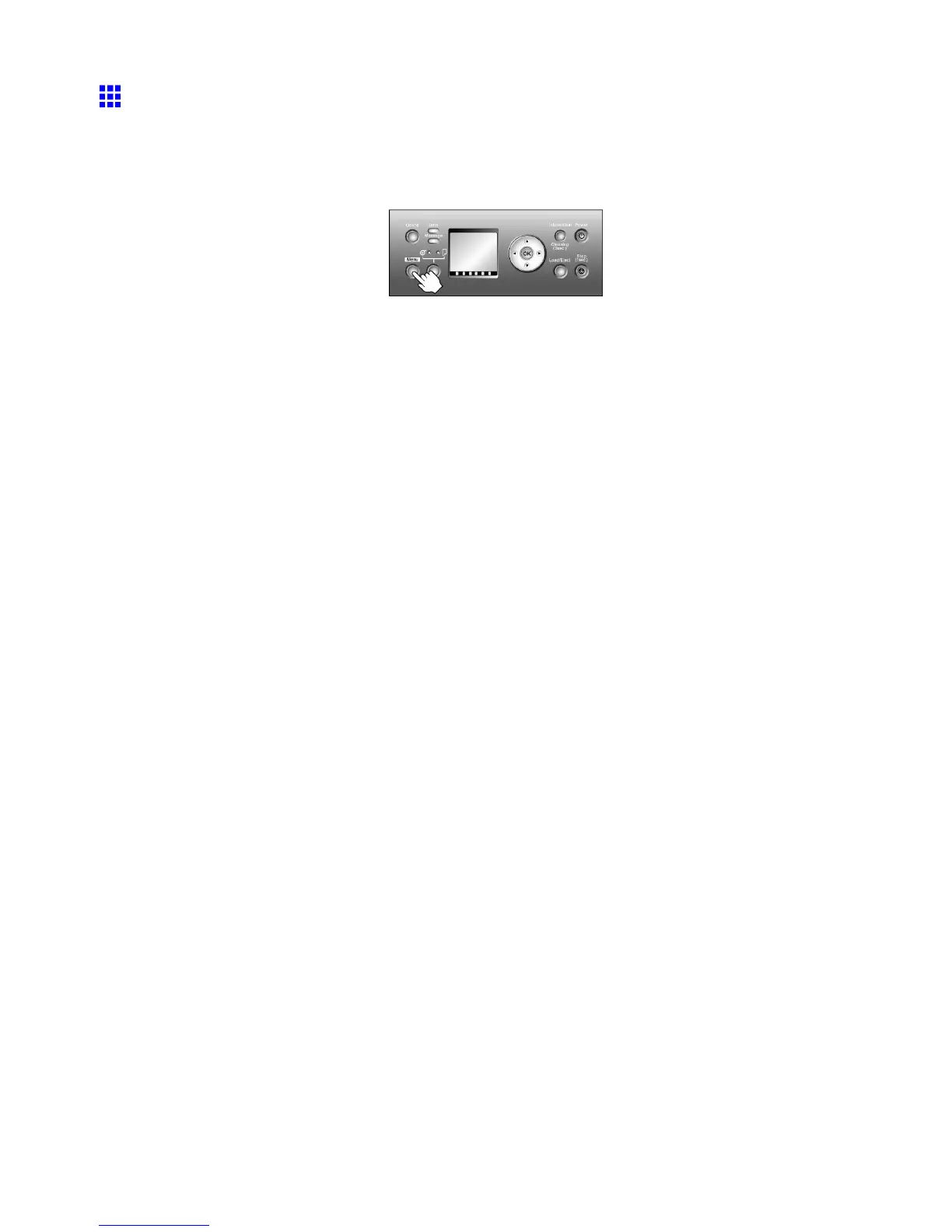

1. Press the Menu button to display MAIN MENU .
2. Print a list of saved print jobs.
• T o print a list of jobs saved in the Common Box
1. Press ▲ or ▼ to select Job Management , and then press the ► button.
2. Press ▲ or ▼ to select Com. BOX Ope. , and then press the ► button.
3. Press ▲ or ▼ to select Print Job List , and then press the ► button.
4. Press ▲ or ▼ to select Y es , and then press the OK button.
• T o print a list of jobs saved in Personal Boxes
1. Press ▲ or ▼ to select Job Management , and then press the ► button.
2. Press ▲ or ▼ to select Psnl. BOX Ope. , and then press the ► button.
3. Press ▲ or ▼ to select the folder , and then press the ► button.
4. Enter a password if one has been set, and then press the OK button.
5. Press ▲ or ▼ to select Print Job List , and then press the ► button.
6. Press ▲ or ▼ to select Y es , and then press the OK button.
464 Hard Disk

Canon imagePROGRAF IPF720 Specifications

Operating Environment

temperature range	59 – 86 F° (15 – 30 C°)
relative humidity	10 – 80% (No Condensation)
acoustic noise operation	52dB (A) or Less

Print Specifications

print resolution max	2400 x 1200 dpi
line accuracy	±0.1% or Less
minimum line weight	0.02mm

Ink and Print-Head

number of nozzles matte black	5, 120 Nozzles
number of nozzles other colors	2, 560 Nozzles per Color
droplet size	4 Picoliter

Media Handling

media width roll feed	10" – 36" (254mm – 914.4mm)
cut sheet width	8" – 36" (203.2mm – 914.4mm)
maximum print length roll feed	59' (18m)

Power

power supply	AC 100–240V (50-60Hz)
power consumption maximum	140W or Less
power off consumption	1W or Less

Weight and Dimensions

printer dimensions	43.1" x 59.3" x 34.3"
dimensions in mm	1507mm x 871mm x 1094mm
weight with stand	Approx. 141 lb (64kg)
