Canon imagePROGRAF IPF720 User Manual

Handling rolls

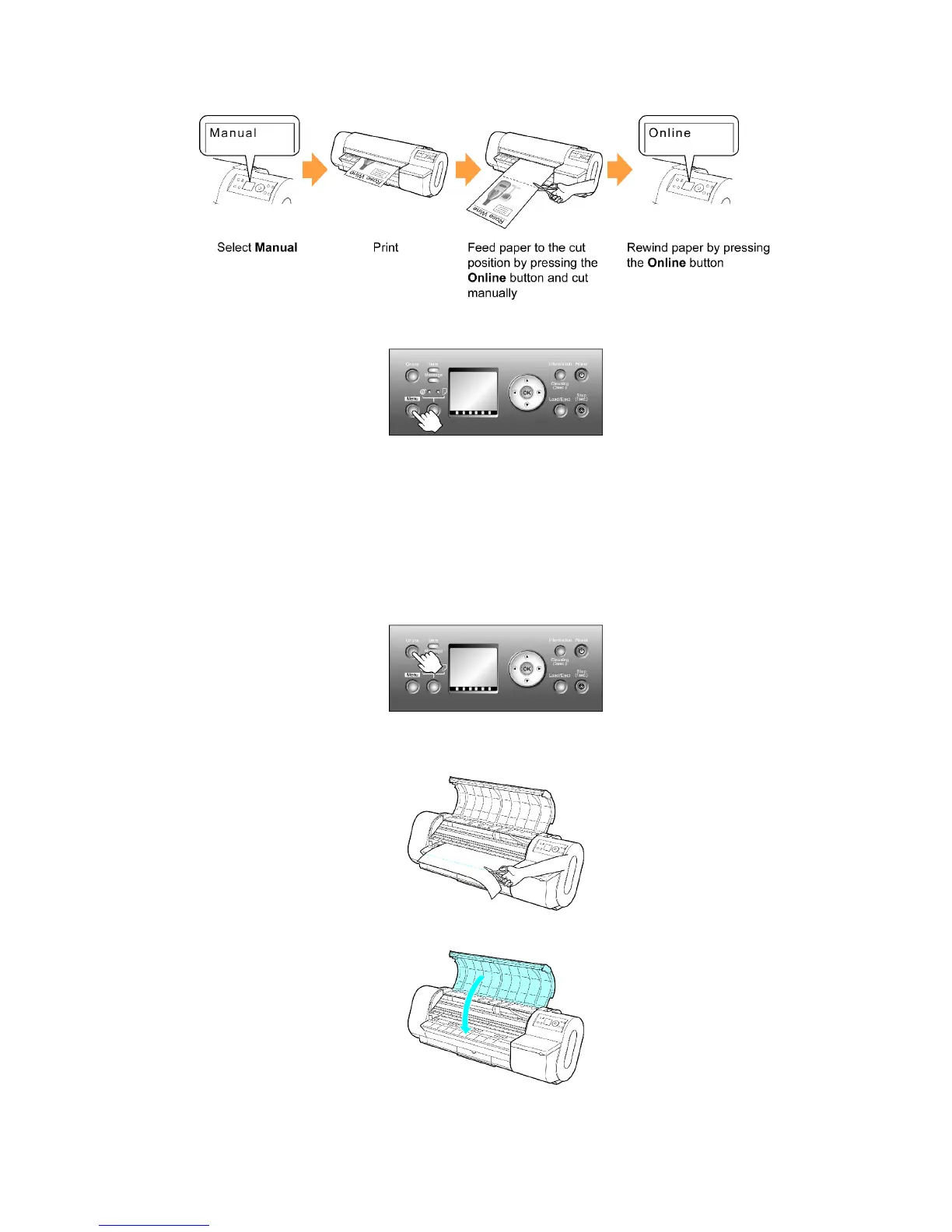

Manual (when using media that cannot be cut using the Cutter Unit )
1. Press the Menu button to display MAIN MENU .
2. Press ▲ or ▼ to select Paper Details , and then press the ► button.
3. Press ▲ or ▼ to select the type of paper , and then press the ► button.
4. Press ▲ or ▼ to select Cutting Mode , and then press the ► button.
5. Press ▲ or ▼ to select Manual , and then press the OK button.
6. Start printing.
The printer stops advancing the paper after printing.
7. Press the Online button.
Roll paper is fed to the specied cut position and then automatically stopped.
8. Use scissors to cut the roll paper along the cut line.
9. Close the T op Cover .
124 Handling Paper

Canon imagePROGRAF IPF720 Specifications

Operating Environment

temperature range	59 – 86 F° (15 – 30 C°)
relative humidity	10 – 80% (No Condensation)
acoustic noise operation	52dB (A) or Less

Print Specifications

print resolution max	2400 x 1200 dpi
line accuracy	±0.1% or Less
minimum line weight	0.02mm

Ink and Print-Head

number of nozzles matte black	5, 120 Nozzles
number of nozzles other colors	2, 560 Nozzles per Color
droplet size	4 Picoliter

Media Handling

media width roll feed	10" – 36" (254mm – 914.4mm)
cut sheet width	8" – 36" (203.2mm – 914.4mm)
maximum print length roll feed	59' (18m)

Power

power supply	AC 100–240V (50-60Hz)
power consumption maximum	140W or Less
power off consumption	1W or Less

Weight and Dimensions

printer dimensions	43.1" x 59.3" x 34.3"
dimensions in mm	1507mm x 871mm x 1094mm
weight with stand	Approx. 141 lb (64kg)
