Canon imagePROGRAF IPF720 User Manual

Printing banners or at other non-standard sizes

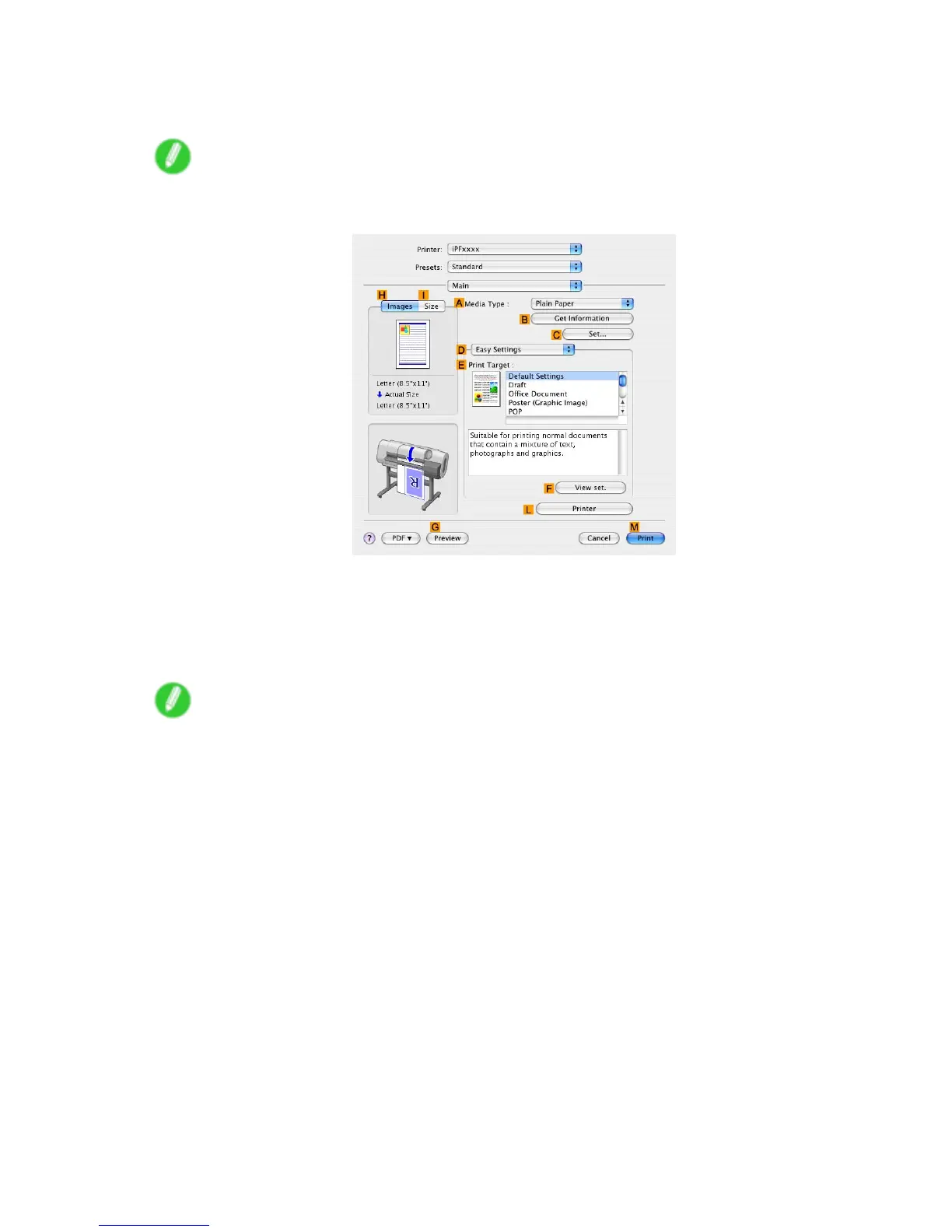

7. Make sure the width of the loaded roll is displayed in the B Roll Paper W idth list-in this case, 16
in. (406.4mm) .
Note
• If the width of the loaded roll is not displayed in B Roll Paper W idth , click L Printer Information on
the Main pane and update the printer information.
8. In C Page Size , make sure "100*500" is displayed, as registered in Page Setup .
9. Select the D Enlarged/Reduced Printing check box.
10. Click F Fit Roll Paper W idth .
1 1. Conrm the print settings, and click M Print to start printing.
Note
• For tips on conrming print settings, see “Conrming Print Settings (Mac OS X)”. (→P .382)
260 Enhanced Printing Options

Canon imagePROGRAF IPF720 Specifications

Operating Environment

temperature range	59 – 86 F° (15 – 30 C°)
relative humidity	10 – 80% (No Condensation)
acoustic noise operation	52dB (A) or Less

Print Specifications

print resolution max	2400 x 1200 dpi
line accuracy	±0.1% or Less
minimum line weight	0.02mm

Ink and Print-Head

number of nozzles matte black	5, 120 Nozzles
number of nozzles other colors	2, 560 Nozzles per Color
droplet size	4 Picoliter

Media Handling

media width roll feed	10" – 36" (254mm – 914.4mm)
cut sheet width	8" – 36" (203.2mm – 914.4mm)
maximum print length roll feed	59' (18m)

Power

power supply	AC 100–240V (50-60Hz)
power consumption maximum	140W or Less
power off consumption	1W or Less

Weight and Dimensions

printer dimensions	43.1" x 59.3" x 34.3"
dimensions in mm	1507mm x 871mm x 1094mm
weight with stand	Approx. 141 lb (64kg)
