Canon imagePROGRAF IPF720 User Manual

PosterArtist
Using PosterArtist to Compose Originals (W indows)
This topic describes how to use PosterArtist to compose originals from multiple applications, creating a poster
layout for printing.
Important
• PosterArtist (sold separately) must be installed to use this function.
1. Choose Print in the application menu.
2. Select the printer in the dialog box, and then open the printer driver dialog box. ( → P .343)

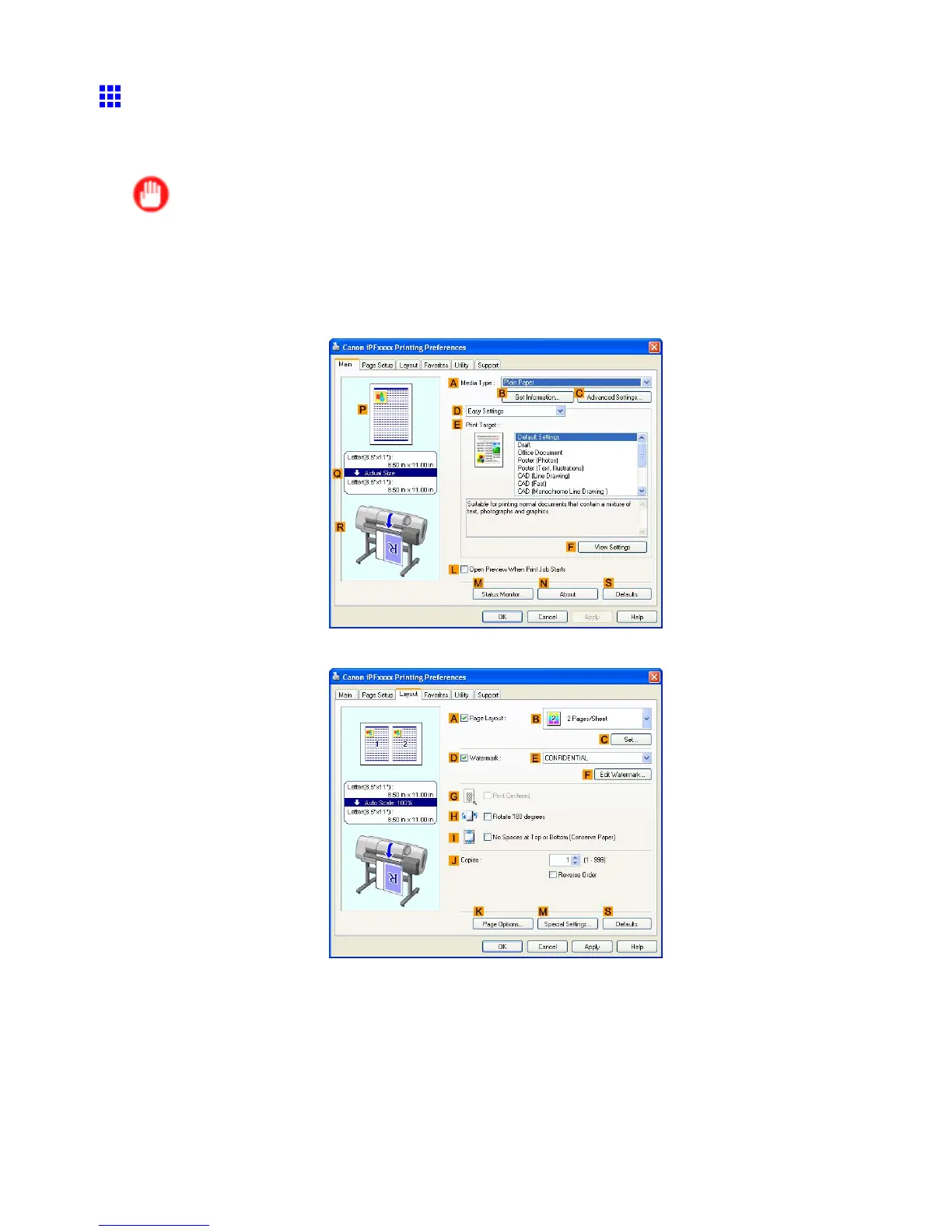

3. Make sure the Main sheet is displayed.
4. Click the Layout tab to display the Layout sheet.
5. Select the A Page Layout check box.
6. Click in the Edit Using PosterArtist in the B Page Layout list.
7. When you attempt to print, PosterArtist starts up and the PageCapture window is displayed. (At
this point, the document will not be printed yet.)
8. Choose the page to load in PosterArtist .
Windows Software 375

Canon imagePROGRAF IPF720 Specifications

Operating Environment

temperature range	59 – 86 F° (15 – 30 C°)
relative humidity	10 – 80% (No Condensation)
acoustic noise operation	52dB (A) or Less

Print Specifications

print resolution max	2400 x 1200 dpi
line accuracy	±0.1% or Less
minimum line weight	0.02mm

Ink and Print-Head

number of nozzles matte black	5, 120 Nozzles
number of nozzles other colors	2, 560 Nozzles per Color
droplet size	4 Picoliter

Media Handling

media width roll feed	10" – 36" (254mm – 914.4mm)
cut sheet width	8" – 36" (203.2mm – 914.4mm)
maximum print length roll feed	59' (18m)

Power

power supply	AC 100–240V (50-60Hz)
power consumption maximum	140W or Less
power off consumption	1W or Less

Weight and Dimensions

printer dimensions	43.1" x 59.3" x 34.3"
dimensions in mm	1507mm x 871mm x 1094mm
weight with stand	Approx. 141 lb (64kg)
