Canon imagePROGRAF IPF720 User Manual

Maintenance Cartridge

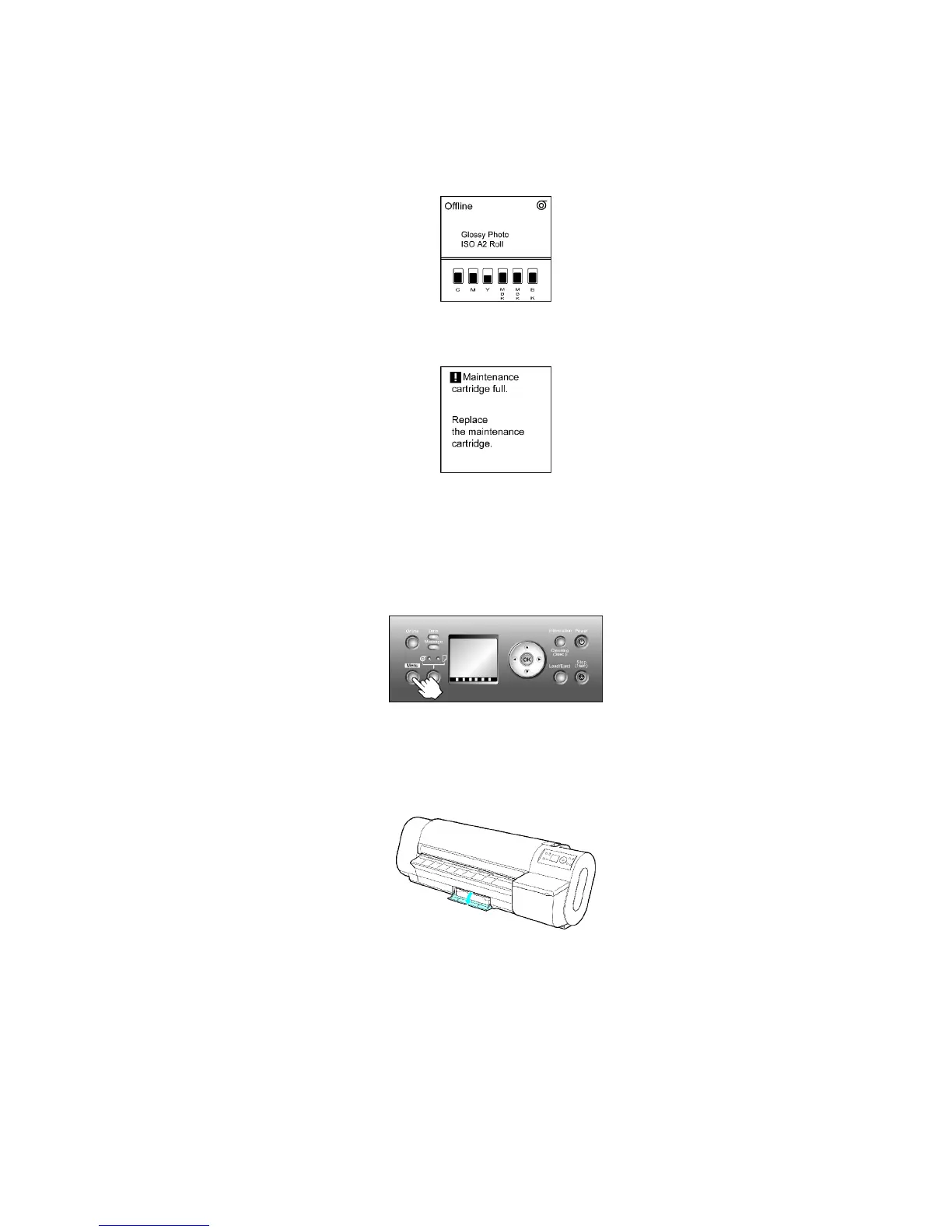

Replacing the Maintenance Cartridge
1. Make sure no print jobs are in progress.
Y ou can replace the Maintenance Cartridge if the Display Screen indicates the printer is Ofine
or if messages advise you to replace the Maintenance Cartridge .
If a message prompts you to replace the Maintenance Cartridge , go to step 6 and remove
the Maintenance Cartridge .
Do not replace the Maintenance Cartridge during initialization immediately after turning on the
printer , during Printhead cleaning, or while ink is being lled.
If you pause printing to replace the Maintenance Cartridge , it may cause the printed images to
be blurry .
2. Press the Menu button to display MAIN MENU .
3. Press ▲ or ▼ to select Maintenance , and then press the ► button.
4. Press ▲ or ▼ to select Repl. maint cart , and then press the ► button.
5. Press ▲ or ▼ to select Y es , and then press the OK button.
6. At this point, open the Maintenance Cartridge Cover .
Maintenance 529

Canon imagePROGRAF IPF720 Specifications

Operating Environment

temperature range	59 – 86 F° (15 – 30 C°)
relative humidity	10 – 80% (No Condensation)
acoustic noise operation	52dB (A) or Less

Print Specifications

print resolution max	2400 x 1200 dpi
line accuracy	±0.1% or Less
minimum line weight	0.02mm

Ink and Print-Head

number of nozzles matte black	5, 120 Nozzles
number of nozzles other colors	2, 560 Nozzles per Color
droplet size	4 Picoliter

Media Handling

media width roll feed	10" – 36" (254mm – 914.4mm)
cut sheet width	8" – 36" (203.2mm – 914.4mm)
maximum print length roll feed	59' (18m)

Power

power supply	AC 100–240V (50-60Hz)
power consumption maximum	140W or Less
power off consumption	1W or Less

Weight and Dimensions

printer dimensions	43.1" x 59.3" x 34.3"
dimensions in mm	1507mm x 871mm x 1094mm
weight with stand	Approx. 141 lb (64kg)
