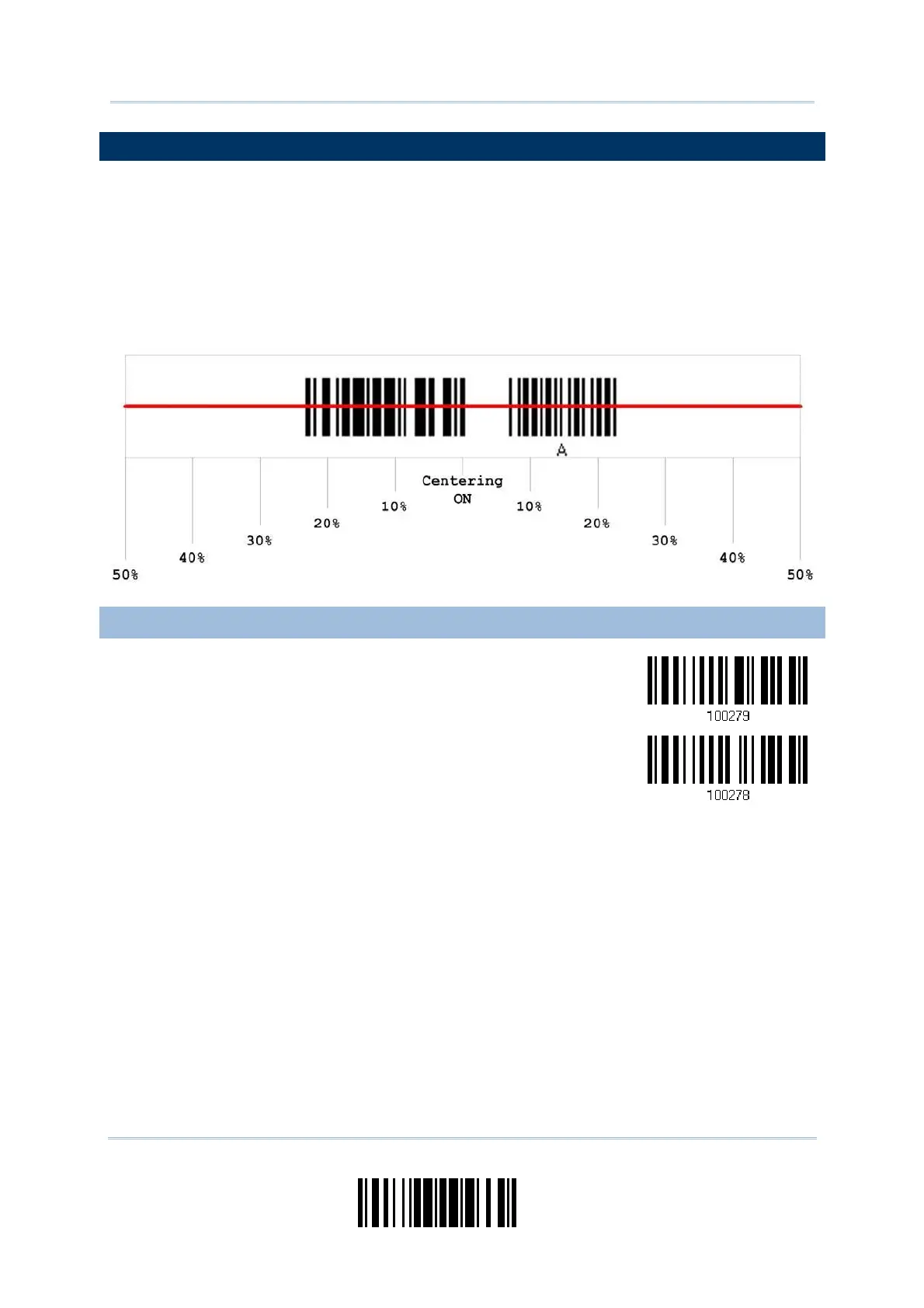

1.13 EFFECTIVE DECODING AREA
By default, the effect ive decoding area is 100% covered by the scanned area. However,
you m ay narrow down the decoding area to prevent reading the wrong barcode when a
num ber of barcodes are printed closely. The scanner will only read barcodes that appear
in the effect ive decoding area.
Read t he barcode “ Centering On” and specify the percentage to narrow down the
decoding area. For example, read “Left 10% ” and then “ Right 30% ” for the scanner t o
decode barcode “ A” only.
1.13.1 POSITIONING WINDOW
Centering On
*Centering Off
