Appendix B Troubleshooting Tools and Methodology
Using Cisco MDS 9000 Family Tools

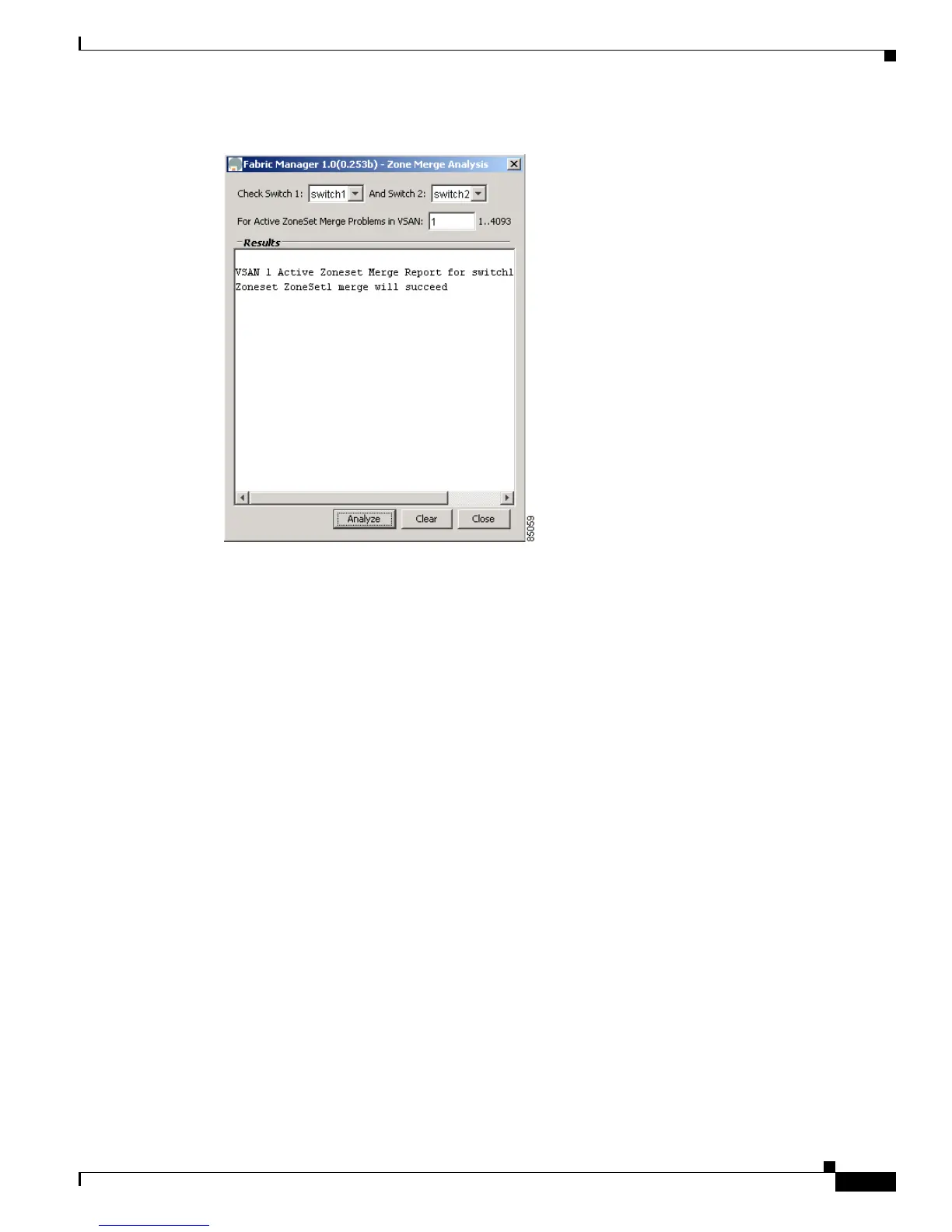

Figure B-5 Zone Merge Analysis Window
The Zone Merge Analysis window displays any inconsistencies between the zone configuration of the
two selected switches.
You can use the following options on the Fabric Manager Tools menu to verify connectivity to a selected
object or to open other management tools:
• Traceroute—Verify connectivity between two end devices that are currently selected on the Map
pane.
• Device Manager— Launch Device Manager for the switch selected on the Map pane.
• Command Line Interface—Open a Telnet or SSH session for the switch selected on the Map pane.
Alerts and Alarms
You can configure and monitor SNMP, RMON, Syslog, and Call Home alarms and notifications using
the different options on the Device Manager Events menu. SNMP provides a set of preconfigured traps
and informs that are automatically generated and sent to the destinations (trap receivers) that you
identify. The RMON Threshold Manager lets you configure thresholds for specific events that trigger
log entries or notifications. You can use either Fabric Manager or Device Manager to identify Syslog
servers that will record different events or to configure Call Home, which can alert you through e-mail
messages or paging when specific events occur.
Device Manager: RMON Threshold Manager
Use the options on the Device Manager Events menu to configure and monitor Simple Network
Management Protocol (SNMP), Remote Monitor (RMON), Syslog, and Call Home alarms and
notifications. SNMP provides a set of preconfigured traps and informs that are automatically generated
and sent to the destinations (trap receivers) chosen by the user.
