Prior to operation

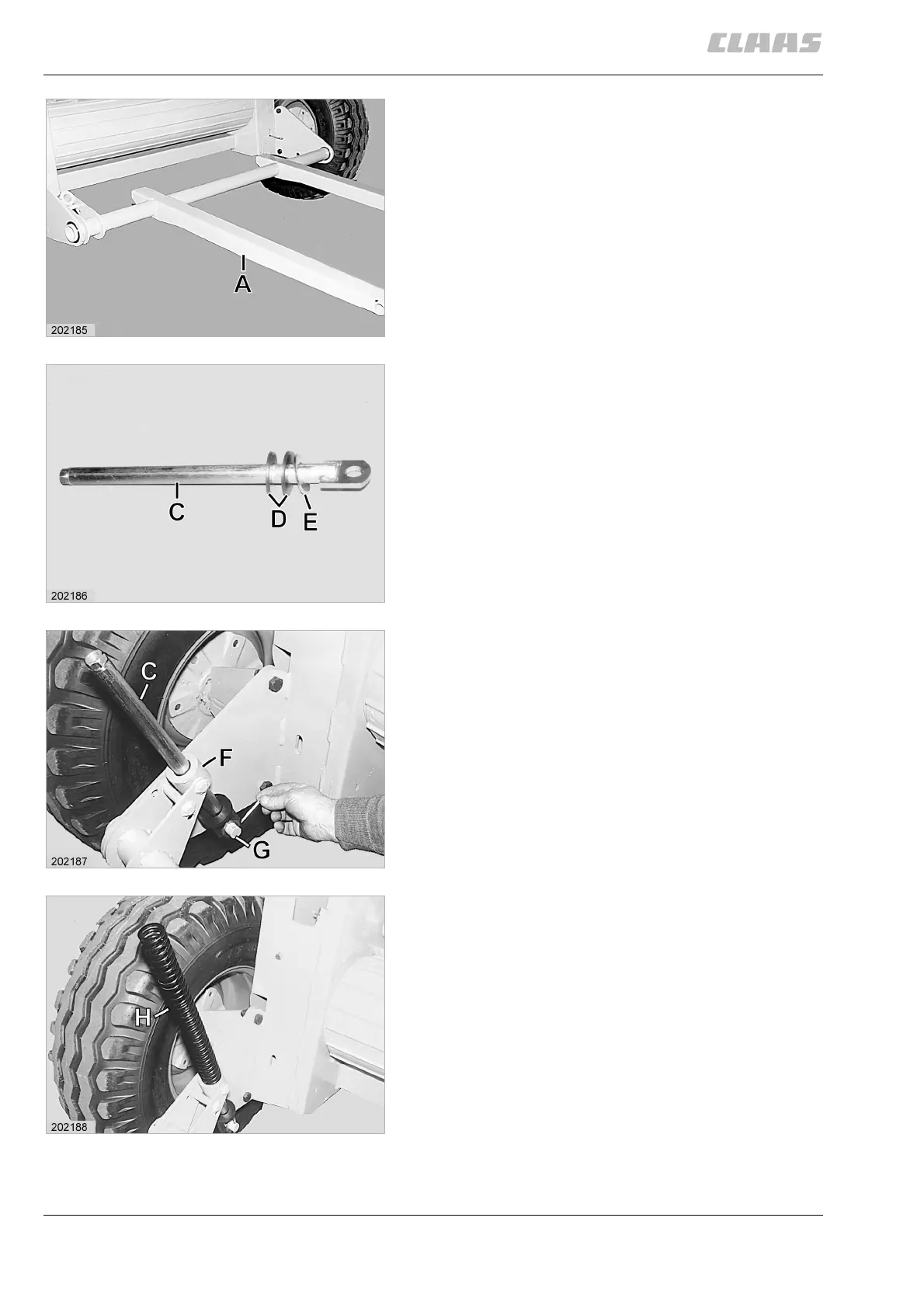

Insert unwinding bow (A) completely into the right
bearing, then push it into the left bearing.
(Fig. 5)
Slide washer (E) over spring guide (C) and then over
rubber discs (D).
(Fig. 6)
Slide spring guide (C) into the slewable receptacle (F)
on the unwinding bow and at the same time push it
over pin (G) on the chassis.
Slide the washer over the pin and secure it with the
cotter pin.
(Fig. 7)
Slide pressure spring (H) over the spring guide.
(Fig. 8)
5
6
7
8
