Prior to operation

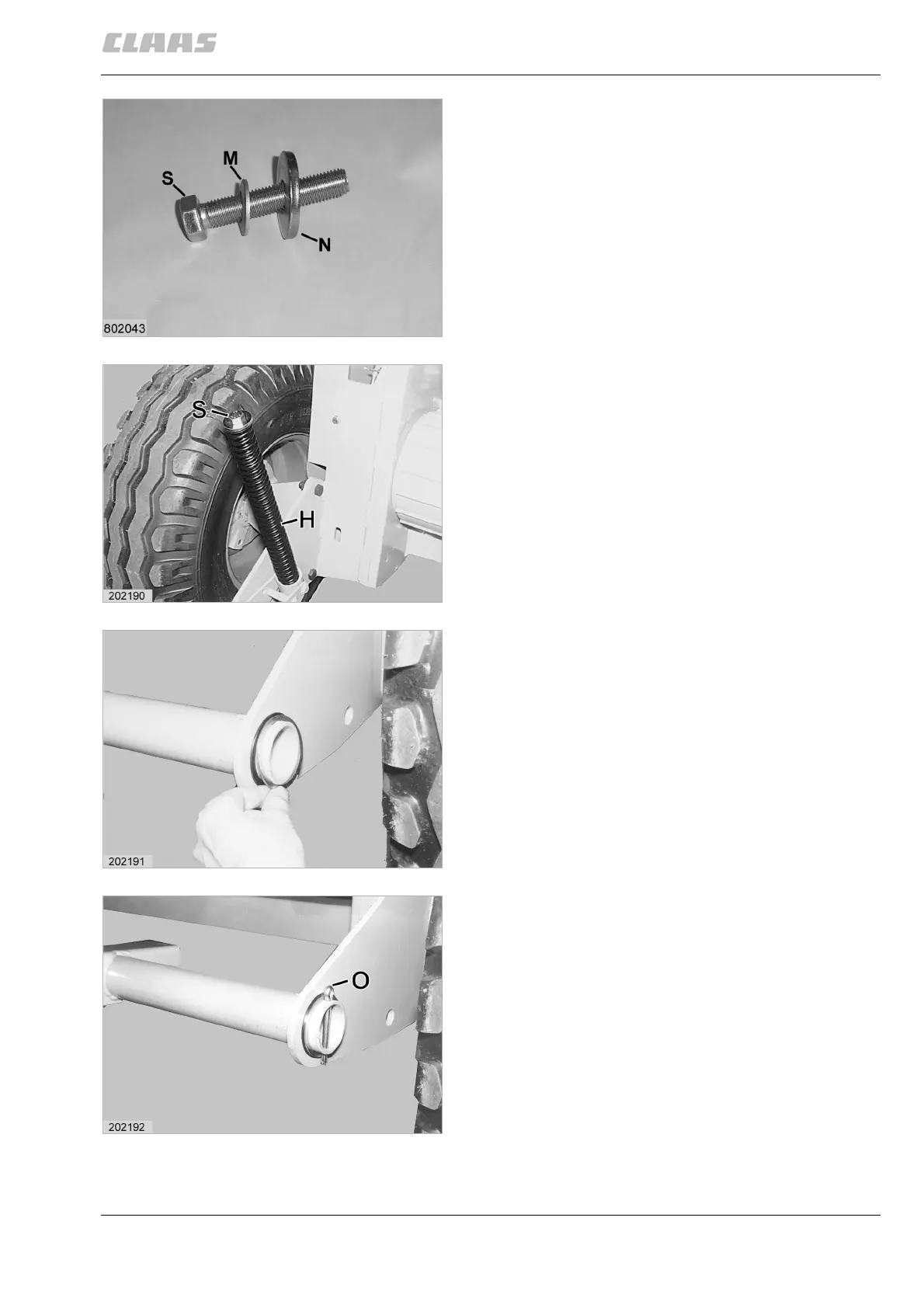

Slide washer (M) over hexagon bolt (S) M 16 x 85,
followed by the bigger washer (N).
(Fig. 9)
Lift the unwinding bow up. Screw hex bolt (S) with
washers into the spring guide until it reaches the end
(this tightens the pressure spring (H)).
(Fig. 10)
Push the washer from both sides onto the ends of the
unwinding bow.
(Fig. 11)
Insert and lock cotter pins (O) on both sides.
(Fig. 12)
