14.9.1 Editing Module Slots 1–3

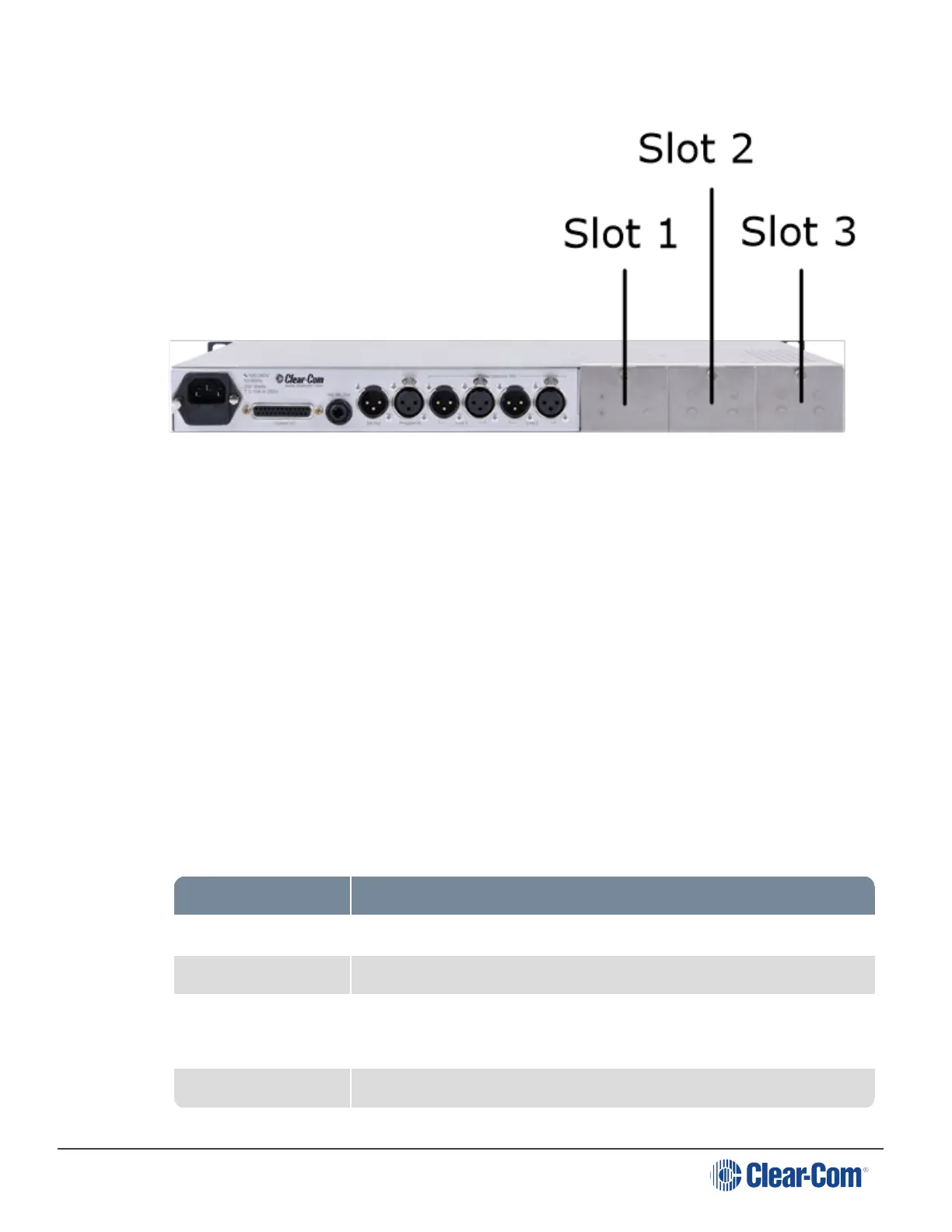

Module slots 1 – 3 in the CCM correspond to the modules installed on the back of your Main
Station. If module configuration in the CCM does not match what is on the device, a warning
message will be given in the CCM.
For each module, chose between 3 types:
l None/Ethernet/Fiber
l 2-wire
l 4-wire
None/Ethernet/Fiber
There are no configuration options associated with this module type.
2-wire
For each XLR port (A & B) configure the following to connect 2 audio Channels to analogue
Partylines:
Setting Options
Label Use to give the port a meaningful name
Channel Assignment Choose one from total Channels (12 or 24 depending on license)
Program Output Mute (default)
Unmute
Mode Clear-Com (default)
