HelixNet | User Guide

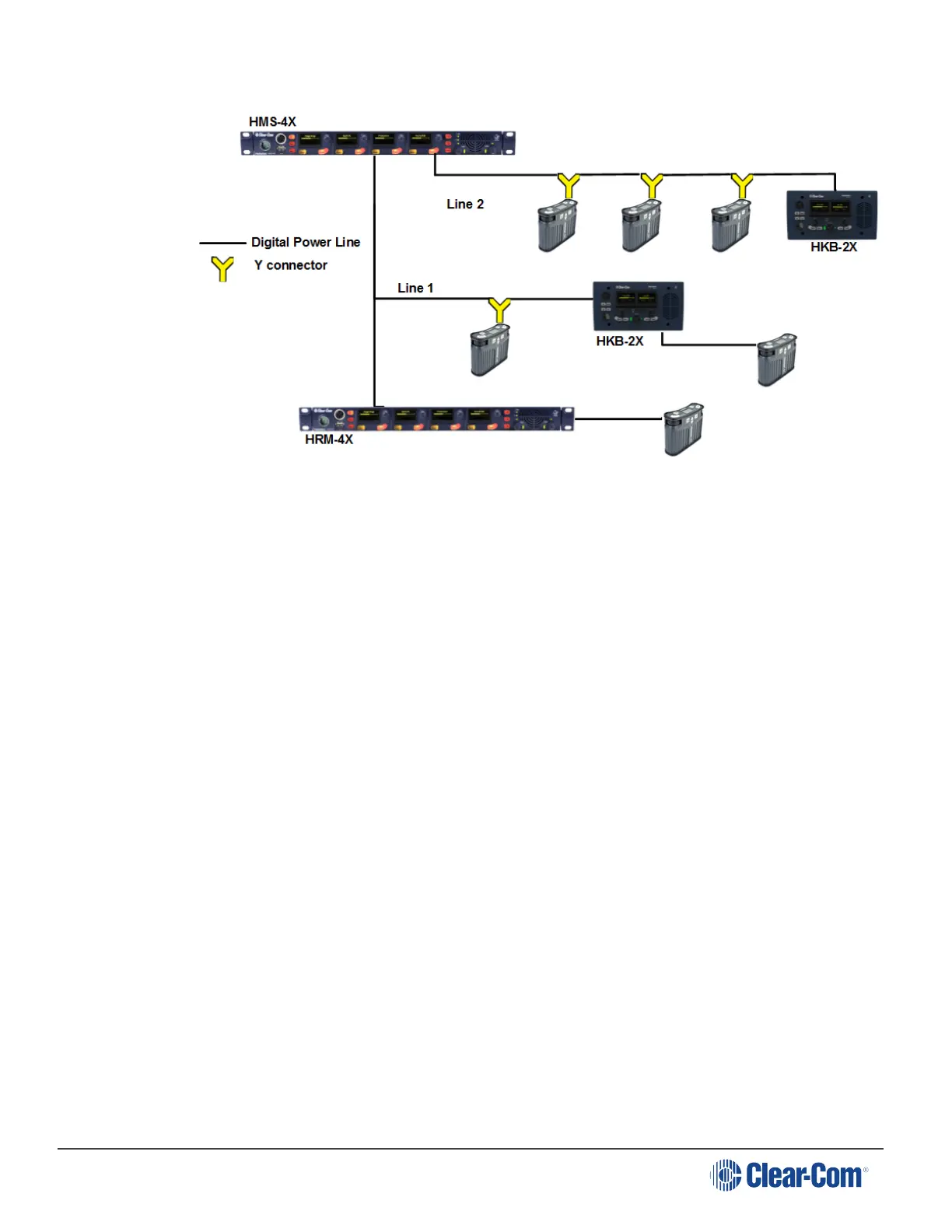

3. On a Remote Station you can verify that the Line status LED is steady green.
18.1.2 Ethernet Point-to-Point Link
Remote Stations, Speaker Stations and HXII-BP-X4 beltpacks have RJ45 Ethernet connectors
and can connect to Main Stations over Ethernet.
1. Insert an HLI-ET2 Ethernet interface module in the Main Station. Use any of the three slots
available.
Note: Ensure that the Main Station is powered down before inserting modules.
2. Connect a regular Ethernet cable (for example, CAT5, CAT5e, CAT6, CAT6e) from one HLI-
ET2 port on one station to the Remote or Speaker Station.
3. Connect an external AC/DC power adapter to the Remote or Speaker Station
4. Power up both Stations. Verify that the green LEDs on the HLI-ET2 port and on the Remote
or Speaker Station are on.
5. Go to Networking->Pair to Station->By Name on the Remote or Speaker Station. You
should see one entry indicating that the Remote or Speaker Station has properly detected the
Main Station. Select this entry.
6. Go to Station Settings->Keyset Assign and assign Channels to any keyset, or use the CCM
to create Roles.
Page 200
