HelixNet | User Guide
18.1.3 Local IP Network

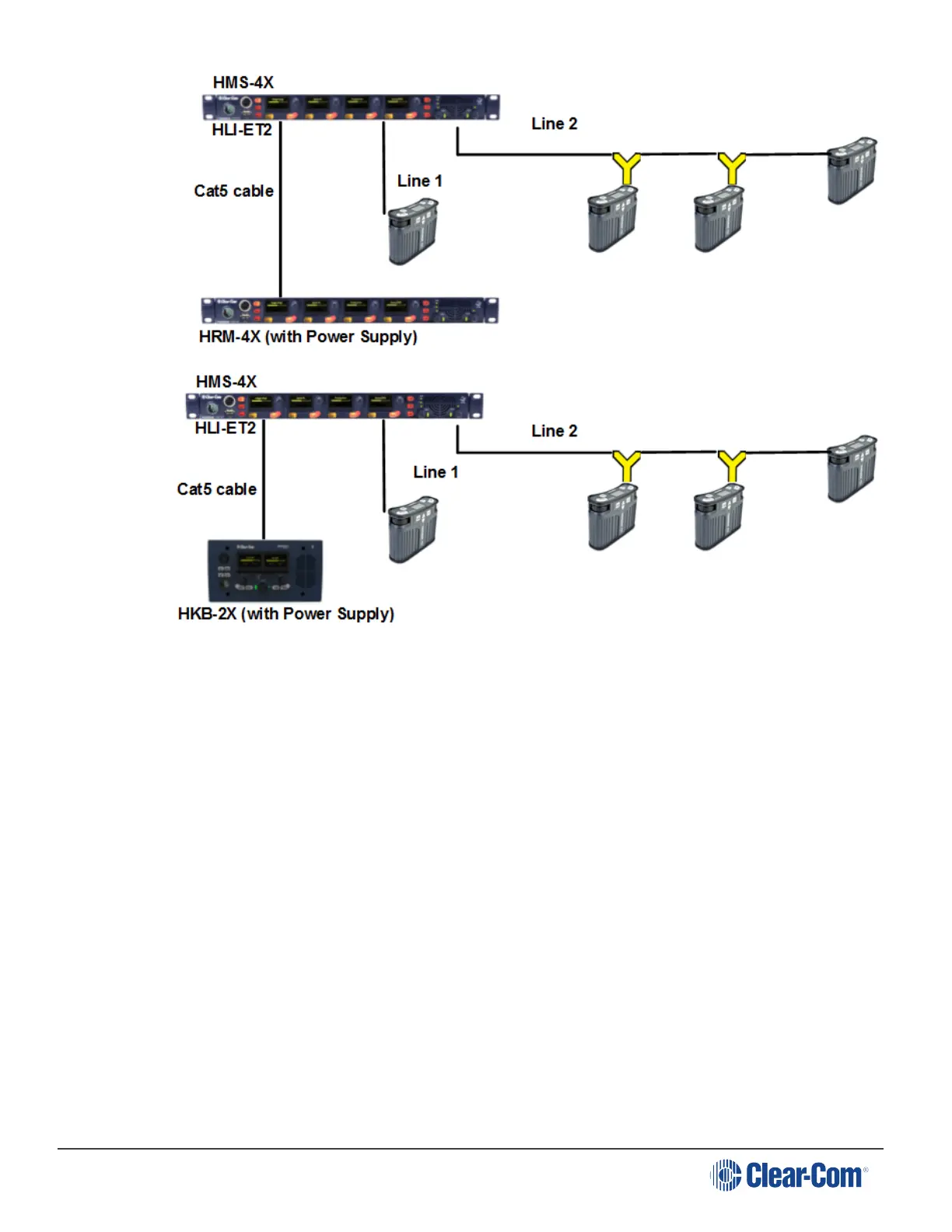

1. Insert an HLI-ET2 Ethernet interface module into the Main Station. Use any of the three slots
available.
Note: Ensure that the Main Station is powered down before inserting modules.
2. Connect a regular Ethernet cable (for example, CAT5, CAT5e, CAT6, CAT6e) from one HLI-
ET2 port to an Ethernet Switch and connect Remote or Speaker Stations to Ethernet Switch
as well.
3. Connect an external AC/DC power adapter to the Remote or Speaker Station or connect
them on a Power over Ethernet (PoE) port on the Ethernet Switch.
4. Power up all Stations. Verify that the green LED on the HLI-ET2 port and on the Remote or
Speaker Station is on.
5. Go to Networking->Pair to Station->By Name on each Remote and Speaker Station. You
should see one entry indicating that the Remote or Speaker Station has properly detected the
Main Station. Select this entry.
