HelixNet | User Guide
19.2.2 Connecting HelixNet and LQ Using an Analog Connection

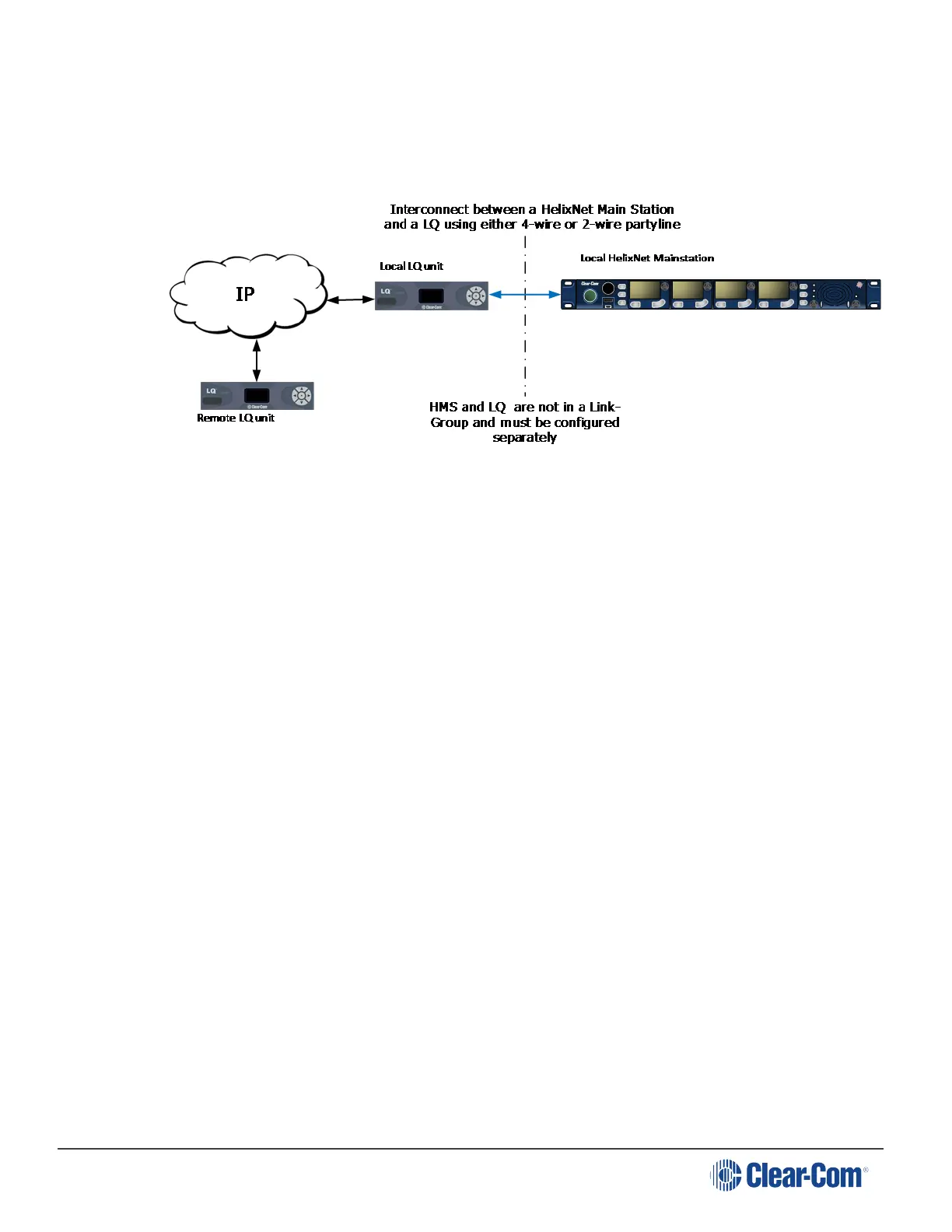

Interconnecting HelixNet and LQ equipment using either 4-wire or 2-wire interfaces is possible
and only serves as a means of transporting one channel of audio along with call signalization per
connection.
For more information, see Program a HelixNet/LQ Link-Group.
19.2.3 Programming a HelixNet/LQ Link-Group
The HelixNet Main Station that has been designated as the Link-Master must be reachable on an
IP network by all other Link-Members.
Note: The HLI-ET2 module must be fitted to the HelixNet Main Station for IP connectivity
To access the Core configuration manager (CCM), input the IP address of each device into the
address field of a browser. Enter the default login credentials: admin, admin.
Once LQ and HelixNet devices have been joined to a Link-Group, they can be monitored and
configured from any device within that group.
An LQ/HelixNet Link-Group supports up to 3 linked HelixNet Main Stations and up to 3 linked LQ
units (a maximum of 6 devices in total).
