HelixNet | User Guide
Tip: For more information about managing the HelixNet to Eclipse connection in EHX, see your
EHX documentation (including Help).

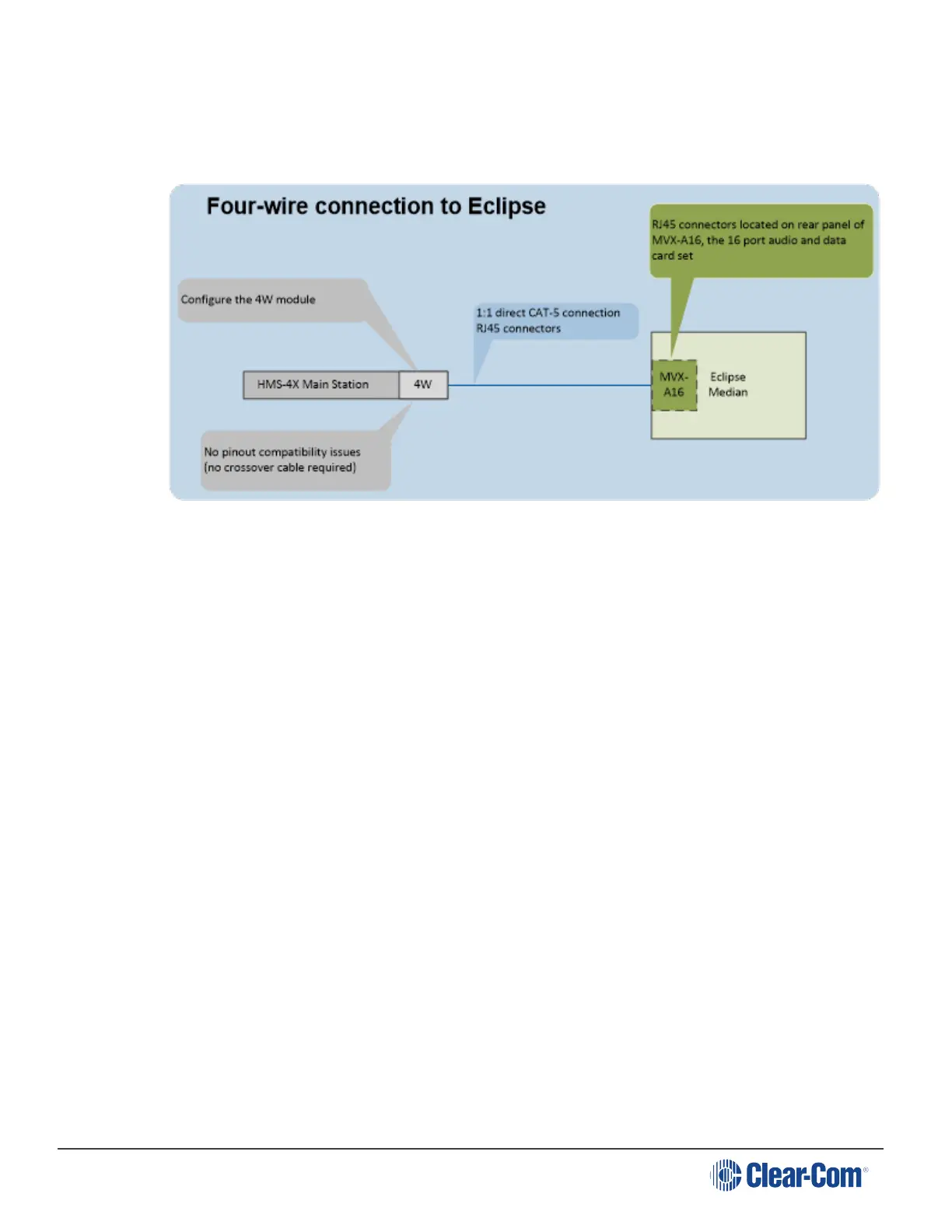

19.7.4 Quick Reference: Four-Wire Connection to Eclipse
19.7.5 Four-Wire Connection to Eclipse
To connect your HelixNet Partyline system to an Eclipse or Eclipse-HX System, using a four-wire
connection:
1. On the HMS-4X Main Station, configure the Module Settings for the four-wire interface
module. For the procedure, see Configuring a Four-wire interface module.
2. Connect the HMS-4X Main Station directly to the MVX-A16 card (the 16 port audio and data
card set) with standard CAT5 cable.
Note: For pinout information for the two systems, see the quick reference diagram in
Four-wire connection to Eclipse.
RJ45 connectors are located:
l On the HMS-4X Main Station four-wire interface module.
l On the rear panel of the MVX-A16 card.
Tip: To optimize audio quality, you may want to adjust the Audio Settings on the HMS-4X Main
Station. For more information, see Configuring the Audio settings.
Tip: For more information about managing the HelixNet to Eclipse connection in EHX, see your
EHX documentation (including EHX Help.)
