HelixNet | User Guide

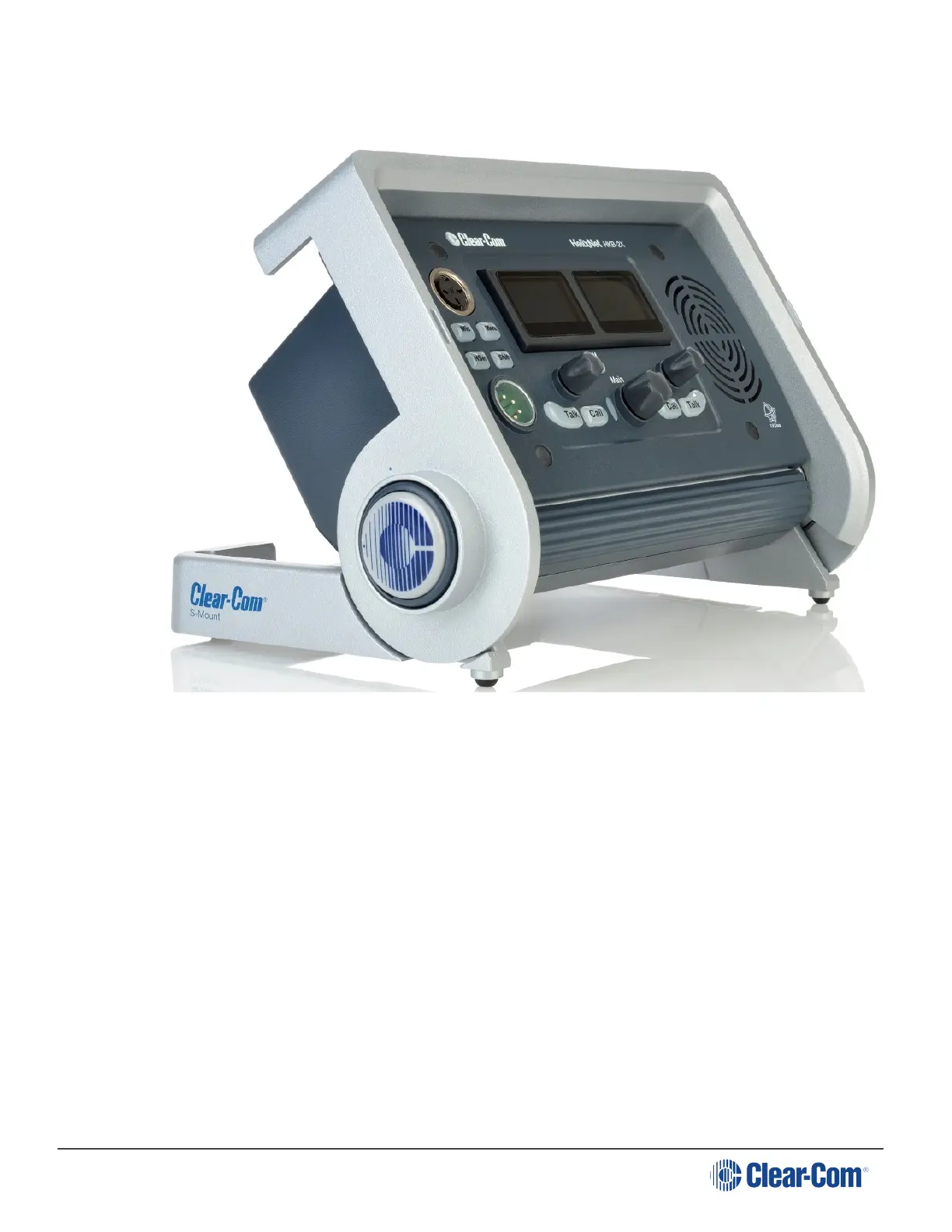

3.3.1 Speaker Station in an S-Mount Bracket
You can adjust the S-Mount bracket by pressing one of the release buttons on either side of the
bracket. You can adjust the bracket in 10-degree steps from 80 degrees to horizontal. Indicators
are present beside the release buttons that show the adjustment steps.
To install the Speaker Station (already fitted inside the S-Mount):
1. Connect a powerline XLR-3 port on the Speaker Station to a powerline XLR-3 port on a Main
Station.
Or
Connect via Ethernet on the Speaker Station to an IP network which the HMS-4X
(HLI-ET2) is also connected to.
2. Connect a headset or microphone to the Speaker Station.
3. Connect power supply to the DC power port on the Speaker Station. (Not necessary if using
Page 60
