HelixNet | User Guide
Note: For each menu, turn the rotary control clockwise to scroll down the menu
items. Turn counter clockwise to scroll up the menu items.
Off-screen menu items are indicated by arrows at the top and/or bottom of the
screen.
Selected menu items (which create your path through the four menus) are
highlighted in solid yellow.
The current setting is indicated by a dotted box around the menu item
When you have selected a setting by rotating the right hand rotary control, press that
rotary control to enable the setting on the Main Station.

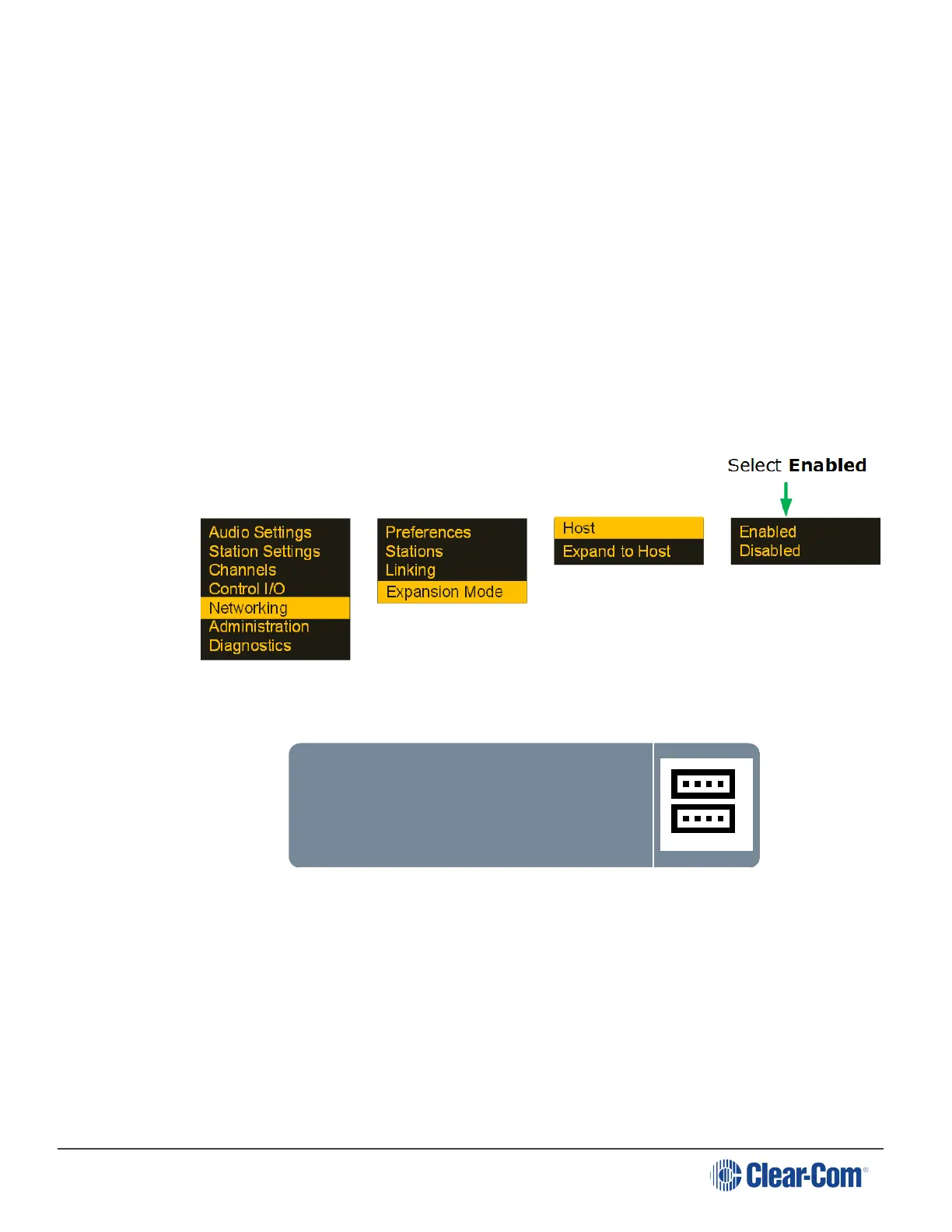

2. Navigate to Menu > Networking > Expansion Mode. Select Host.
3. From the 4
th
screen on the device select Enabled. The device will then be open for expansion.
Note: On both Host and Expansion panels a “stacking” icon will flash until connection is
established.
Designate the Expansion panel and link it to the host:
4. From the front panel menus of the panel you wish to expand from the host, navigate to Menu
> Networking > Expansion Mode > Expand To Host.
5. Select the required host panel using the rotary controllers, which, providing the devices are on
the same network, will be visible in the 4
th
screen.
6. The stacking icon will flash in the screen until connection is established. Once the connection
