Basic Imager Operations
`çåíêçä=m~åÉä=aáëéä~ó
Status Screen
When not displaying the Menu or Help screens, the control panel
displays the Status screen. The top portion of the Status screen—the
Supply window—displays the status of the three supply cassettes
and whether a ribbon is installed. The bottom portion of the
screen—the Status window—displays printing status messages and
the imager’s operational state.
To get additional information about the currently selected status
message, press the key. For more information, refer to “Using
Online Help” on page 3-23.

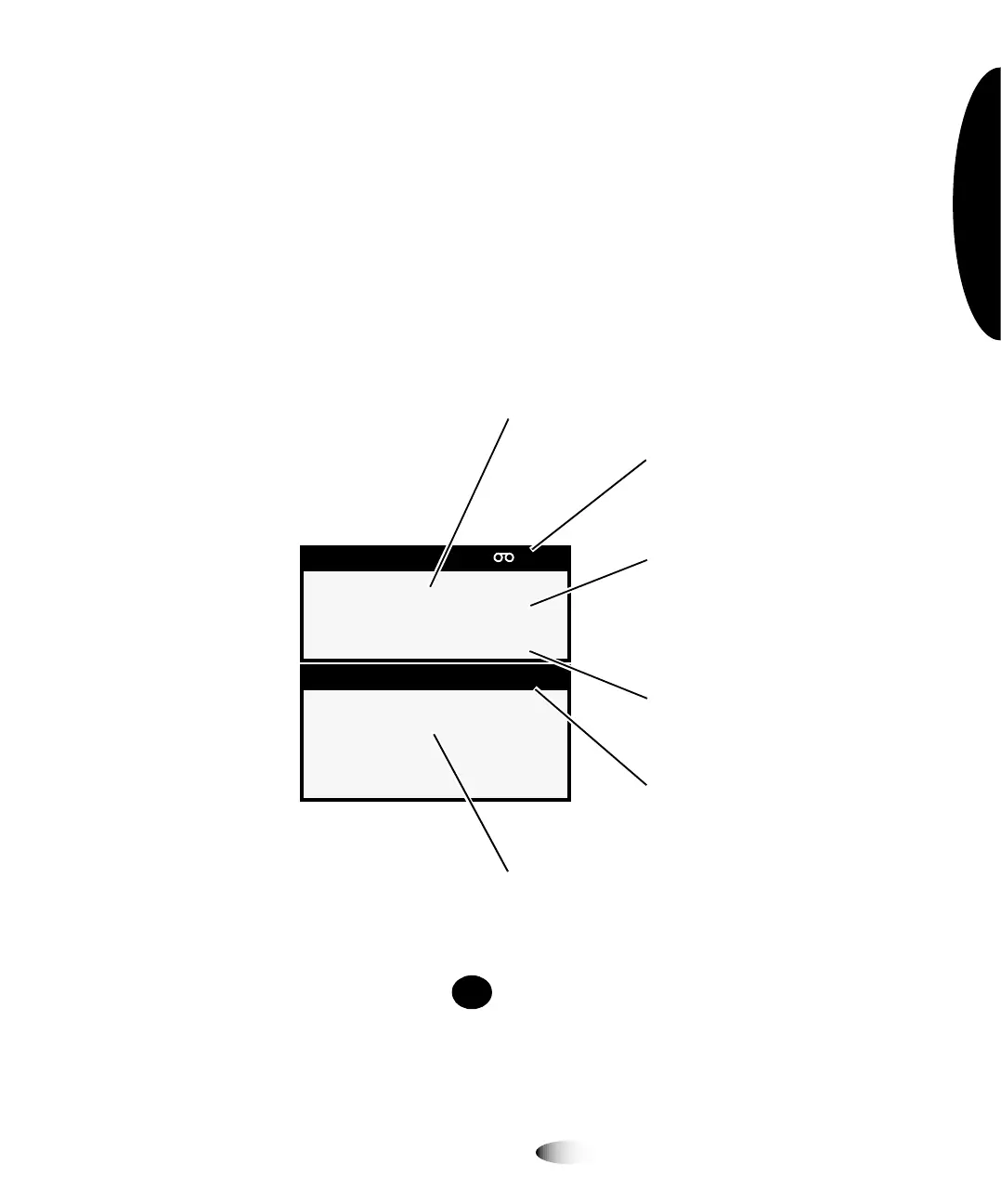

Supply CMY
1: 8X10 DV Blue 53
2: A CV Paper 100
3: 14X17 DV Blue 76
Status OK
Sheets queued: 3
Indicates that color ribbon
is installed and its status
Supply window: Indicates
status of supply slots
Number of sheets left in
cassette
Status window: status
messages displayed here
Operational state (OK,
ALERT, or FAULT)
When activity occurs, each
supply entry toggles with
activity status related to
cassette (printing, calibrating,
media jam)
HELP
