Comau C3G Plus - Parallel I;O C3 G-ACI 32 AC Input Module

C3G-ACI 32 AC INPUT MODULE
VME Input module compatible with 110 Vac 32 channel slave type interface, with signalling through activation of LEDs on front panel
when an input is present.
It may be added on the Control Unit rack starting from the first free slot at the right of the basic configuration modules.
TECHNICAL CHARACTERISTICS
INPUT
Number of inputs
32
Number of common returns (0 V)
4
Input voltage for channel activation
79.0 to 132.0 Vac
Input voltage for channel deactivation
0.0 to 20.0 Vac
Input current with channel activated
4.0 to 15.0 mA
Maximum input current with channel not activated
1.5 mA
Operating frequency
47 to 63 Hz
SIGNAL ALLOCATION
SIGNAL
RED
LED
CONN. J3 PIN
(MOD. FRONT)
CONN. X3X PIN
(CABINET BASE)
SIGNAL
RED
LED
CONN. J3 PIN
(MOD. FRONT)
CONN. X3X PIN
(CABINET BASE)
INPUT 1
A1 A1 A1
INPUT 17
C1 C1 C1
INPUT 2
A2 A2 A2
INPUT 18
C2 C2 C2
INPUT 3
A3 A3 A3
INPUT 19
C3 C3 C3
INPUT 4
A4 A4 A4
INPUT 20
C4 C4 C4
INPUT 5
A5 A5 A5
INPUT 21
C5 C5 C5
INPUT 6
A6 A6 A6
INPUT 22
C6 C6 C6
INPUT 7
A7 A7 A7
INPUT 23
C7 C7 C7
INPUT 8
A8 A8 A8
INPUT 24
C8 C8 C8
INPUT 9
B1 B1 B1
INPUT 25
D1 D1 D1
INPUT 10
B2 B2 B2
INPUT 26
D2 D2 D2
INPUT 11
B3 B3 B3
INPUT 27
D3 D3 D3
INPUT 12
B4 B4 B4
INPUT 28
D4 D4 D4
INPUT 13
B5 B5 B5
INPUT 29
D5 D5 D5
INPUT 14
B6 B6 B6
INPUT 30
D6 D6 D6
INPUT 15
B7 B7 B7
INPUT 31
D7 D7 D7
INPUT 16
B8 B8 B8
INPUT 32
D8 D8 D8
INPUT 1 ¸ 8 RET.
– AR A12
INP. 17 ¸ 24 RET.
– CR C12
INPUT 9 ¸ 16 RET.
– BR B12
INP. 25 ¸ 32 RET.
– DR D12
FUSE (NOT USED)
FUSE – –
C3G Plus INTEGRATION GUIDE
00/1097 4-25
parallel i/o C3G-ACI

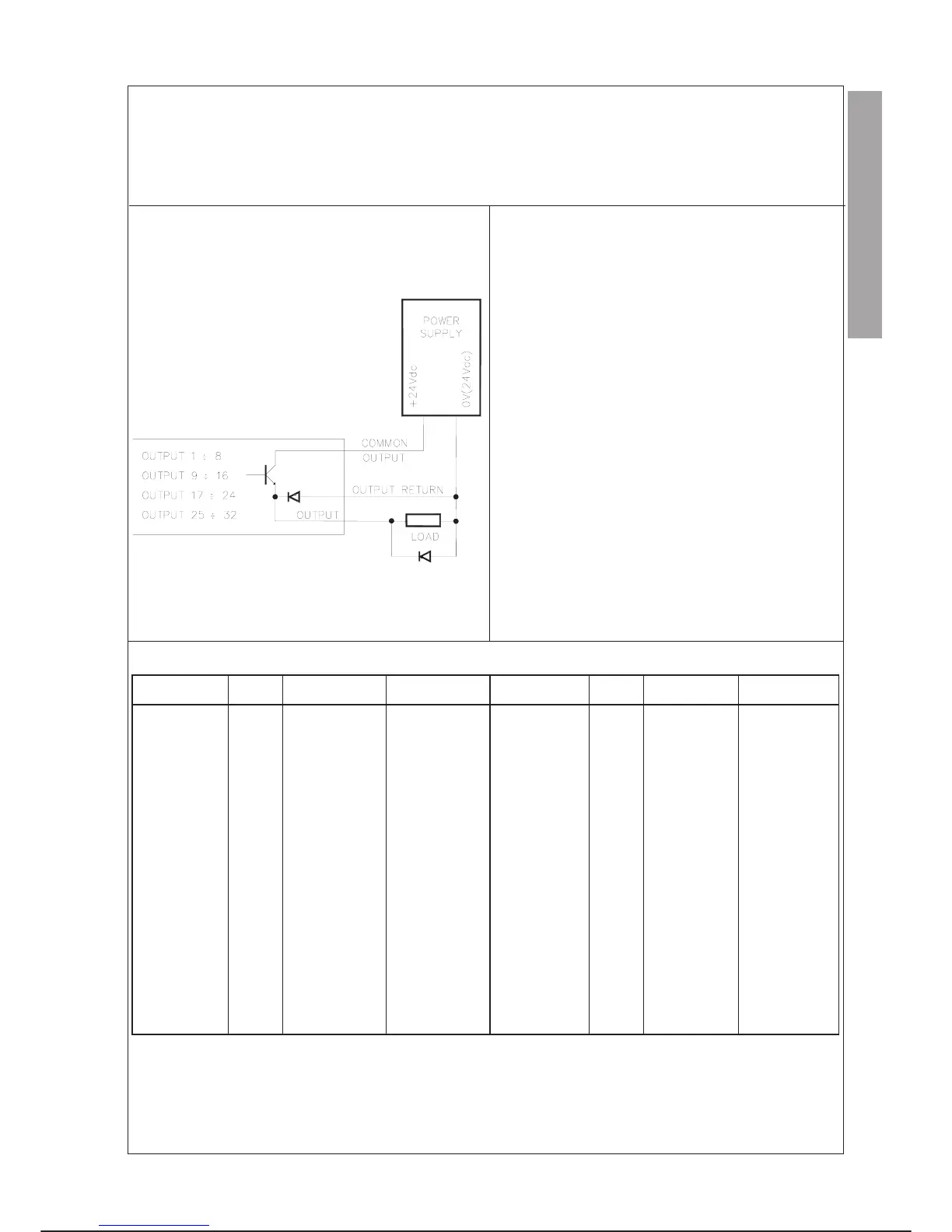

EXAMPLE OF CONNECTION
