Comau C3G Plus - Commands and Indicators

Commands and indicators (continued)

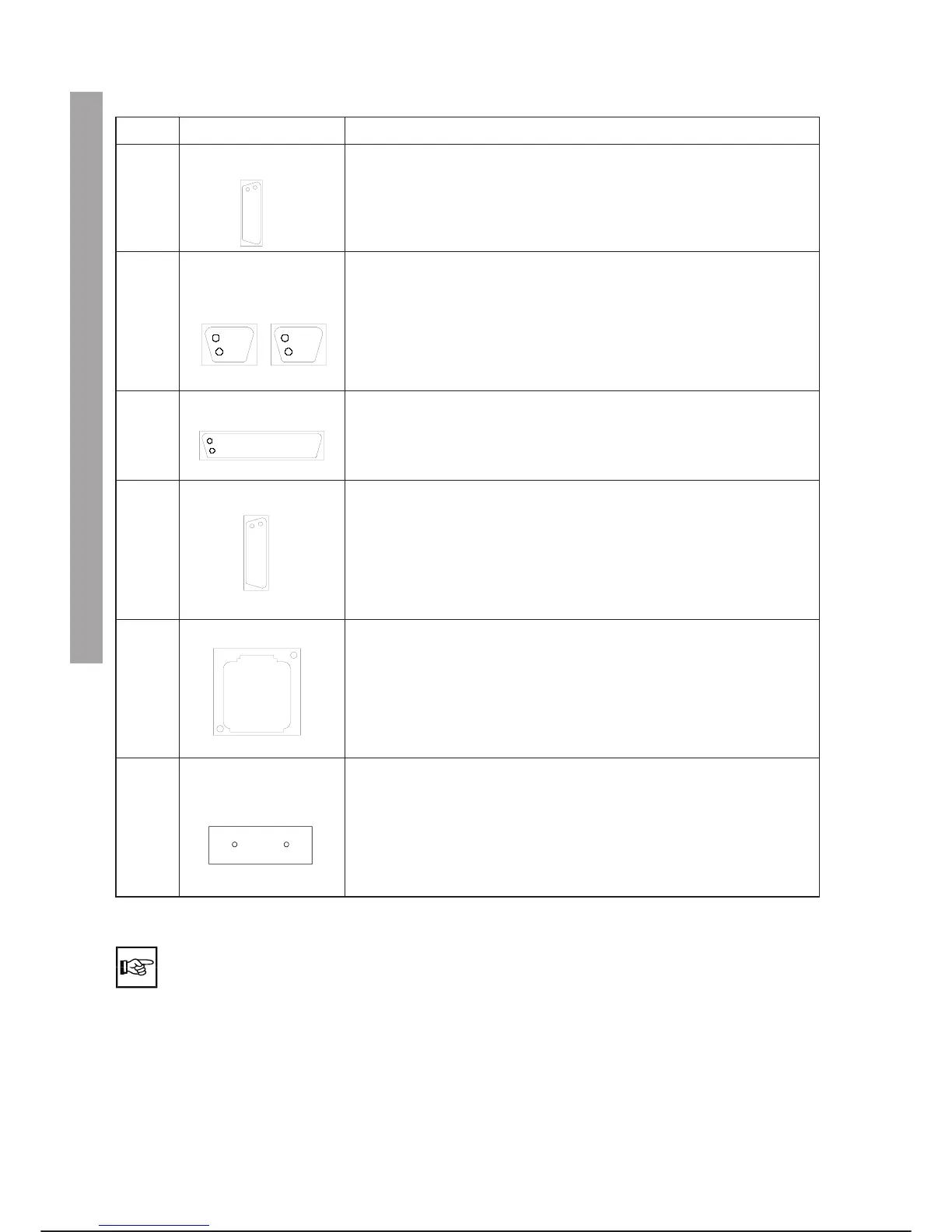

REF. SYMBOL and NAME DESCRIPTION
4.
COMP: connector
Serial communication port for connecting a PC on which it is possible to
install the C3G
Plus video/keyboard emulator and download/unload
programmes.
25-pin connector (female).
5.
COM0: and COM1: con
-
nectors
Serial communication ports available for the connection of a PC or other
devices. If the floppy disk unit is installed, serial port COM0: is not avail
-
able. 9-pin connectors (male).
Of the two serial ports only COM0: can be utilized to load system soft
-
ware.
6.
X113 connector
37 pin connector (female) for connecting the test device
7.
PAR: connector
Parallel port for system software fast downloading.
8.
230 Vac socket 230 Vac 6 A service socket Schuko type. (Only for Rel 1.x).
9.
Housing for Floppy Disk
unit
Panel that is removed to install a Floppy Disk unit.
Two SDB3 modules are provided for C3G Plus versions DDMP-DDHP. Connectors
COM0:/COM1: (ref. 5) and X113 (ref. 6) of the SDB3-2 module cannot be used. Connectors
of SDB3 module should be used for any connections.
OPERATOR INTERFACE C3G Plus
3-2 06/0400
CONTROL PANEL AND SERIAL AND PARALLEL INTERFACES
COM P:
