C3G-RLO 16 AC 2A RELAY OUTPUT MODULE
VME output module compatible with slave type interface capable of supporting 16 dc or ac outputs (max 2 A), with signalling through ac
-
tivation of LEDs on the front panel when the outputs are active.
It may be added on the Control Unit rack starting from the first free slot at the right of the base configuration modules.
Each output channel is protected individually by fuse. For this module fuse monitoring is not provided.
The coil of the relays must be supplied externally at 24 Vdc.
TECHNICAL CHARACTERISTICS
OUTPUT
Number of outputs 16
Number of common returns 4
Fuses (one for each common return)
4x3A250V“Normal Blow”5x20
Type of output Relay
Operating voltage
4.5 to 36.0 Vdc
20.0 to 265 Vac
Maximum output current with channel not activated 0.0 mA
Repetition frequency 6Hz
Coil 24 Vdc ± 10%
Maximum contact resistance
With 0.5 to 2 A current
With 10 to 500 mA current
Maximum output current
CHANNELS ACTIVE RESISTIVE INDUCTIVE
SIMULTANEOUSLY LOAD LOAD
CURRENT CURRENT
@ ta = 45°C @ ta = 45°C
AC/DC AC DC
8 2A 1A 0,85A
16 1,5A
SIGNAL ALLOCATION
SIGNAL
RED
LED
CONN. J3 PIN
(MOD. FRONT)
CONN. X3X PIN
(CABINET BASE)
SIGNAL
RED
LED
CONN. J3 PIN
(MOD. FRONT)
CONN. X3X PIN
(CABINET BASE)
OUTPUT 1
A1 A1 A1
OUTPUT 9
C1 C1 C1
OUTPUT 2
A2 A2 A2
OUTPUT 10
C2 C2 C2
OUTPUT 3
A3 A3 A3
OUTPUT 11
C3 C3 C3
OUTPUT 4
A4 A4 A4
OUTPUT 12
C4 C4 C4
OUTPUT 5
B1 B1 B1
OUTPUT 13
D1 D1 D1
OUTPUT 6
B2 B2 B2
OUTPUT 14
D2 D2 D2
OUTPUT 7
B3 B3 B3
OUTPUT 15
D3 D3 D3
OUTPUT 8
B4 B4 B4
OUTPUT 16
D4 D4 D4
OUT. 1 ¸ 4 COM.
– AC A10
OUT. 9 ¸ 12 COM.
– CC C10
OUT. 1 ¸ 4 RET.
– AR A12
OUT. 9 ¸ 12 RET.
– CR C12
OUT. 5 ¸ 8 COM.
– BC B10
OUT. 13 ¸ 16 COM.
– DC D10
OUT. 5 ¸ 8 RET.
– BR B12
OUT. 13 ¸ 16 RET.
– DR D12
USER POWER
+24 Vcc
–C7 C7
USER POWER 0V
(+24 Vcc)
–C8 C8
FUSE (NOT
USED)
FUSE – –
INTEGRATION GUIDE C3G Plus
4-30 01/0498

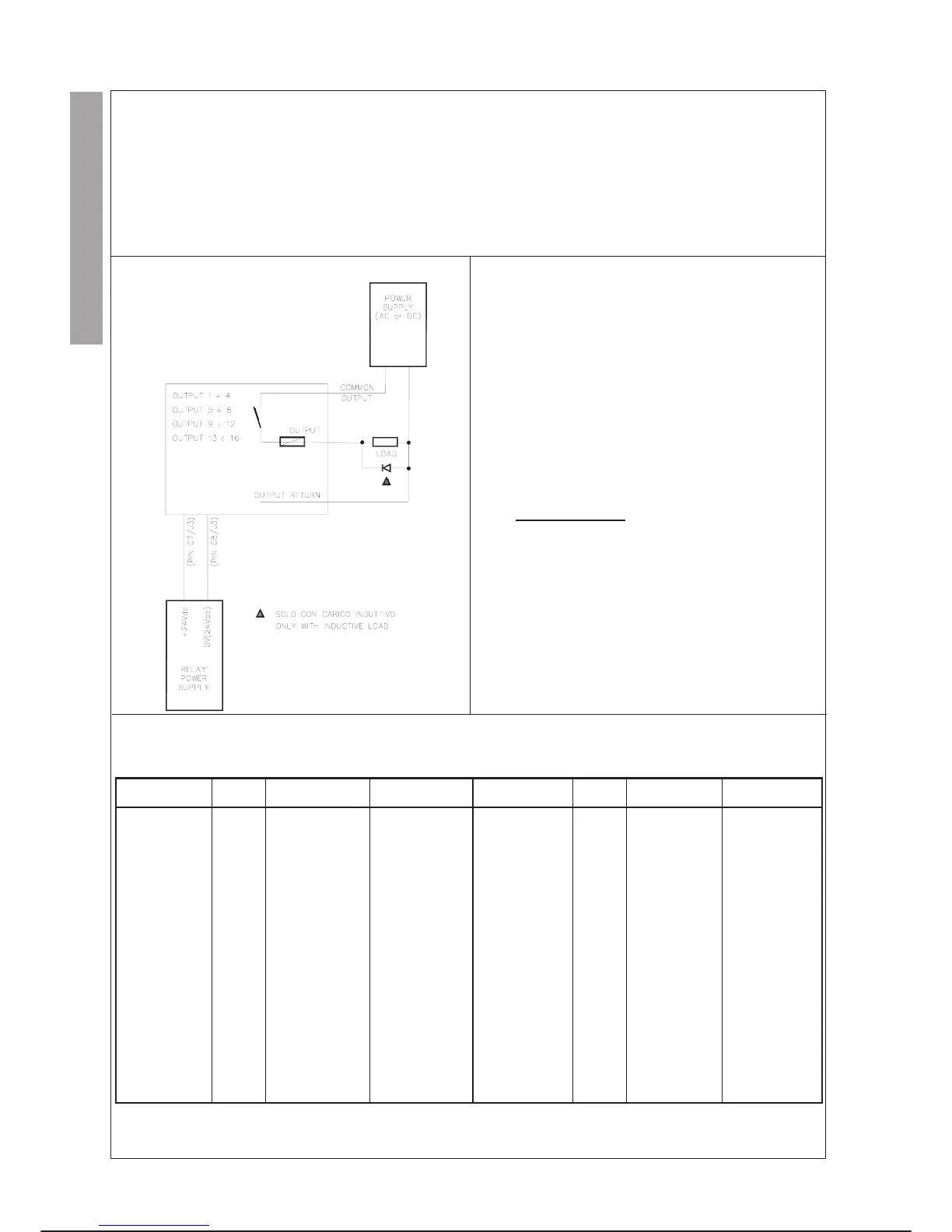

PARALLEL I/O C3G-RLO
EXAMPLE OF CONNECTION
R=
(4,5 x 0,05)
+ 0,15 W
(Load current)
