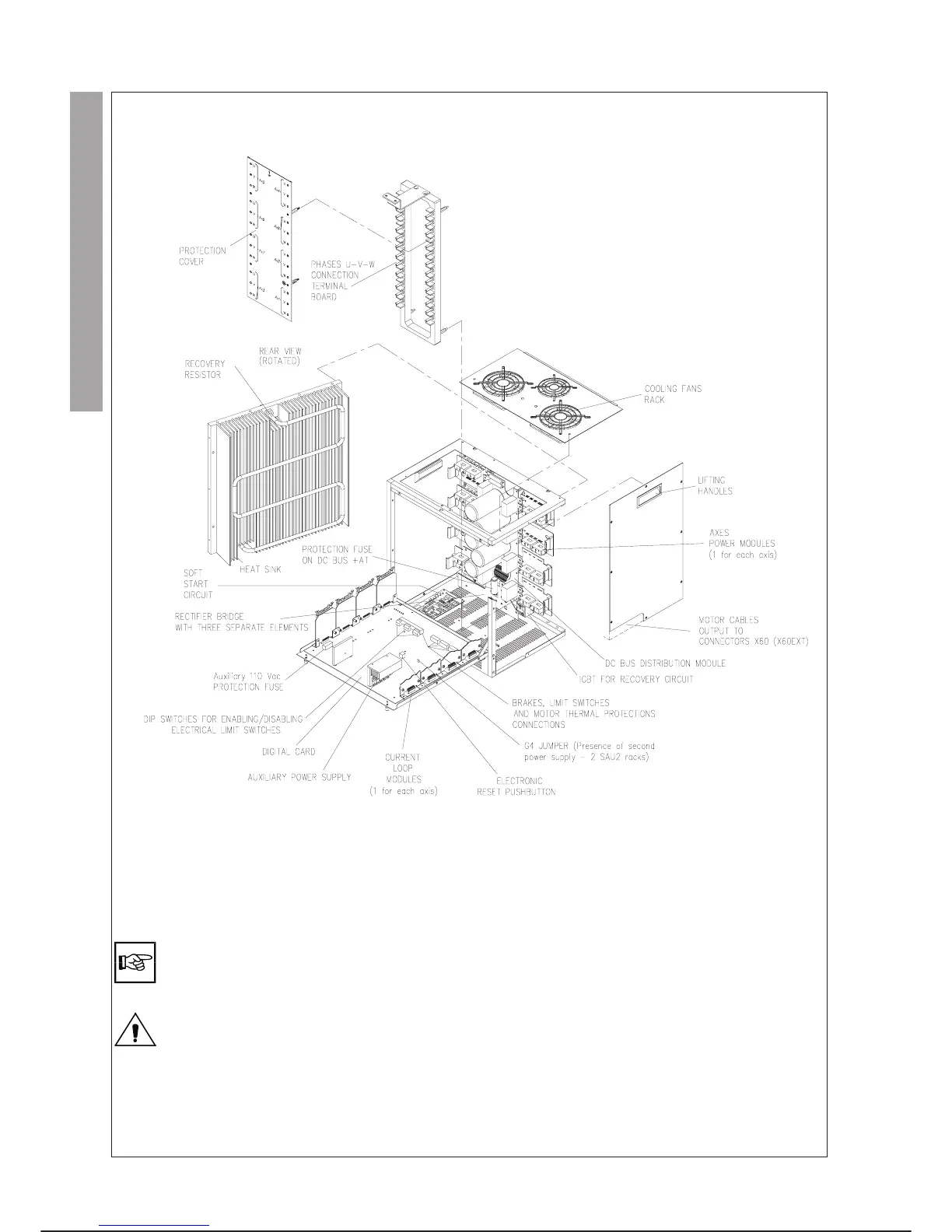

SAU2 MAIN COMPONENTS LAYOUT
ADDITIONAL AXES
If it is decided to add an axis to the configuration of the SAU2 (e.g.: axis 7) a special kit is available including
assembly instructions and composed as mentioned in the SAU2 CONFIGURATIONS paragraph.
When connecting the power modules the phase sequence necessary is U-V-W
When working on the SAU2 follow the rules of safety and the instructions given in the re
-
placements paragraph.
MAINTENANCE C3G Plus
00/1097 7-58
SERVO AMPLIFIERS UNIT SAU2
