C3G-DHO 32 DC 2A OUTPUT MODULE
VME output module compatible with slave type interface capable of supporting 32 dc Outputs (2 A) with signalling through activation of
LEDs on the front panel when the outputs are active.
It may be added on the Control Unit rack starting from the first free slot at the right of the basic configuration modules.
The outputs are protected by fuse with specific indication on the monitoring system if it is tripped.
TECHNICAL CHARACTERISTICS
OUTPUT
Number of outputs
32
Number of common returns
4
Fuses (one for each common return)
8 A 125 V “Normal Blow”5x20
Type of output
Transistor
Operating voltage
4.5 to 36.0 Vdc
Maximum output current with channel not activated
0.2 mA
Maximum output current
CHANNELS ACTIVE CURRENT CURRENT
SIMULTANEOUSLY @ ta = 25°C @ ta = 45°C
4 2A 1,5A
8 1,5A 1A
16 1A 0,7A
32 0,7A 0,4A
Protection from transistors
by diode
SIGNAL ALLOCATION
SIGNAL
RED
LED
CONN. J3 PIN
(MOD. FRONT)
CONN. X3X PIN
(CABINET BASE)
SIGNAL
RED
LED
CONN. J3 PIN
(MOD. FRONT)
CONN. X3X PIN
(CABINET BASE)
OUTPUT 1
A1 A1 A1
OUTPUT 17
C1 C1 C1
OUTPUT 2
A2 A2 A2
OUTPUT 18
C2 C2 C2
OUTPUT 3
A3 A3 A3
OUTPUT 19
C3 C3 C3
OUTPUT 4
A4 A4 A4
OUTPUT 20
C4 C4 C4
OUTPUT 5
A5 A5 A5
OUTPUT 21
C5 C5 C5
OUTPUT 6
A6 A6 A6
OUTPUT 22
C6 C6 C6
OUTPUT 7
A7 A7 A7
OUTPUT 23
C7 C7 C7
OUTPUT 8
A8 A8 A8
OUTPUT 24
C8 C8 C8
OUTPUT 9
B1 B1 B1
OUTPUT 25
D1 D1 D1
OUTPUT 10
B2 B2 B2
OUTPUT 26
D2 D2 D2
OUTPUT 11
B3 B3 B3
OUTPUT 27
D3 D3 D3
OUTPUT 12
B4 B4 B4
OUTPUT 28
D4 D4 D4
OUTPUT 13
B5 B5 B5
OUTPUT 29
D5 D5 D5
OUTPUT 14
B6 B6 B6
OUTPUT 30
D6 D6 D6
OUTPUT 15
B7 B7 B7
OUTPUT 31
D7 D7 D7
OUTPUT 16
B8 B8 B8
OUTPUT 32
D8 D8 D8
OUT 1 ¸ 8 COM.
– AC A10
OUT. 17 ¸ 24 COM.
– CC C10
OUT 1 ¸ 8 RET.
– AR A12
OUT. 17 ¸ 24 RET.
– CR C12
OUT 9 ¸ 16 COM.
– BC B10
OUT. 25 ¸ 32 COM.
– DC D10
OUT 9 ¸ 16 RET.
– BR B12
OUT. 25 ¸ 32 RET.
– DR D12
OUT. COM.
EARTH FUSE
FUSE – –
INTEGRATION GUIDE C3G Plus
4-28 08/0702

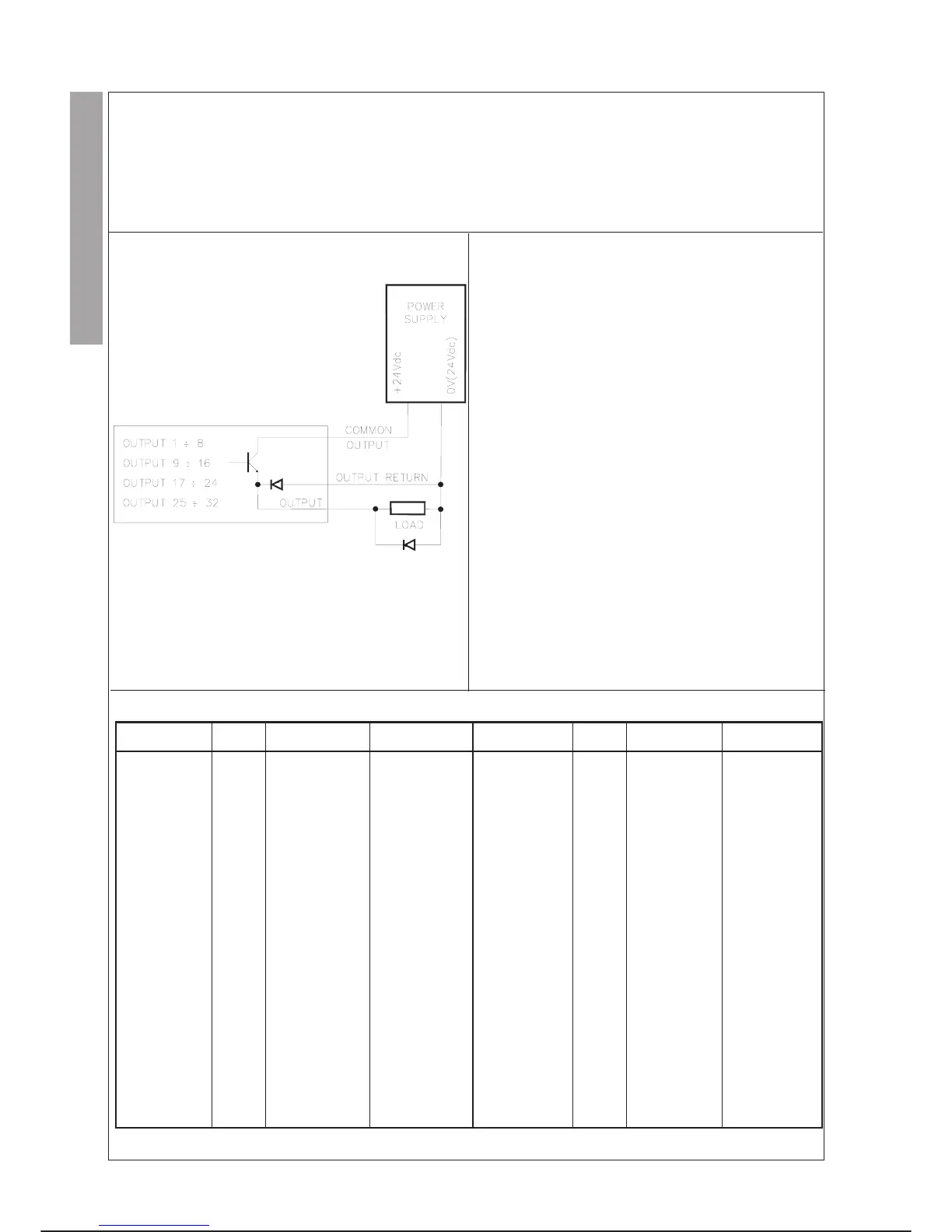

EXAMPLE OF CONNECTION
PARALLEL I/O C3G-DHO
