C3G-ACO 16 AC 1A OUTPUT MODULE
VME output module compatible with slave type interface capable of supporting 16 ac Outputs (1 A) with signalling through activation of
LEDs on the front panel when the outputs are active.
It may be added on the Control Unit rack starting from the first free slot at the right of the basic configuration modules.
The outputs are protected by fuse with specific indication on the monitoring system if it is tripped.
TECHNICAL CHARACTERISTICS
OUTPUT
Number of outputs
16
Number of common returns
4
Fuses (one for each common return)
4x5A125V“Normal Blow”5x20
Type of output
Triac
Operating voltage
79.0 to 132.0 Vac
Maximum output current with channel not activated
6.0 mA at 60°C
Maximum voltage drop with 0.5 A load
1.8 Vac
Maximum output current
CHANNELS ACTIVE CURRENT CURRENT
SIMULTANEOUSLY @ ta = 25°C @ ta = 45°C
16 1 A 0,4 A
Supply frequency
47 to 63 Hz
SIGNAL ALLOCATION
SIGNAL
RED
LED
CONN. J3 PIN
(MOD. FRONT)
CONN. X3X PIN
(CABINET BASE)
SIGNAL
RED
LED
CONN. J3 PIN
(MOD. FRONT)
CONN. X3X PIN
(CABINET BASE)
OUTPUT 1
A1 A1 A1
OUTPUT 9
C1 C1 C1
OUTPUT 2
A2 A2 A2
OUTPUT 10
C2 C2 C2
OUTPUT 3
A3 A3 A3
OUTPUT 11
C3 C3 C3
OUTPUT 4
A4 A4 A4
OUTPUT 12
C4 C4 C4
OUTPUT 5
B1 B1 B1
OUTPUT 13
D1 D1 D1
OUTPUT 6
B2 B2 B2
OUTPUT 14
D2 D2 D2
OUTPUT 7
B3 B3 B3
OUTPUT 15
D3 D3 D3
OUTPUT 8
B4 B4 B4
OUTPUT 16
D4 D4 D4
OUT 1 ¸ 4 COM.
– AC A10
OUT. 9 ¸ 12 COM.
– CC C10
OUT 1 ¸ 4 RET.
– AR A12
OUT. 9 ¸ 12 RET.
– CR C12
OUT 5 ¸ 8 COM.
– BC B10
OUT. 13 ¸ 16 COM.
– DC D10
OUT 5 ¸ 8 RET.
– BR B12
OUT. 13 ¸ 16 RET.
– DR D12
OUT. COM.
EARTH FUSE
FUSE – –
C3G Plus INTEGRATION GUIDE
01/0498 4-29

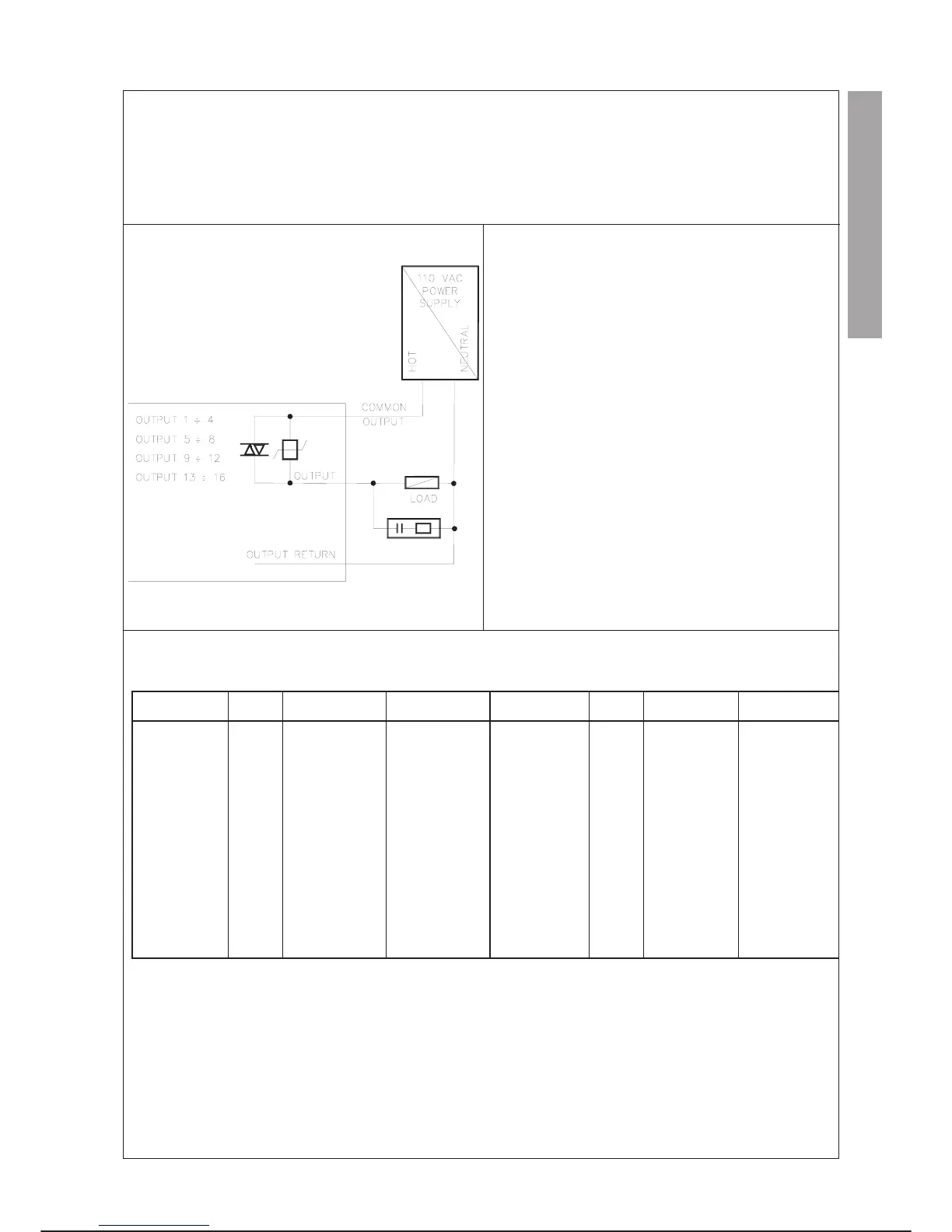

EXAMPLE OF CONNECTION
parallel i/o C3G-ACO
