Yes
Configurable
System Dry ALM 2
RU Dry Contact 2 Alarm
Yes
Configurable
System Dry ALM 3
RU Dry Contact 3 Alarm
Yes
Configurable
System Dry ALM 4
RU Dry Contact 4 Alarm
Yes
Configurable
System Dry ALM 5
RU Dry Contact 5 Alarm
Yes
Configurable
System Dry ALM 6
RU Dry Contact 6 Alarm
Yes
Configurable
System Dry ALM 7
RU Dry Contact 7 Alarm
Yes
Configurable
System Dry ALM 8
RU Dry Contact 8 Alarm
Yes
Configurable
System OP RX Alarm
FOU to RU Optical Alarm
Yes
Configurable
System OP TX Alarm
FOU to RU Optical Alarm
Yes
Configurable
FOU 1 Comm. Fault Alarm
MU to FOU1 Comm Fault
Yes
Configurable
FOU 2 Comm. Fault Alarm
MU to FOU2 Comm Fault
Yes
Configurable
FOU 3 Comm. Fault Alarm
MU to FOU3 Comm Fault
Yes
Configurable
FOU 4 Comm. Fault Alarm
MU to FOU4 Comm Fault
Yes
Configurable
AP 1 Comm. Fault Alarm
Comba AP 1, hidden when no AP is
connected
Yes
Configurable
AP 2 Comm. Fault Alarm
Comba AP 2, hidden when no AP is
connected
Yes
Configurable
AP 3 Comm. Fault Alarm
Comba AP 3, hidden when no AP is
connected
Yes
Configurable
AP 4 Comm. Fault Alarm
Comba AP 4, hidden when no AP is
connected
Relationships between different alarms:

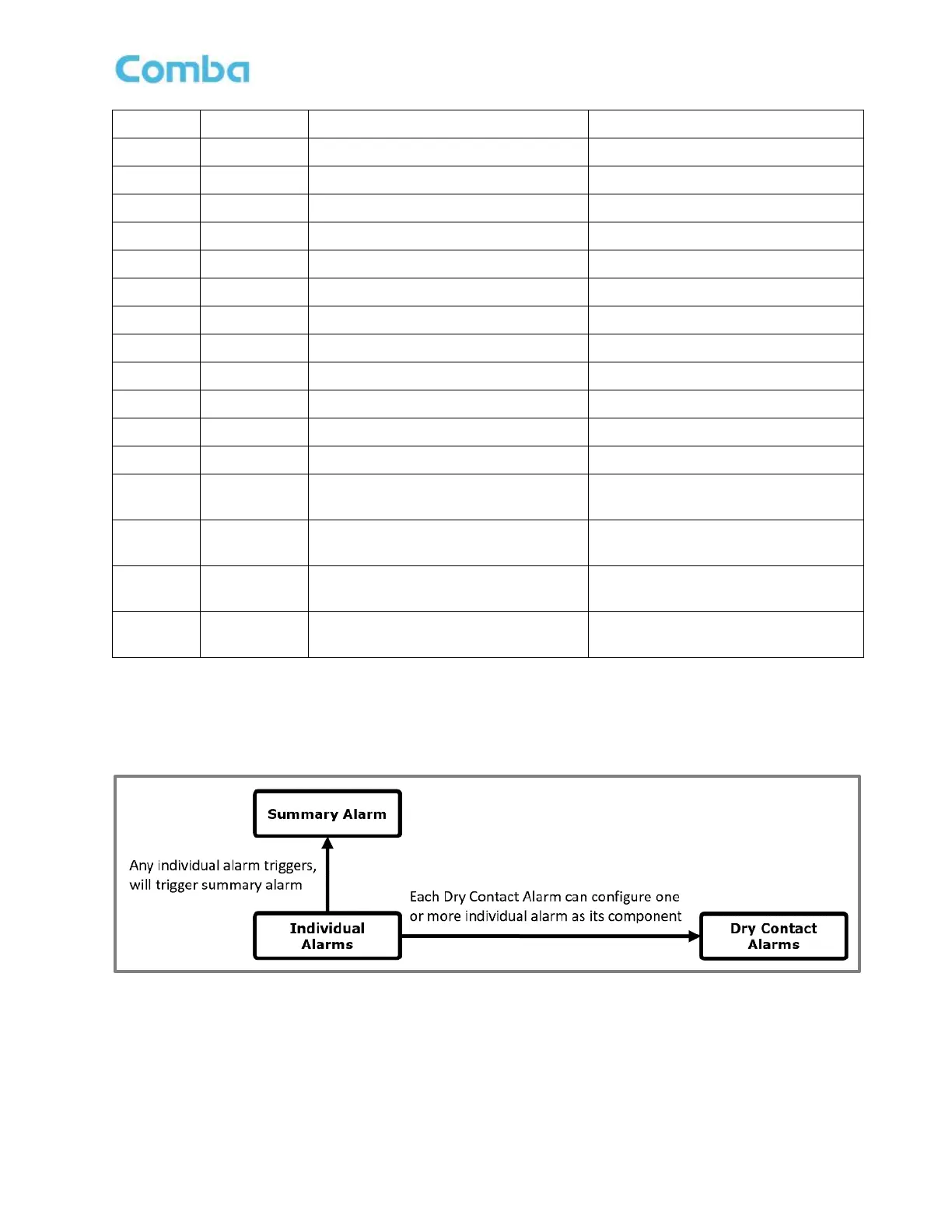

Figure 183: Alarms – Relationship between Individual, Dry Contact, and Summary Alarms
