4. Set up the System Type. This tells the device which of its current and voltage inputs are valid, which are to be ignored, and
if neutral is connected. This sets the type of system which can be one of the following:
• Single Phase: A+ N
• Single Phase: A + B
• Single Split Phase: A + B+ N
• Phase Delta: A + B + C
• Phase Y: A + B + B + N
5. Set up the CTRatio Primary. The minimum value is 5. The maximum value is 32000.

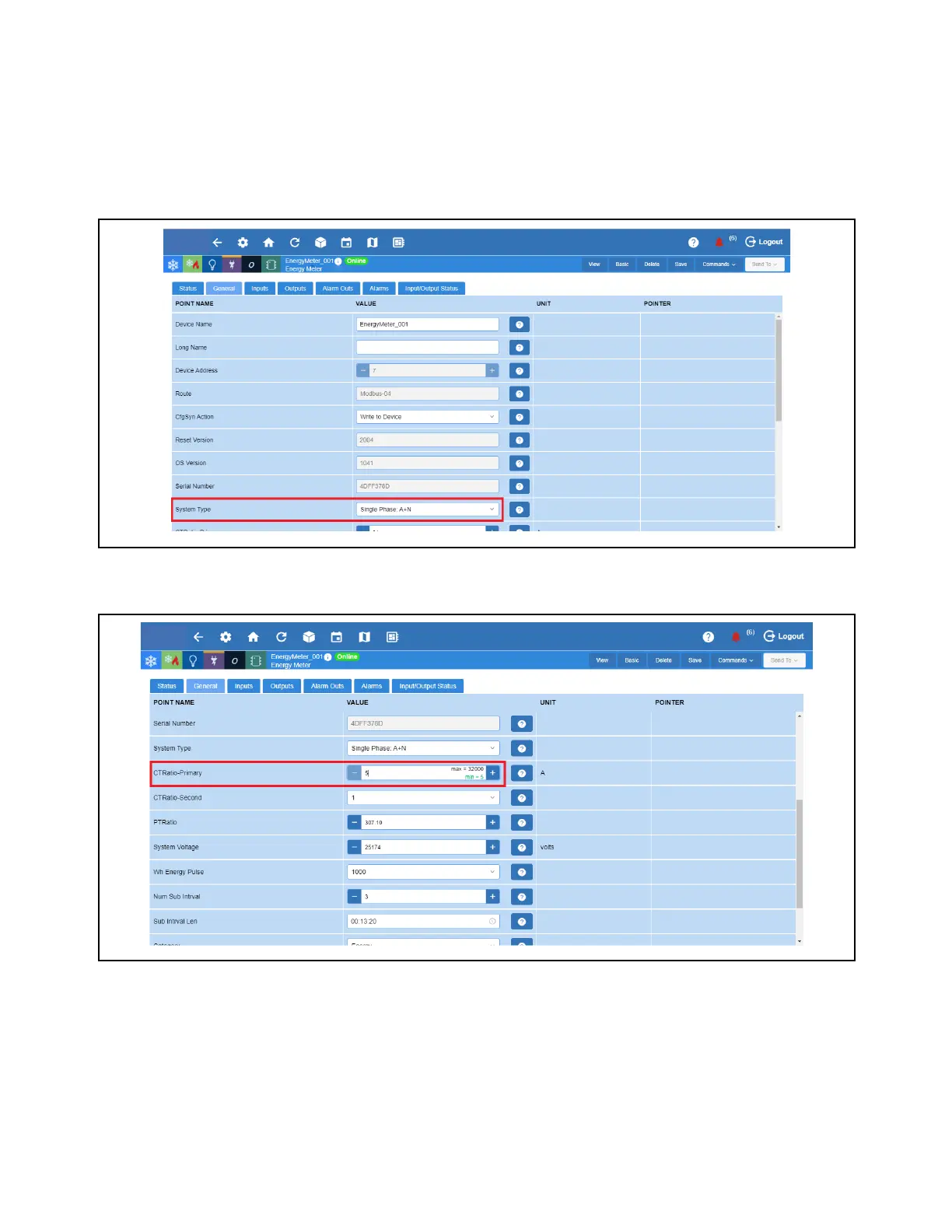

Set Up System Type
Set Up CTRatio Primary
