8. Set up the System Voltage. The nominal Line to Line Voltage for the system. This is used by the device to
calculate the theoretical maximum system power, and as the reference voltage for setting the Phase Loss
threshold. Maximum is 32000 Volts.
Note: The meter device will reject settings that are not within the device's operating range when divided by the PT ratio.
9. Set up the Wh Energy Pulse. This is the Wh Energy per Pulse Output Contact Closure. If the meter cannot find a pulse
duration that will keep up with the maximum system power, it will reject the new value. In this case, a larger value can be
used and select Save.

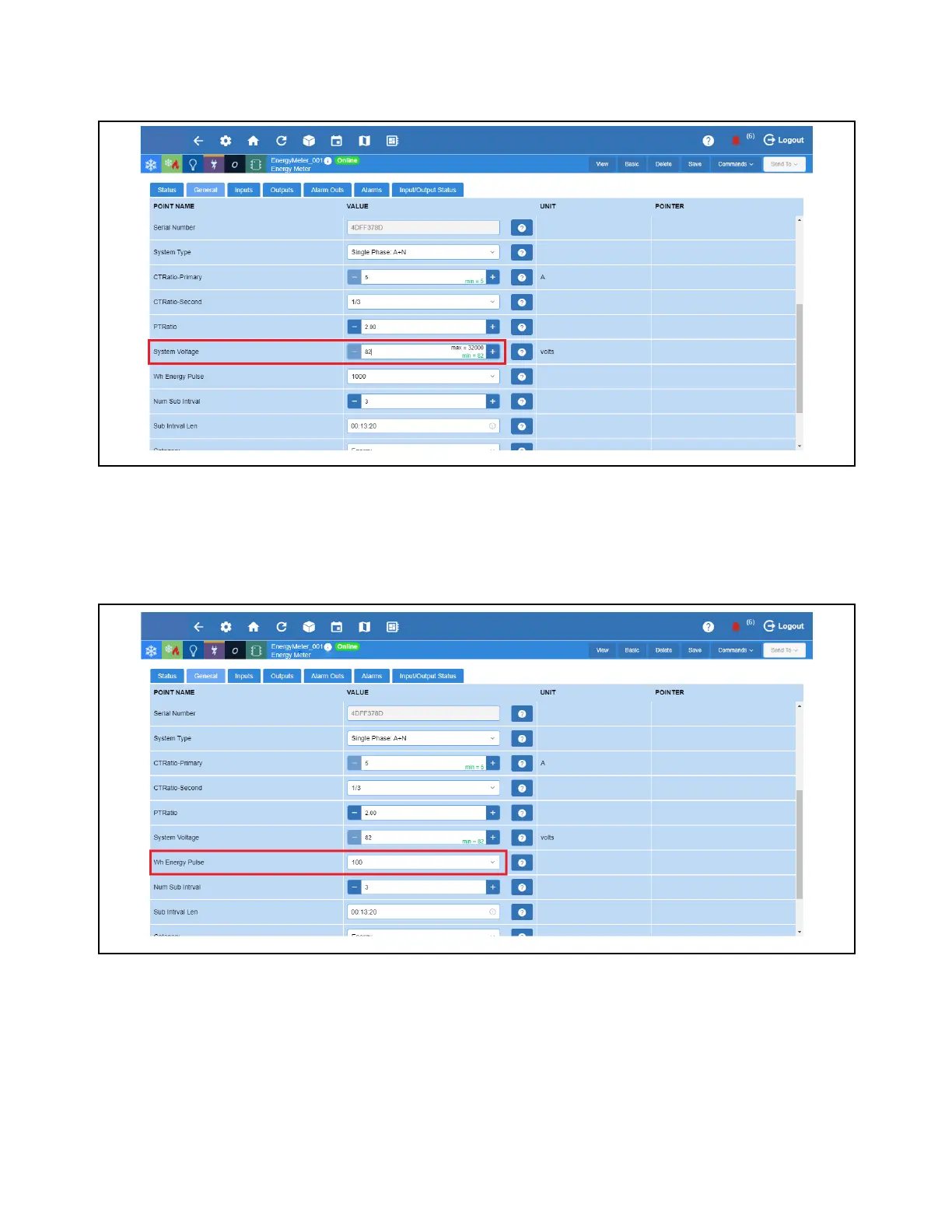

Set Up System Voltage
Set Up Wh Energy Pulse
