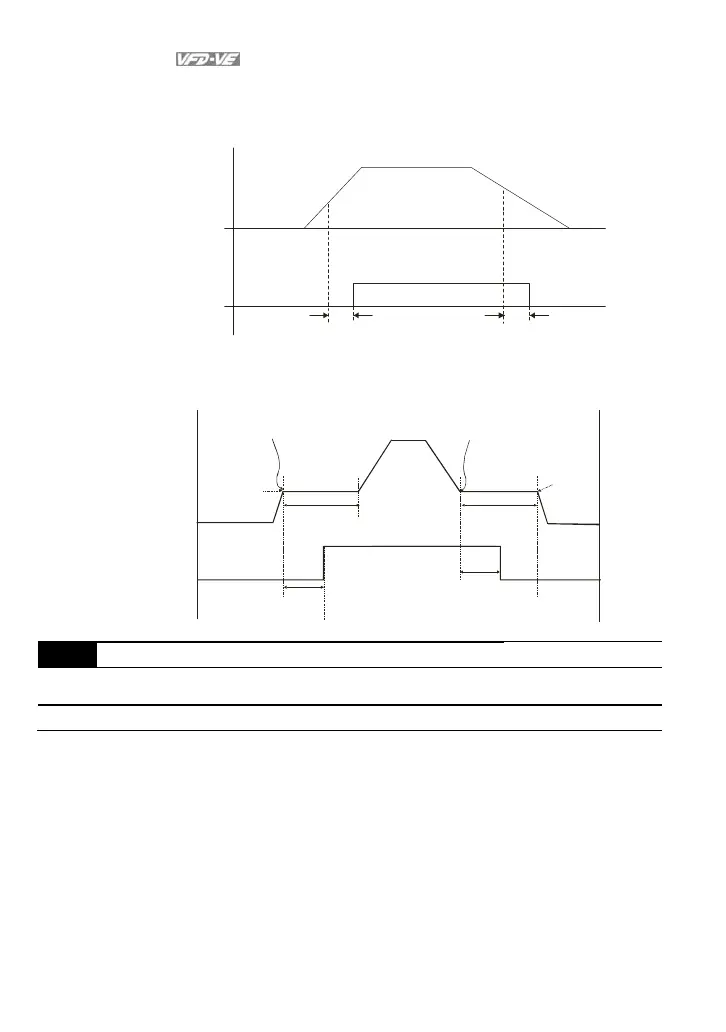

Example of crane function
02-3102-31
Output
Frequency
Freq. command>02-33
& output current >02-32
Freq. command<02-33
or output current <02-32
multi-function output
MO=42 (Active when
Fcom>=02-33, output
current>02-32 and time
>02-31)
It is recommended to be used with Dwell function (Pr.07-15 to Pr.07-18) as shown in the following:
Multi-function output
MO= 42
( Activate when
Fcmd >= 02-33
output current > 02-32
Time > 02-31)
07-16 Dwell
Freq.
at Accel.
07-15
Dwell Time at Accel.
Output Freq.
02-31
Brake Delay Time
Set 07-16=02-33and
output current >02-32
07-17
Dwell Time atDecel.
Set 07-18=02-33 and
output current <02-32
07-18 Dwell Freq.
at Decel.
02-31
Brake Delay Time
02-15  Multi-output Direction Unit:1
Control
mode
VF VFPG SVC FOCPG TQCPG
Factory setting: 0
Settings 0 ~ 65535
 The setting of this parameter is decimal value.
 This parameter is set via bit setting. If a bit is 1, the corresponding output acts in the
opposite way.
Example:
If Pr02-11=1 and Pr02-15=0, Relay 1 RA-RC is closed when the drive runs and is open
when the drive is stopped.
If Pr02-11=1 and Pr02-15=1, Relay 1 RA-RC is open when the drive runs and is closed
when the drive is stopped.
