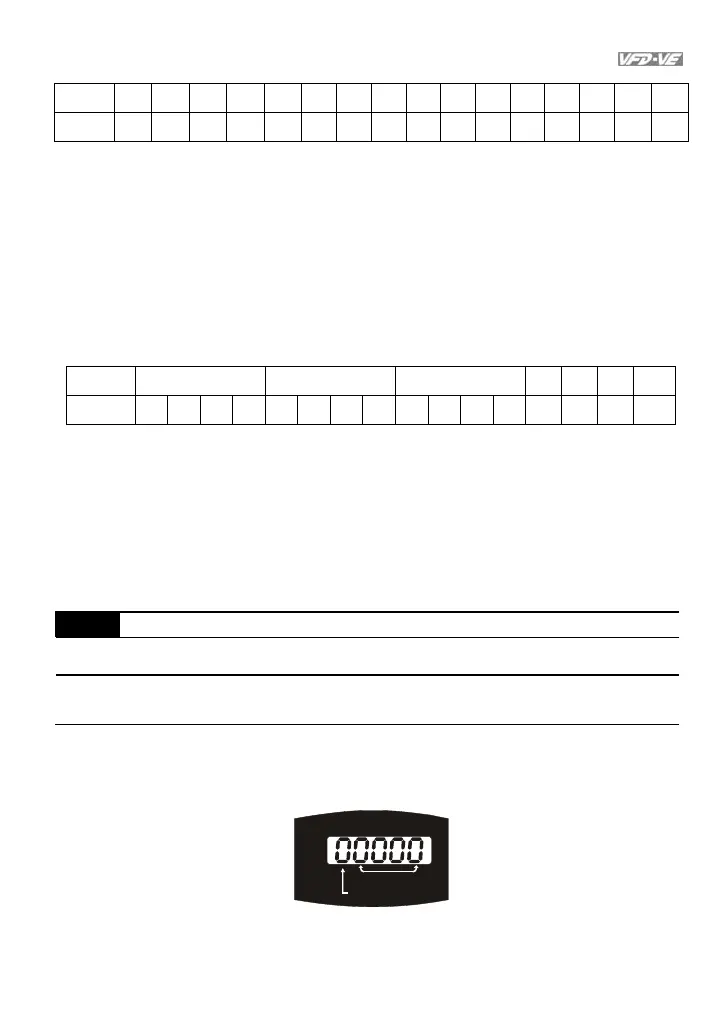

Chapter 4 Parameters
4-51
Terminal MI14 MI13 MI12 MI11 MI10 MI9 MI8 MI7 MI6 MI5 MI4 MI3 MI2 MI1 REV FWD
Status 0 0 0 0 0 0 0 0 1 0 0 0 0 1 1 0
If REV, MI1 and MI6 are ON, the value is 0000 0000 1000 0110 in binary and 0086H in HEX.
When Pr.00-04 is set to “16” or “19”, it will display “0086” with LED U is ON on the keypad KPV-
CE01. The setting 16 is the status of digital input by Pr.02-10 setting and the setting 19 is the
corresponding CPU pin status of digital input. User can set to 16 to monitor digital input status
and then set to 19 to check if the wire is normal.
4. Assume that MRA: Pr.02-11 is set to 9 (Drive ready). After applying the power to the AC motor
drive, if there is no other abnormal status, the contact will be ON. The display status will be
shown as follows.
Terminal Reserved Reserved Reserved MO2 MO1 RA MRA
Status 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1
At the meanwhile, if Pr.00-04 is set to 17 or 20, it will display 0001 with LED U is ON on the
keypad. The setting 17 is the status of digital output by Pr.02-15 setting and the setting 20 is the
corresponding CPU pin status of digital output. User can set 17 to monitor the digital output
status and then set to 20 to check if the wire is normal.
5. When Pr.00-04 is set to 24, user can get the difference between the pulse command and actual
motor position to adjust Pr.11-18 by this display.
00-05 User Defined Coefficient K
Control
mode
VF VFPG SVC FOCPG TQCPG
Factory setting: 0
Settings Digit 4: decimal point number (0 to 3)
Digit 0-3: 40 to 9999
It is used digital setting method
Digital 4: decimal point number (0: no decimal point, 1: 1 decimal point and so on.)
Digit 0-3: 40 to 9999 (the corresponding value for the max. frequency).
U
F
H
01234
decimal point number
corresponding value
Digital
For example, if use uses rpm to display the motor speed and the corresponding value to the 4-pole
motor 60Hz is 1800. This parameter can be set to 01800 to indicate that the corresponding value for
60Hz is 1800rpm. If the unit is rps, it can be set 10300 to indicate the corresponding value for 60Hz is
