Delta VFD-VE - Gain Value of Flux Weakening Curve for Motor 1; Gain Value of Flux Weakening Curve for Motor 2

Chapter 4 Parameters
4-183
Settings 0 to 200%
 After finishing estimating and set Pr.11-00 to bit 0=1 (auto tuning), using Pr.11-04 to
reduce overshoot. Please adjust PDFF gain value by actual situation.
 This parameter will be invalid when Pr.05-12 is set to 1.

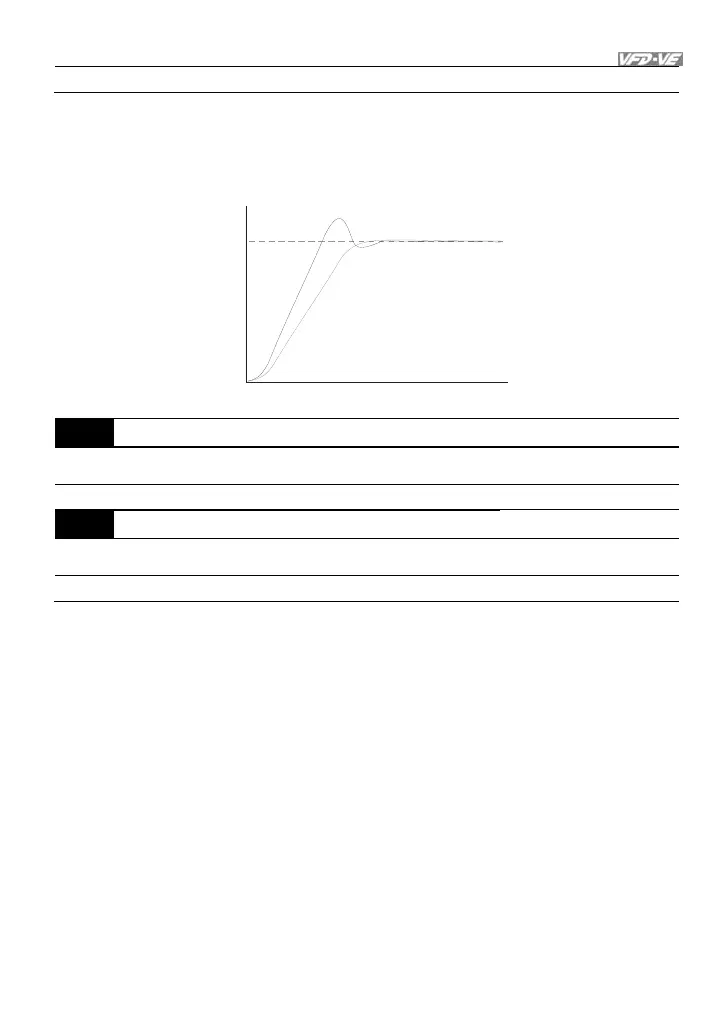

PI
PDFF
Time
frequency
11-05  Gain Value of Flux Weakening Curve for Motor 1 Unit: 1
Control
mode
FOCPG TQCPG
Factory Setting: 90
Settings 0 to 200%
11-06  Gain Value of Flux Weakening Curve for Motor 2 Unit: 1
Control
mode
FOCPG TQCPG
Factory Setting: 90
Settings 0 to 200%
 Pr.11-05 is used to adjust the output voltage of flux weakening curve.
 For the spindle application, the adjustment method is
1. It is used to adjust the output voltage when exceeding rated frequency.
2. Monitor the output voltage
3. Adjust Pr.11-05 (motor 1) or Pr.11-06 (motor 2) setting to make the output voltage
reach motor rated voltage.
4. The larger number it is set, the larger output voltage you will get.
