Delta VFD-VE - B.1.2 Specifications for Brake Unit

Appendix B Accessories
B-6 Revision Apr. 2016, 07VE, SW V2.05

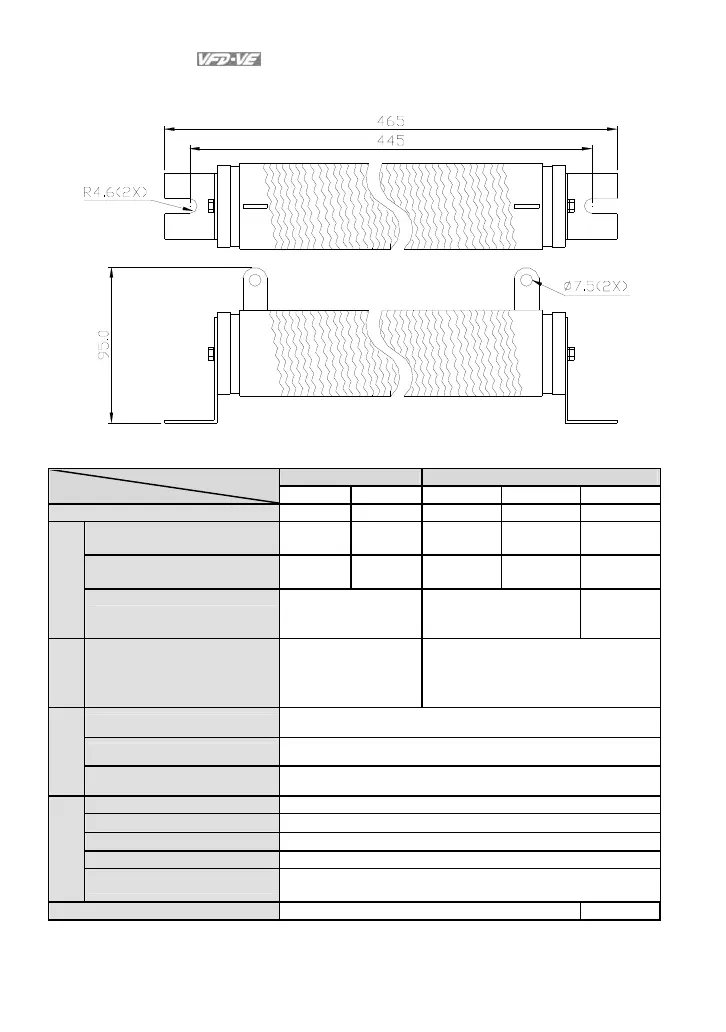

Order P/N: BR1K0W050, BR1K2W008, BR1K2W6P8, BR1K5W005, BR1K5W040
B.1.2 Specifications for Brake Unit
230V Series 460V Series
2015 2022 4030 4045 4132
Max. Motor Power (kW) 15 22 30 45 132
Output Rating
Max. Peak Discharge Current
(A) 10%ED
40 60 40 60 240
Continuous Discharge Current
(A)
15 20 15 18 75
Brake Start-up Voltage (DC)
330/345/360/380/400/
415±3V
660/690/720/760/800/83
0±6V
618/642/66
7/690/725/
750±6V
Input
Rating
DC Voltage 200~400VDC 400~800VDC
Protection
Heat Sink Overheat
Temperature over +95C (203
o
F)
Alarm Output Relay contact 5A 120VAC/28VDC (RA, RB, RC)
Power Charge Display Blackout until bus (+~-) voltage is below 50VDC
Environment
Installation Location Indoor (no corrosive gases, metallic dust)
Operating Temperature
-10C

+50C (14
o
F to 122
o
F)
Storage Temperature
-20C

+60C (-4
o
F to 140
o
F)
Humidity 90% Non-condensing
Vibration
9.8m/s
2
(1G) under 20Hz
2m/s
2
(0.2G) at 20~50Hz
Wall-mounted Enclosed Type IP50 IP10
