Chapter 4 Parameters
4-144
08-22 Wind Mode
Control
mode
VF VFPG SVC FOCPG TQCPG
Factory Setting: 0
Settings 0 Rewind
1 Unwind

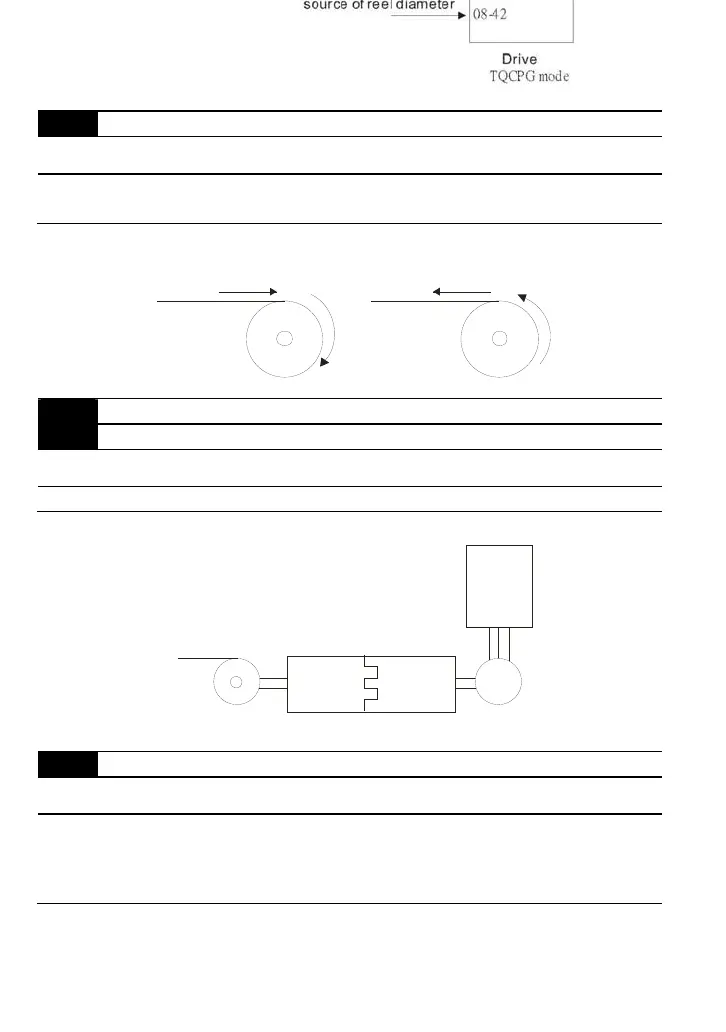

 When it is set to 0, the reel diameter (D) will increase. When it is set to 1, the reel
diameter will decrease as shown in the following diagram.
rewind
unwind
08-23  Mechanical Gear A at Reel Unit: 1
08-24  Mechanical Gear B at Motor Unit: 1
Control
mode
VF VFPG SVC FOCPG TQCPG
Factory Setting: 100
Settings 1 to 65535
 Pr.08-23 and Pr.08-24 are only for tension control mode.
applied in tension control mode
rewind/unwind
Gear A
Gear B
Gear ratio A:B
Motor
Drive
reel
08-25 Source of the Tension Command/Line Speed
Control
mode
VF VFPG SVC FOCPG
Factory Setting: 0
Settings 0 Parameter setting (Pr.08-26)
1 RS-485 communication setting (Pr.08-26)
2 Analog input (Pr. 03-00~03-02=14 PID target value of tension, 03-
00~03-02=12 line speed)
 When it is set to 0, it can adjust Pr.08-26 setting (PID Target Value of Tension/Line
Speed) by the digital keypad.
