Chapter 4 Parameters
4-150
get the reel diameter from the settings of Pr.08-23, Pr.08-24, Pr.10-01, Pr.10-00, Pr.08-50
and Pr.08-51.
When it is set to 3, the reel diameter can be calculated by analog input (Pr.03-00~03-02
is set to 13) and the corresponding value of 10V is Pr.08-43.

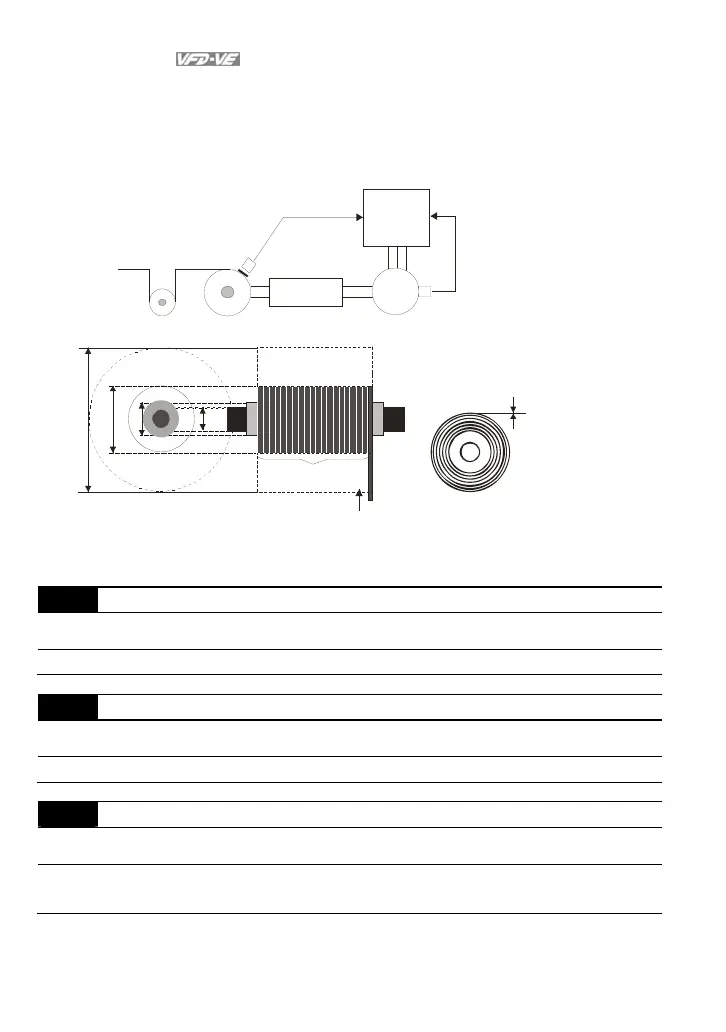

the path when
Pr. 08- 42 is set to 1
Driver
the pa t h w hen
Pr.08- 42 is set to 2
gear ratio
Motor
Encoder
proximity
switch/
encoder
Definition of reel diameter
AB
C
D
08-51
Material Thickness
infeed direction
08-50 Coil number
for eac h layer
A. 08-44 Empty reel diameter
B. 08-46/47/48 Initial reel diameter
C. 08-54 Current reel diameter
D. 08-43 M ax. reel diameter
08-43 Max. Reel Diameter Unit: 0.1
Control
mode
VF VFPG SVC FOCPG TQCPG
Factory Setting: 6000.0
Settings 1.0 to 6000.0mm
08-44 Empty Reel Diameter Unit: 0.1
Control
mode
VF VFPG SVC FOCPG TQCPG
Factory Setting: 1.0
Settings 1 to 6000.0mm
08-45 Source of Reel Diameter
Control
mode
VF VFPG SVC FOCPG TQCPG
Factory Setting: 0
Settings 0 RS-485 communication setting (Pr.08-46)
1 Analog input (Pr.03-00-Pr.03-02 is set to 13)
When it is set to 1, the corresponding value of 10V is Pr.08-43.
