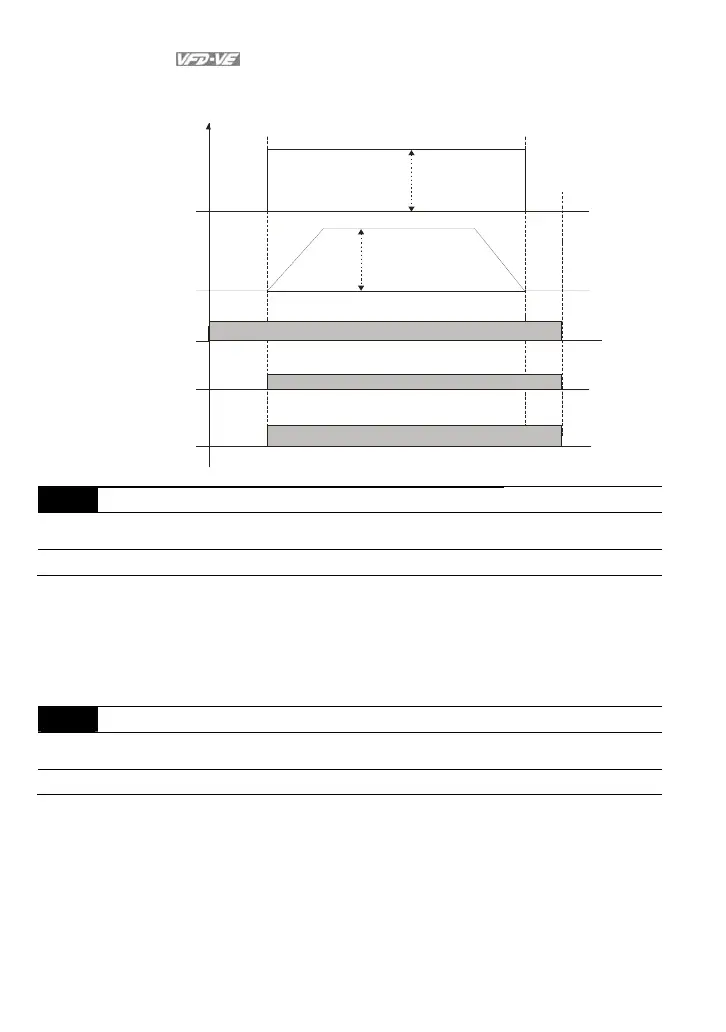

 If this parameter is used without DC brake, it will be invalid. Refer to the following
operation timing.
Multi-function output
(mechanical brake
release)
Pr.02-11 to 02-14=12
RUN
STOP
A
B=A
zer o
speed
zer o
speed
Time
frequency
command
output
frequency
RUN/STOP
mechanical brake
brake
brake
release
02-32  Output Current Level Setting for External Terminals Unit:1
Control
mode
VF VFPG SVC FOCPG TQCPG
Factory setting: 0
Settings 0~100%
 When output current is higher or equal to Pr.02-32, it will activate multi-function output
terminal (Pr.02-11 to Pr.02-14 is set to 27).
 When output current is lower than Pr.02-32, it will activate multi-function output
terminal (Pr.02-11 to Pr.02-14 is set to 28).
02-33  Output Boundary for External Terminals Unit:0.01
Control
mode
VF VFPG SVC FOCPG TQCPG
Factory setting: 0.00
Settings 0.00~+-60.00Hz
 When output frequency is higher than Pr.02-33, it will activate the multi-function
terminal (Pr.02-11 to Pr.02-14 is set to 29).
 When output frequency is lower than Pr.02-33, it will activate the multi-function terminal
(Pr.02-11 to Pr.02-14 is set to 30).
