Delta VFD-VE - Brake Delay Time

Chapter 4 Parameters
4-91
02-11~14=3
02-11~14=4
Fcmd=60Hz
02-19=10Hz
02-20=2Hz
02-21=40Hz
02-22=2Hz
H
38Hz
40Hz
42Hz
10Hz
12Hz
8Hz
T

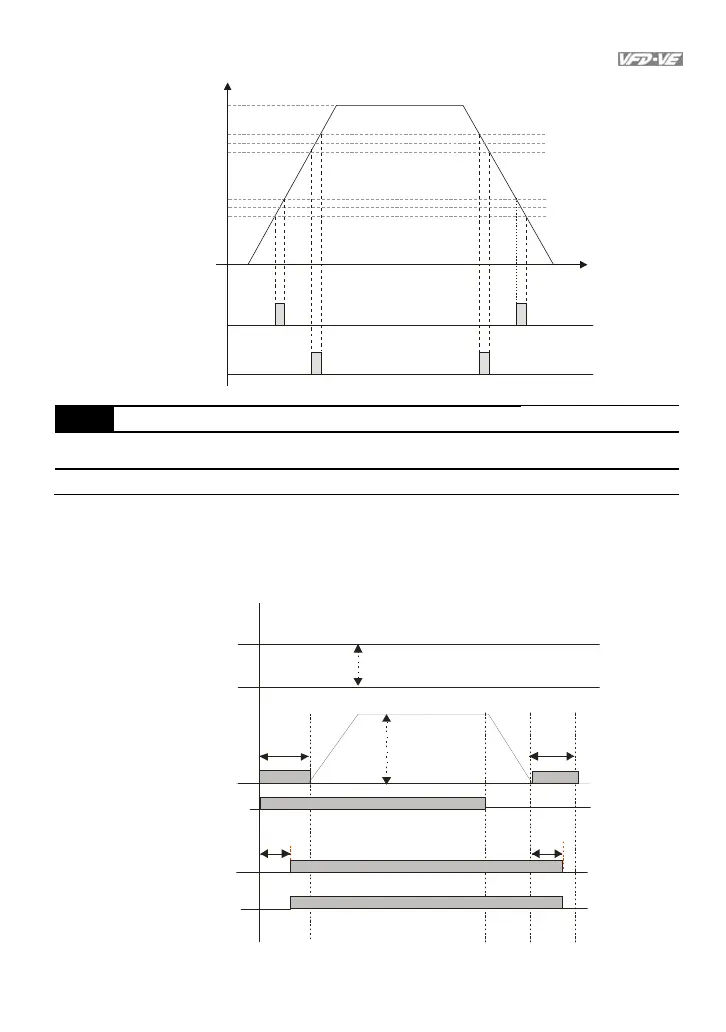

02-31 Brake Delay Time Unit:0.001
Control
mode
VF VFPG SVC FOCPG TQCPG
Factory setting: 0.000
Settings 0.000~65.000 Sec
 When the AC motor drive runs after Pr.02-31 delay time, the corresponding multi-
function output terminal (12: mechanical brake release) will be ON. It is recommended
to use this function with DC brake.
A
B=A
Output
frequency
DC br ake
DC br ake
07 -0 2
DC br ake
time during
star t -up
07 -0 3
DC br ake
time during
st op pi ng
Mul t i- f unc ti on o utpu t
(me cha ni cal br ake re le ase )
Pr.02-11 to 02-14=12
Mec han ic al bra ke
02-31 brake delay time
bounce time of mechanical brake
RUN/STOP
RUN STOP
br ake d
release
br ake d
frequency
command
