Chapter 4 Parameters
4-148
When it is set to 1, 3 or 4, the current line speed will be saved into Pr.08-41 via analog
and pulse command. When it is set to 2, it can change the setting of Pr.08-41 (current
line speed) via communication.
When it is set to 3 or 4, pulse signal needs to be connected to PG2 of the PG card and
then set the PG type by Pr.10-15.
When it is set to 3, it needs to use with Pr.08-40.

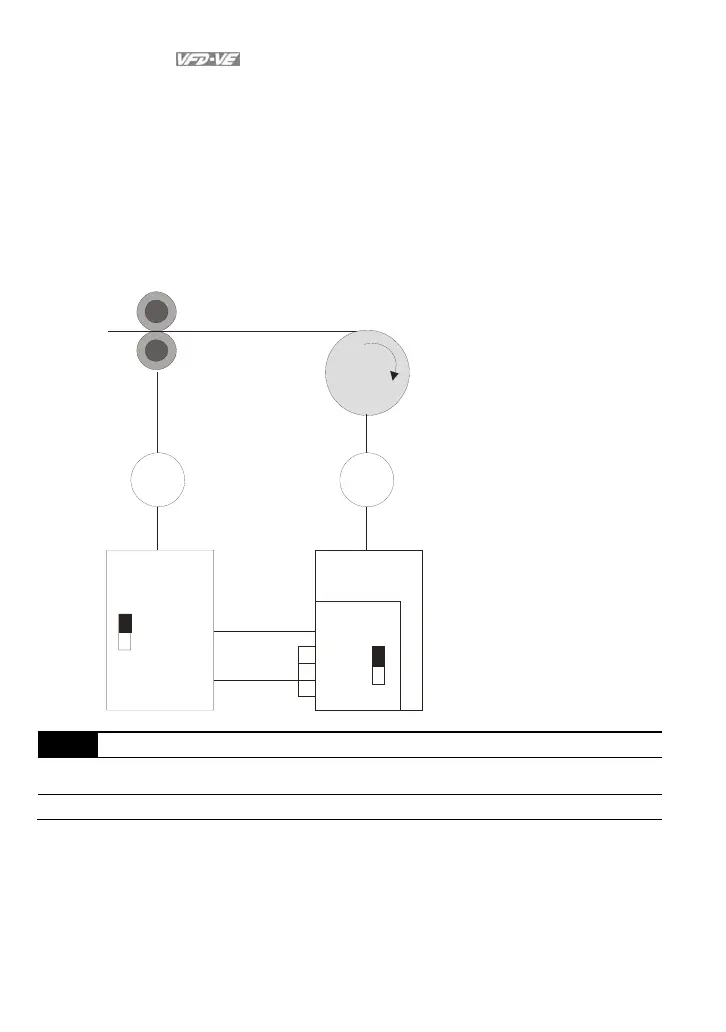

When it is set to 4, Pr.02-18 setting needs to be set to the DFM output value of previous
driver as shown in the following before setting Pr.08-38.
TP
DFM
DFM
(02-18)
DCM
TP
AB2
A2
/A2
B2
/B2
DCM
PG 2
motor motor
Driver 1
Driver 2
the setting of Pr,02-18 of motor 2
= the setting of Pr.02-18 of motor 1
Pr.10-15 of motor 2
should be set to 3 or 4
Wind
pitch roller
08-38 Max. Line Speed Unit: 0.1
Control
mode
VF VFPG SVC FOCPG TQCPG
Factory Setting: 1000.0
Settings 0.0 to 3000.0 m/min
In tension closed-loop and open-loop mode, the max. line speed is the reel line speed of
the pitch roller that corresponds to the max. frequency.
In closed-loop of line speed, setting by the mechanism requirement.
