Chapter 4 Parameters
4-157
08-82 Tension Taper Unit: 1
Control
mode
TQCPG
Factory Setting: 0
Settings 0~100%
When Pr.08-81 is set to 0, Pr.08-82 setting can be changed by inputting the digital
keypad, HMI page plan, text panel (PLC product: TP series) via communication.
When Pr.08-81 is set to 1 and one of Pr.03-00~03-02 is set to 17, Pr.08-82 is used to
display the tension taper only.

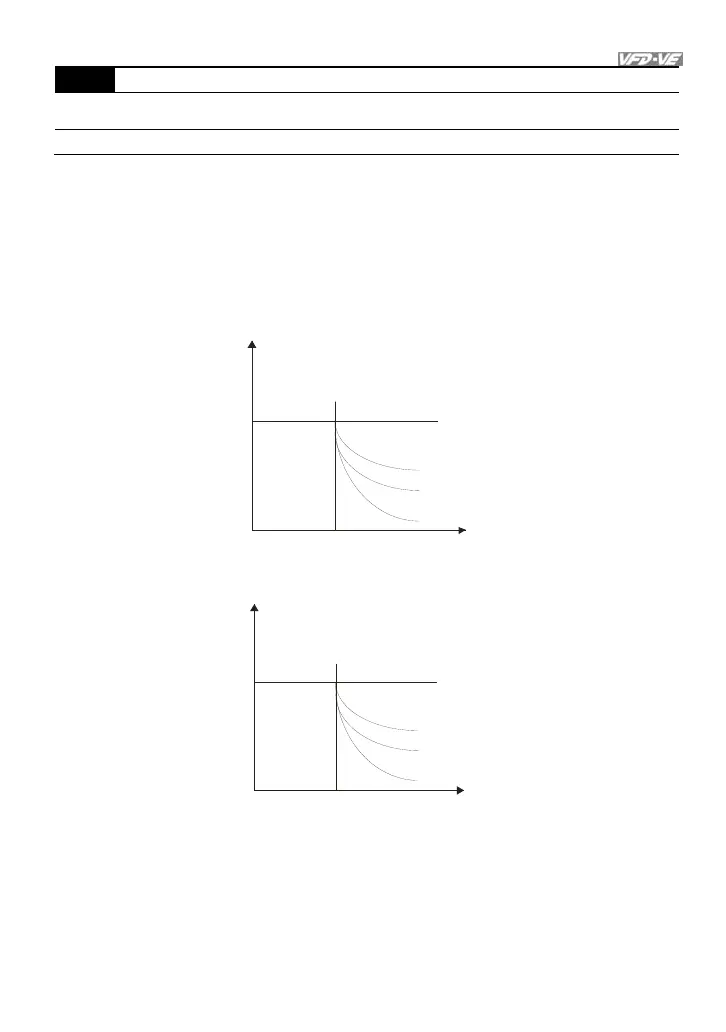

During the rewind process, the tension setting should be decreased by the increased
reel to rewind the material successfully.
A
C
B
tension taper
A>B>C
actual tension outpu
tension
setting
tension
taper=0
current reel
empty reel
The reel control is shown as follows.
A
C
B
tension taper
A>B>C
actual tension output
tension
setting
tension
taper=0
current reel
max. reel
