Chapter 2 Installation and Wiring
2-4

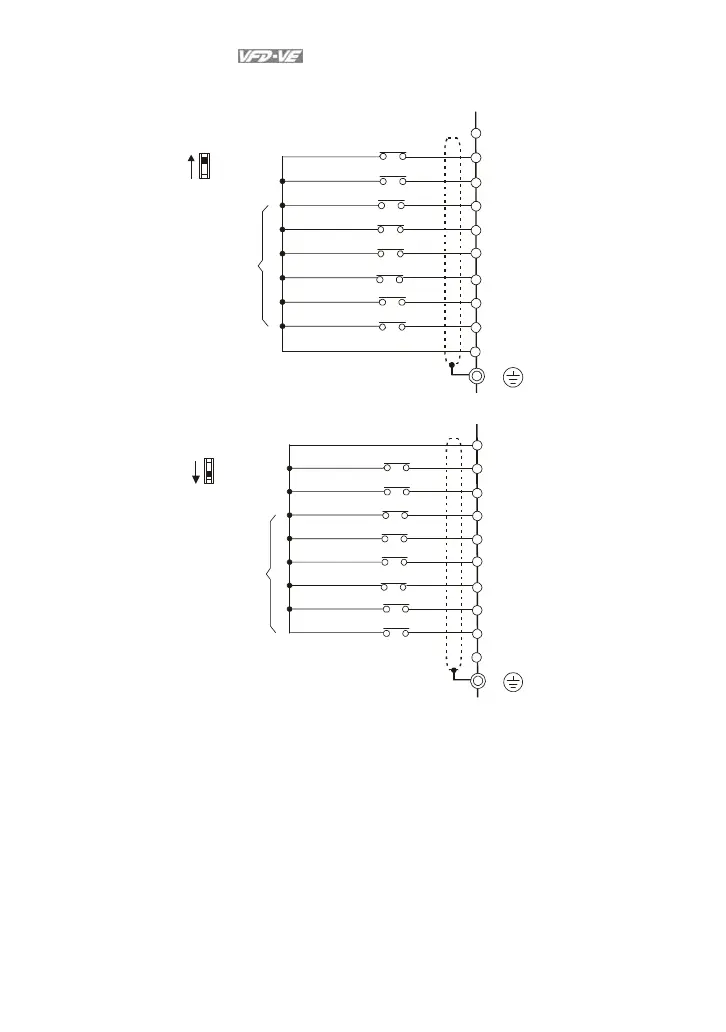

Figure 3 Wiring for SINK(NPN) mode and SOURCE(PNP) mode
*Don't apply the mains voltage directly
to above terminals.
FWD/STOP
REV/STOP
Multi-step1
Multi-step2
Multi-step3
Multi-step4
+24V
MI1
MI2
MI3
MI4
MI5
MI6
Factory
setting
SINK/NPN Mode
FWD
REV
No Function
No Function
Digital Signal Common
DCM
Sink
Source
SW1
E
*Don't apply the mains voltage directly
to above terminals.
FWD/STOP
REV/STOP
Multi-step1
Multi-step2
Multi-step3
Multi-step4
+24V
MI1
MI2
MI3
MI4
MI5
MI6
Factory
setting
SOURCE/PNP Mode
FWD
REV
No Function
No Function
DCM
E
Sink
Source
SW1
