Delta VFD-VE - Emergency Stop (EF) & Forced Stop Selection

Chapter 4 Parameters
4-134

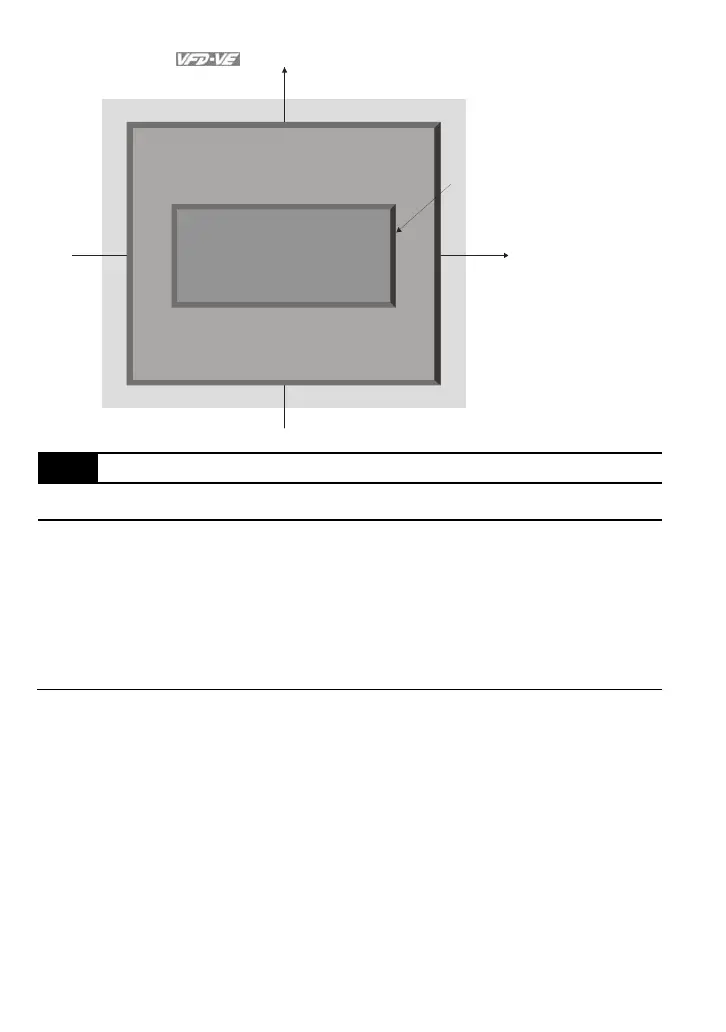

Po sitive
torque
Nega tive
torque
frequency command
06-1 2 current limit
06-1 2 current limit
06-1 2 current limit 06-12 current limit
Reverse motor mode
Forward regenera tive mode
Forward motor mode
Reverse ref enerative mode
The level o f torque limit will b e
the min. valu e of following three values
1. torque limit o f Pr.07-3 2 to Pr.07-35
2. Torque limit of externa l analog termina ls
(AVI, ACI and AUI)
3. Pr.06-12 curre nt limit
External analog terminals
Pr.03-00~02
7: positive torque limit
10: positive/n egative torque limit
9: regenerative t orque limit
Exte rnal analog terminals
Pr.03-00~02
7: positive torque limit
10: positive/negative torque limit
Exte rnal analog terminals
Pr.03-00~03-0 2
8: negative torque limit
10: positive/negative torqu e limit
Exte rnal analog terminals
Pr.03-00~03-02
8: negative torque limit
10: positive/negative torque limit
Pr.07-35
Reverse regenerative
torque limit
Pr.07-32
Forward motor
torque limit
Pr.07-33
Forward regenera tive
torque limit
Pr.07-34
Reverse motor
torque limit
Quadrant I
Quadrant II
Quadrant III
Quadrant IV
07-36
Emergency Stop (EF) & Forced Stop Selection
Control
mode
VF VFPG SVC FOCPG TQCPG
Factory Setting: 0
Settings 0 Coast stop
1 By deceleration Time 1
2 By deceleration Time 2
3 By deceleration Time 3
4 By deceleration Time 4
5 System Deceleration
6 Automatic Deceleration
 When the multi-function input terminal is set to 10 or 18 and it is ON, the AC motor drive
will be operated by Pr.07-36.
