7-7
Chapter 7

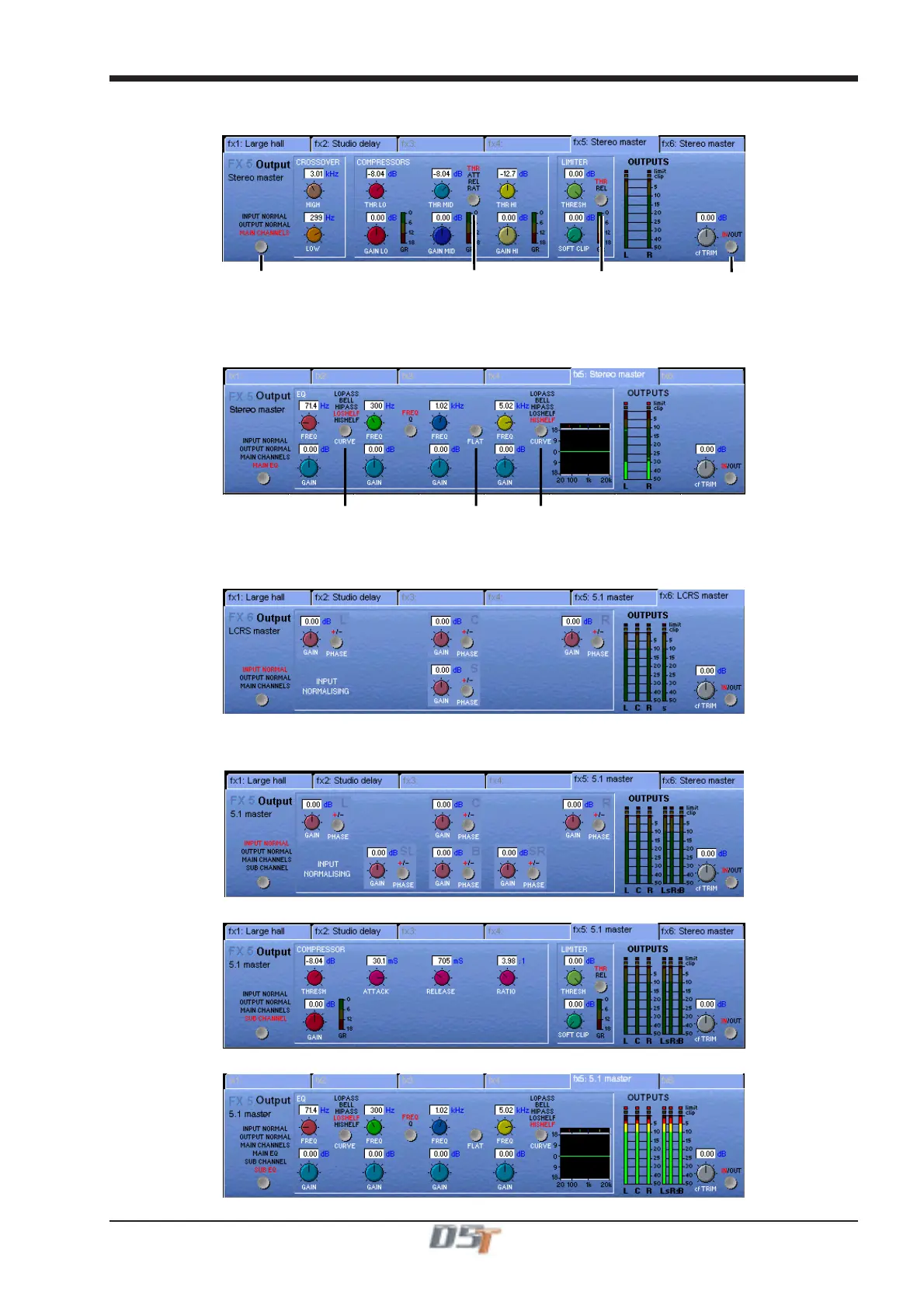

Main Channels Dynamics
Provides Crossover adjustment, 3 band compression and Limiting.
Click here to change
parameter view
Clickheretoview
Threshold
Attack
Release
Clickheretoview
Limiter
Threshold or Release
Processing In/Ou
Main EQ
Provides 4 Band EQ with adjustable Filter Types on Bands 1 and 4.
Click here to change
Band 1 Filter Type
Click here to change
Band 4 Filter Type
Set EQ Flat
LCRS Master
The controls for an LCRS Master are the same as stereo (See previous section) but the Input and Output Normalising panels allow
separate Gain and Phase control for each of the four signals.
5.1 Master
A 5.1 Master provides separate Input and Output Normalising for each of the six signals and in addition the Sub Channel has its own
Compressor, Limiter and 4 Band EQ.
Sub Channel Dynamics
Sub Channel EQ
To Next Page
