Worksurface controls are as follows:
Delay Time
Delay In/Out
Compressor
Threshold
Compressor
In/Out
Output Routin
g
Label
Trim
Solo
Mute
These channels provide Trim, Delay up to 510ms, Compression and 6 Band Parametric EQ.
3.3.3 Routing Matrix Groups To Outputs ...................................
Matrix Group signals may be routed to a pre EQ, pre fader direct output and/or a post fader output
To Route a Matrix Group to a post fader Output:

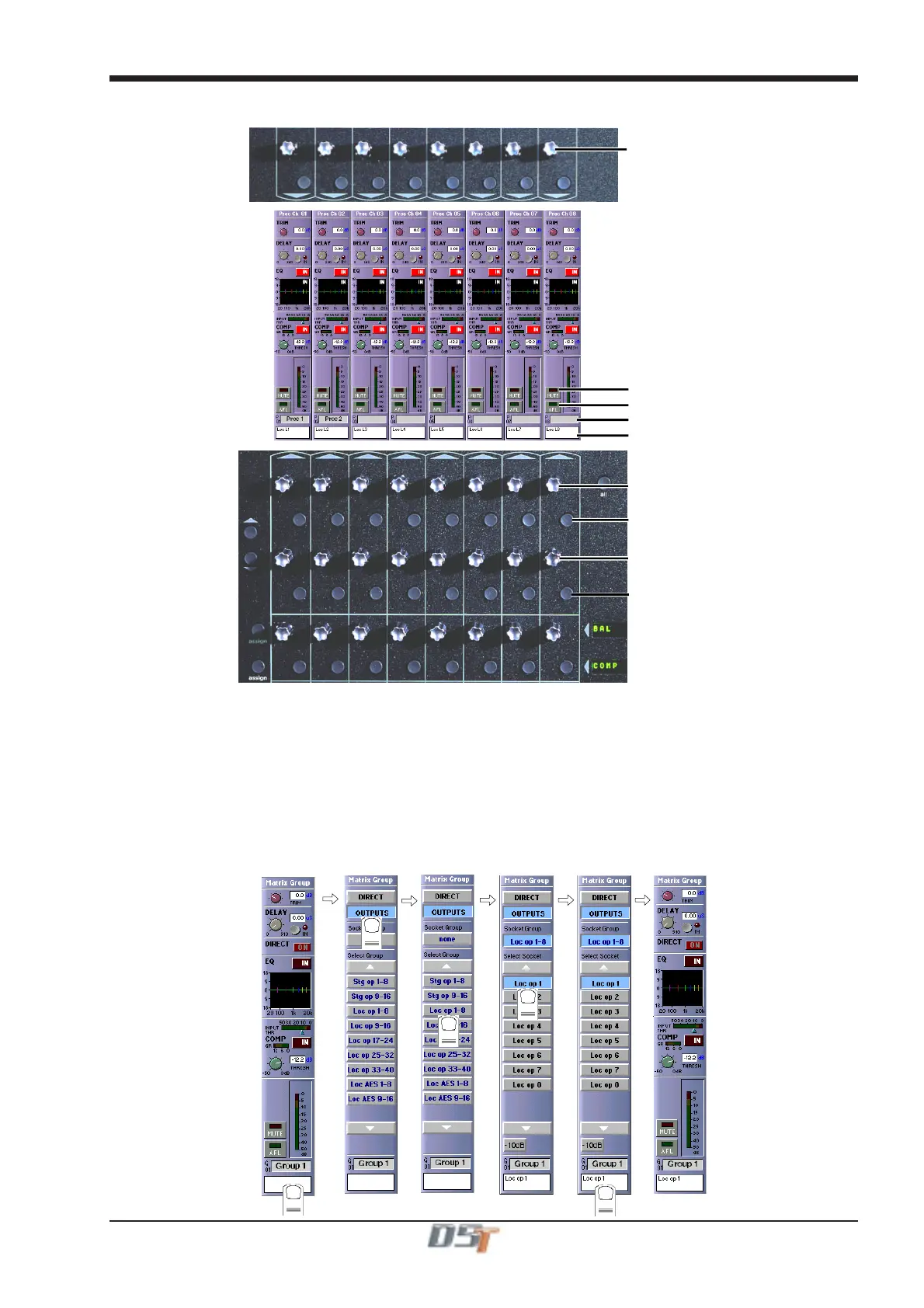

1) Touch the bottom of the matrix group screen to open the routing panel.
2) Touch the Outputs button if it is not already highlighted.
3) Touch the name of the Socket Group to view the output socket names.
4) Touch the Output Socket button(s) that you require eg. Loc op 1, Loc op 2 etc.
5) Touch the bottom of the input screen again to return to the standard view.
2
3
4
1 5
