Port Configuration
3-121
Configuring Rate Limits
This function allows the network manager to control the maximum rate for traffic
transmitted or received on an interface. Rate limiting is configured on interfaces at
the edge of a network to limit traffic into or out of the switch. Packets that exceed the
acceptable amount of traffic are dropped.
Rate limiting can be applied to individual ports or trunks. When an interface is
configured with this feature, the traffic rate will be monitored by the hardware to
verify conformity. Non-conforming traffic is dropped, conforming traffic is forwarded
without any changes.
Rate Limit Configuration
Use the rate limit configuration pages to apply rate limiting.
Command Usage
Input and output rate limits can be enabled or disabled for individual interfaces.
Command Attribute
• Rate Limit Status– Enables or disables the rate limit (Default: Disabled)
• Rate Limit - Sets the rate limit level. (Range: 64 - 1000000 kilobits per second)
Web - Click Port, Rate Limit, Input/Output Port/Trunk Configuration. Set the Input
Rate Limit Status or Output Rate Limit Status, then set the rate limit for the individual
interfaces, and click Apply.

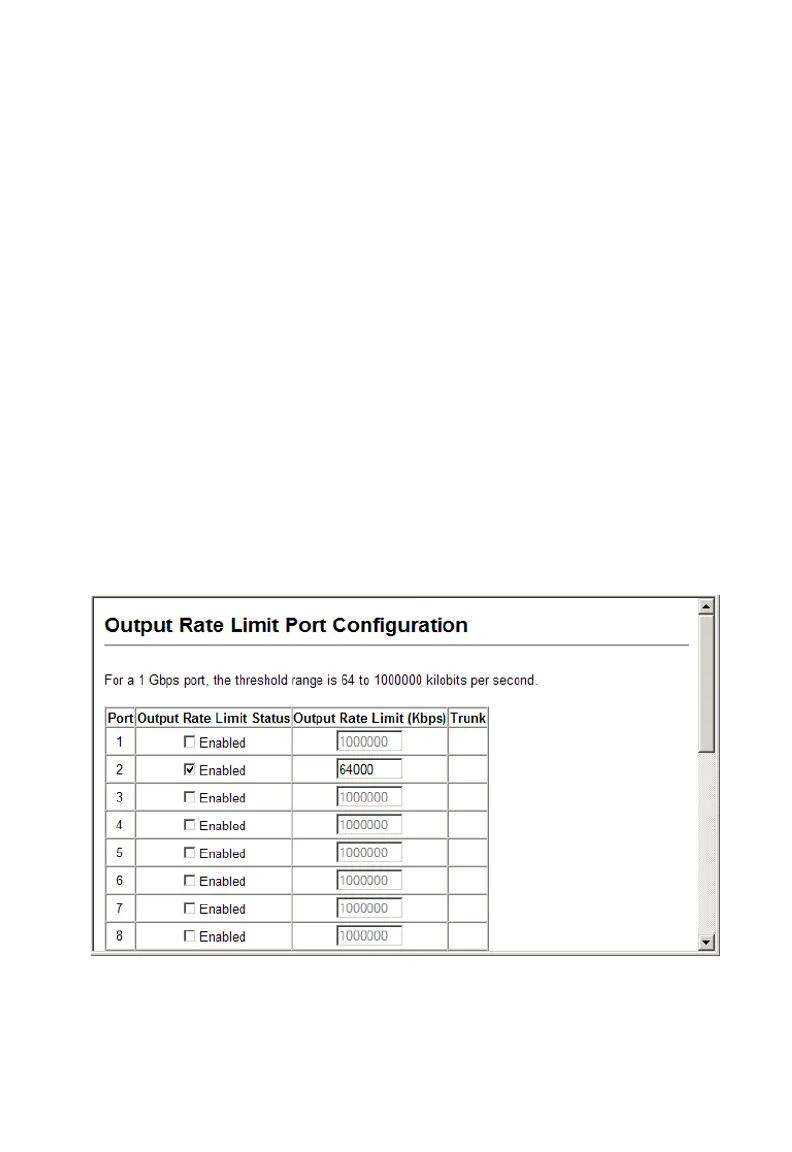

Figure 3-64 Configuring Port Rate Limits
